The Triggers
56

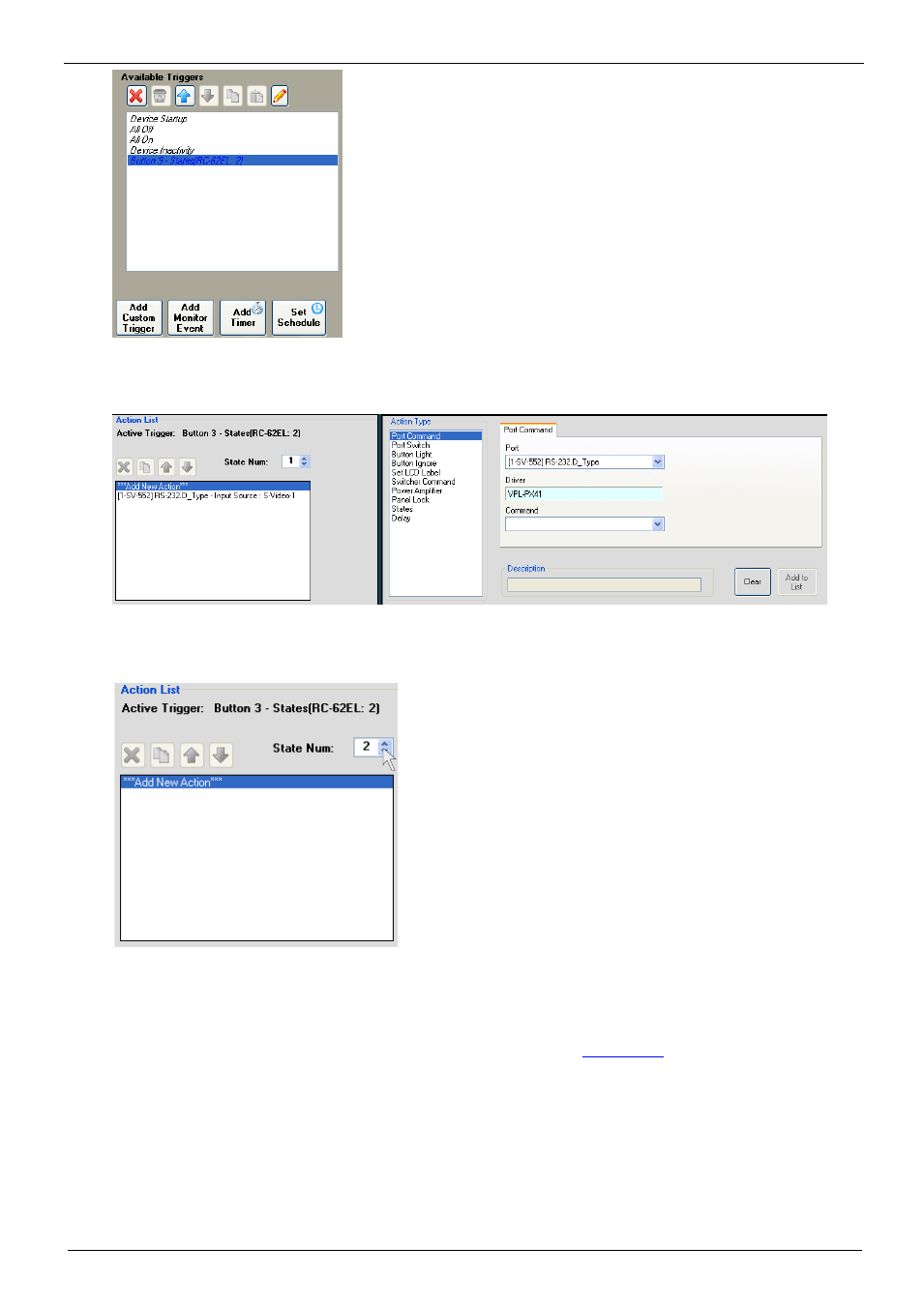

Figure 120: The States Action Type
2. Set the command list for each state:
Figure 121: Setting the State Action List
3. Set the next state number and define the action list for that state.
Figure 122: Setting the State Action List
Once the state action lists are defined, you can activate a state via the States action type in other
triggers.
For example, when pressing button 1 of the virtual device (see
•
Relay 1 on the SV-552 opens
•
Button 3 blinks slowly
•
The state 2 of button 3 on the RC-62EL is selected, determining the action list that will be
carried out the next time button 3 on RC-62EL is pressed
•
The system waits 10 seconds
