The Triggers
33
6.4 Adding a Custom Trigger
A custom trigger, when added to the Available Triggers list, can be included in the schedule (see
Section 6.5
To add a Custom Trigger:
) or activated from the Web pages (in Site-CTRL-compatible room controllers).
1. Click the Add Custom Trigger button (in the Triggers area).
The following window appears:

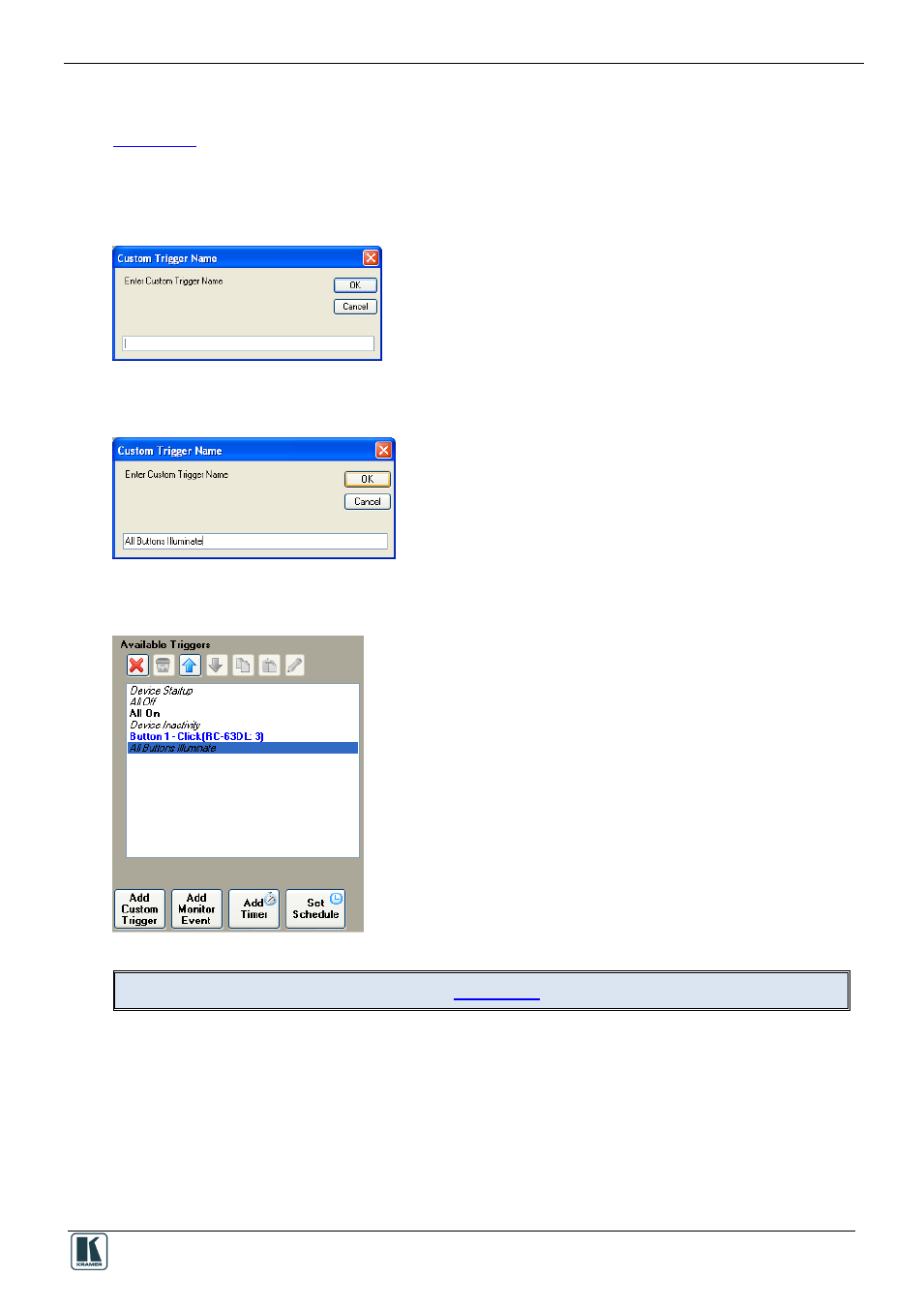

Figure 56: The Trigger Name Window
2. Type the name of the custom trigger, and then click OK:
Figure 57: Writing a Trigger Name
The new trigger (in black) is added to the Available Triggers list:
Figure 58: The New Custom Trigger in the Available Triggers List
You can now add actions to this trigger (see Section 6.2 ).
