CLR−...
Festo CLR−... 0912d English 31
8 Operation
Warning
Uncontrolled moving masses can cause injury to people or damage to objects in
the area of movement (squashed fingers, eye injuries).
S Make sure that nobody can place his/her hand in the positioning range of the
moveable mass (e.g. by means of a protective screen). It must not be
possible to touch the CLR−... until the mass has come to a complete stand.
S Make sure that the swivel frequencies in continuous operation do not exceed
the specified values (see chapter Technical specifications").
9 Care and maintenance
Cleaning:
S If necessary, clean the exterior of the CLR−... with a soft cloth.
The following cleaning agents are permitted:
ć soap suds (max. +60 °C)
ć petroleum ether
ć any non−abrasive media.
10 Dismantling and repairs
For all dismantling and repair work:
S Exhaust the CLR−...

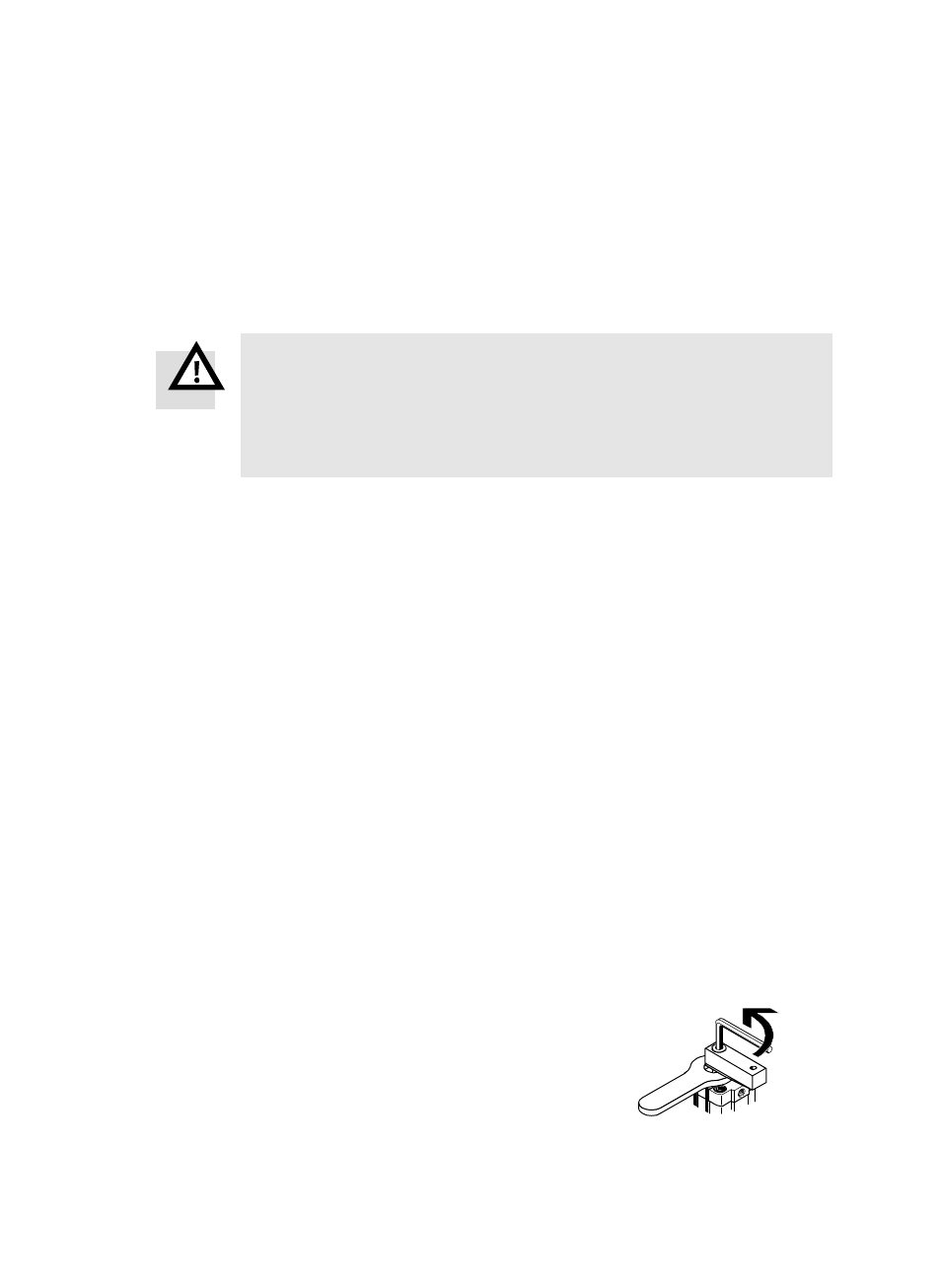

Removing the clamping finger
1. Fix the piston rod at spanner flat 6 with a
spanner wrench (note the maximum perĆ
mitted torque on the guide sleeve, see
chapter Mechanical installation").
2. Unscrew the fastening screw one turn out
of the clamping finger.
Fig. 21
