Fitting the CLR−...

S

Place the CLR−... so that no objects project into the swivel range of the
clamping finger.

S

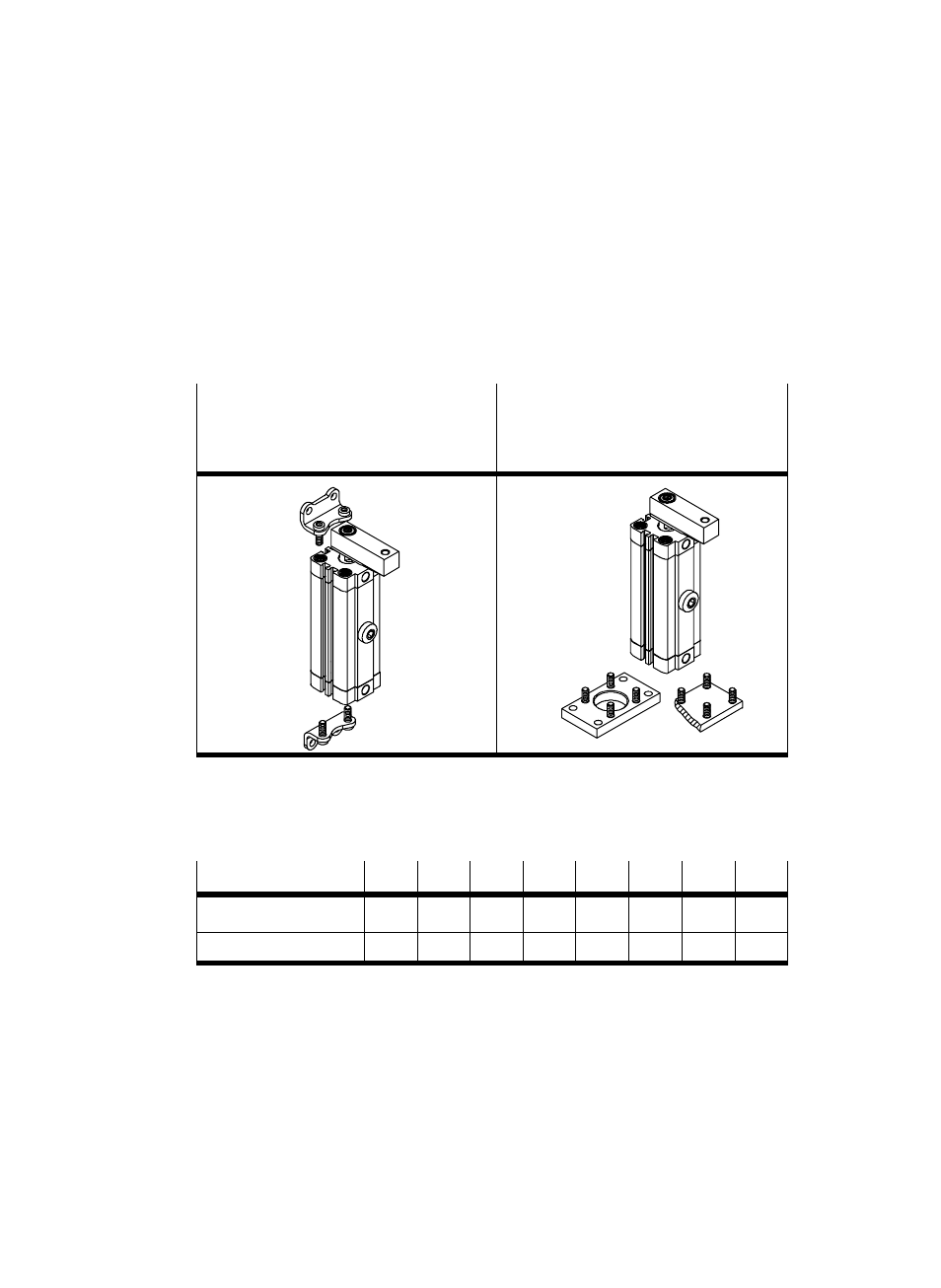

Select one of the fastening possibilities listed in the following table.

Double screw connector with foot
fastening type HNA−... in the threaded
holes of the cover screws

With four screws in the threaded
holes of the cover screws:

Ĉ

with flange mounting type FNC−...

Ĉ

direct fastening

Fig. 13

The different product sizes have connector threads of the following design and
with the following tightening torques:

CLR−...

12

16

20

25

32

40

50

63

Connecting thread

M4

M4

M5

M5

M6

M6

M8

M8

Tightening torque [Nm]

2.5

2.5

3

3

6

6

11

11

Fig. 14

S

Tighten the screws evenly.
