CLR−...
Festo CLR−... 0912d English 30
Relevant points Explanation

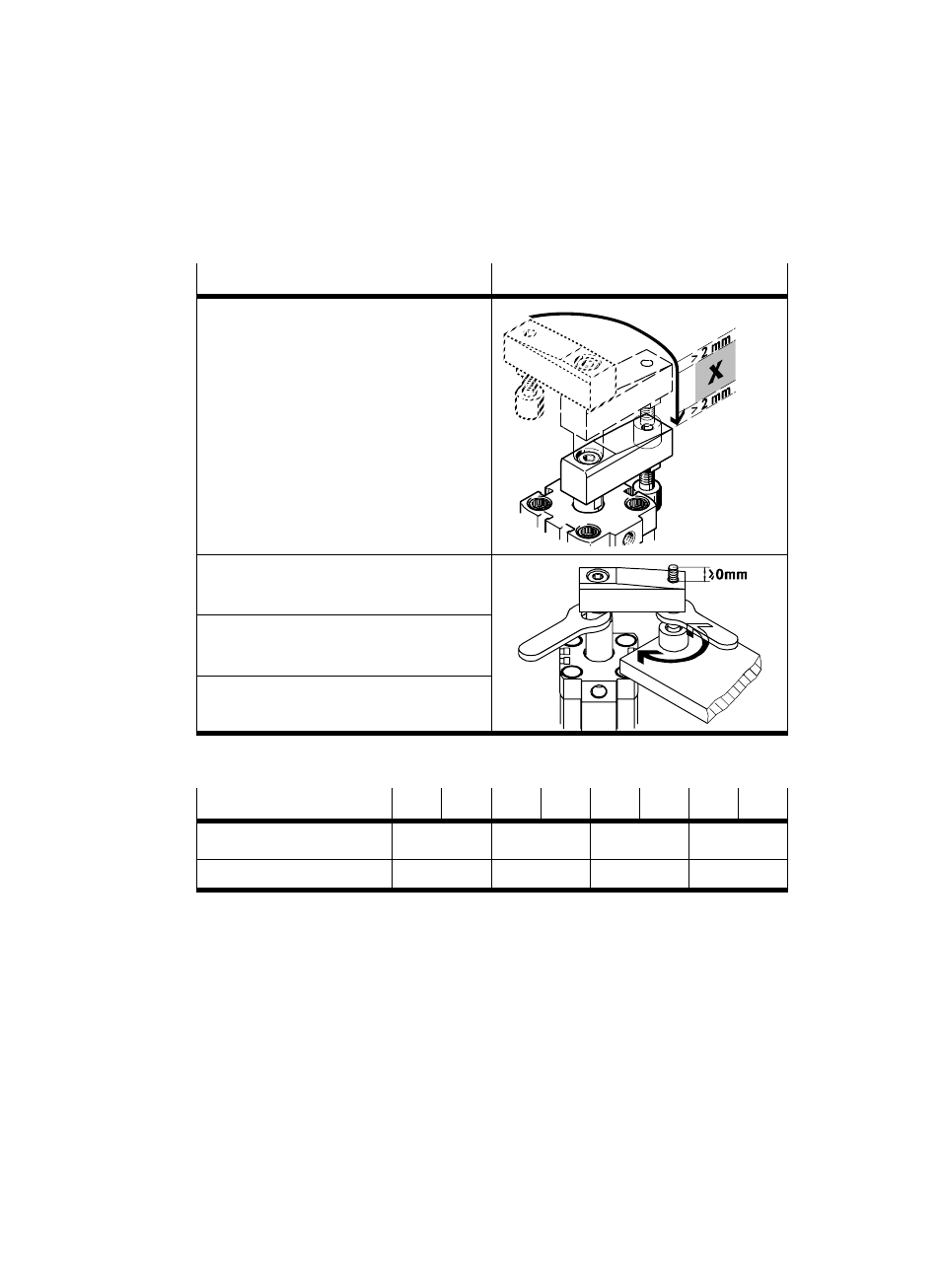

The permitted clamping range X is
maintained. This includes a safety
distance from the swivel movement and
from the end of the stroke. The safety
distance is in each case approx. 2 mm
Key to the following diagram:
a) end of swivel movement
b) start of reliable clamping
b) end of reliable clamping
d) end position (no clamping)
(b)
(a)
(c)
(d)
The maximum screw−out length is flush
with the clamping finger.
The lock nut of the clamping screw must
be locked with Loctite 24333.
The tightening torque of the locking nut is
maintained (see following table).
Fig. 19
CLR−... 12 16 20 25 32 40 50 63
Connecting thread M4 M6 M8 M10
Tightening torque [Nm] 3 12 24 47
Fig. 20
Commissioning ć test run
S Start a test run as follows:
ć at first with slow positioning movements
ć then under conditions of use.
S During the test run check that the CLR−... clamps reliably.
If the test run is without faults:
S End the test run.
