Festo CLR−... 0912d English 29

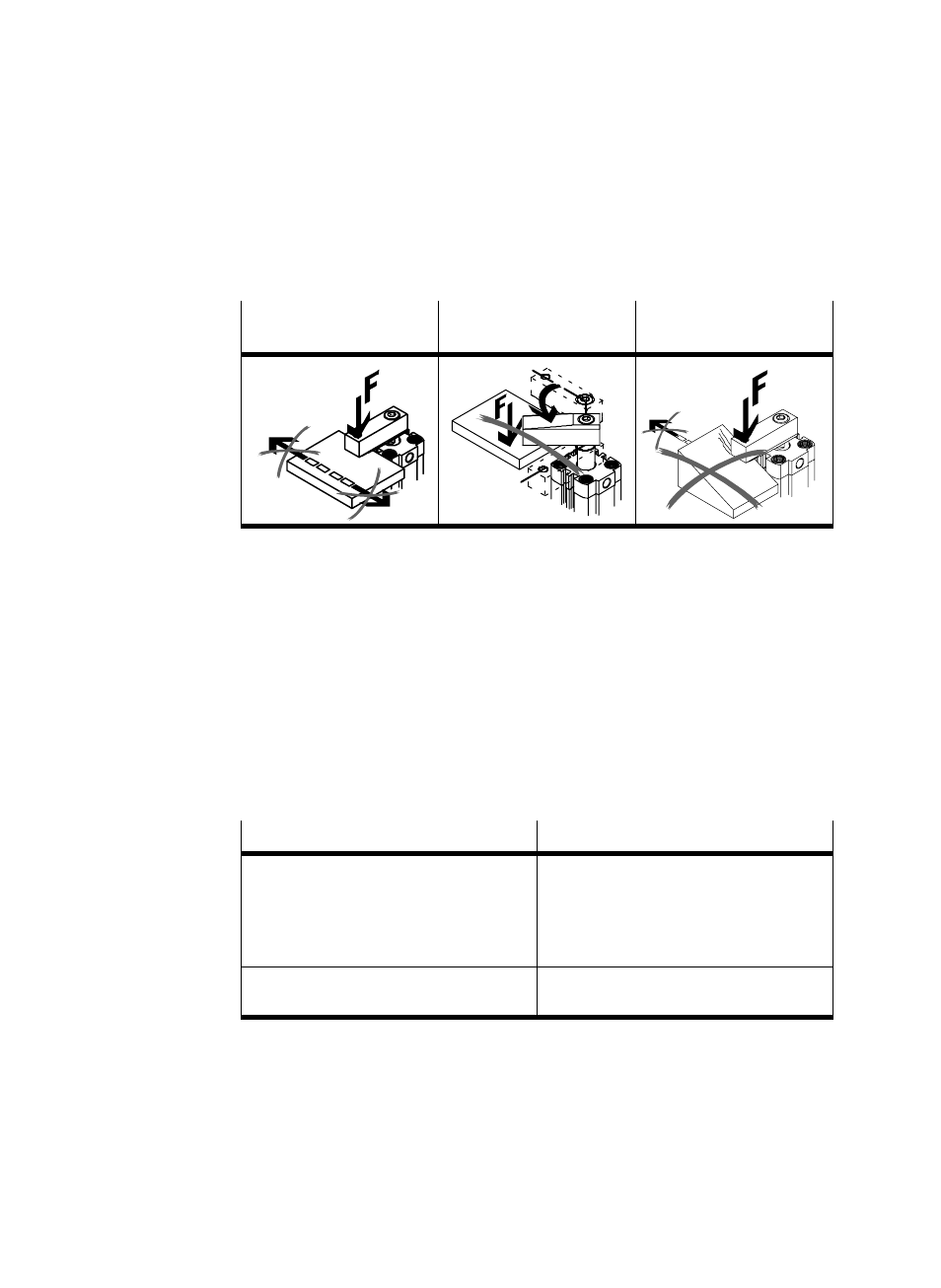

The clamping procedures listed in the following table are not permitted:
Clamping moving parts Clamping within the
swivel procedure Clamping on a sloping
surface
Fig. 18
S Make sure that the maximum permitted loadings are not exceeded.
If set correctly, the clamping finger must reach the end position safely without
knocking hard against it.
Commissioning ć setting the clamping screw
S Adjust the clamping screw on the clamping finger. When doing this note the
following points:
Relevant points Explanation
Always counter hold on the clamping
finger (e.g. with a spanner wrench at
spanner flat
6Ă).
At no time may there be a torque on the
guide sleeve (a spanner sliding from the
spanner flat can, under circumstances,
damage the internal guide contour of the
guide sleeve).
Adjustments may only be undertaken
when the device is at a stand.
