CLR−...
Festo CLR−... 0912d English 23
6 Installation
Mechanical installation
Please note
When the fastening screw of the clamping
finger is clamped and released, high torques
can damage the guide sleeve in the cylinder
(e.g. by tightening or counter holding).
S When fitting or removing the clamping
finger, always use a spanner wrench for
counter holding (see Fitting the
clamping finger").
S Treat the clamping finger with great care.
The following loadings are not permitted:
ć heavy loads with a long lever arm
ć sudden knocks
ć high torques (especially on the guide
sleeve).
S Make sure that the maximum permitted loadings are observed during
operation:
ć the tightening torques when fitting the clamping fingers
ć the values for force F and torque M (see chapter Technical specifications").
Fitting the clamping finger
Please note
Torques which affect the internal guide sleeve will damage the CLR−...
S Fit the clamping finger first, before fitting the clamping cylinder into the
system. In this way you will prevent torques rom affecting the internal guide
sleeve.

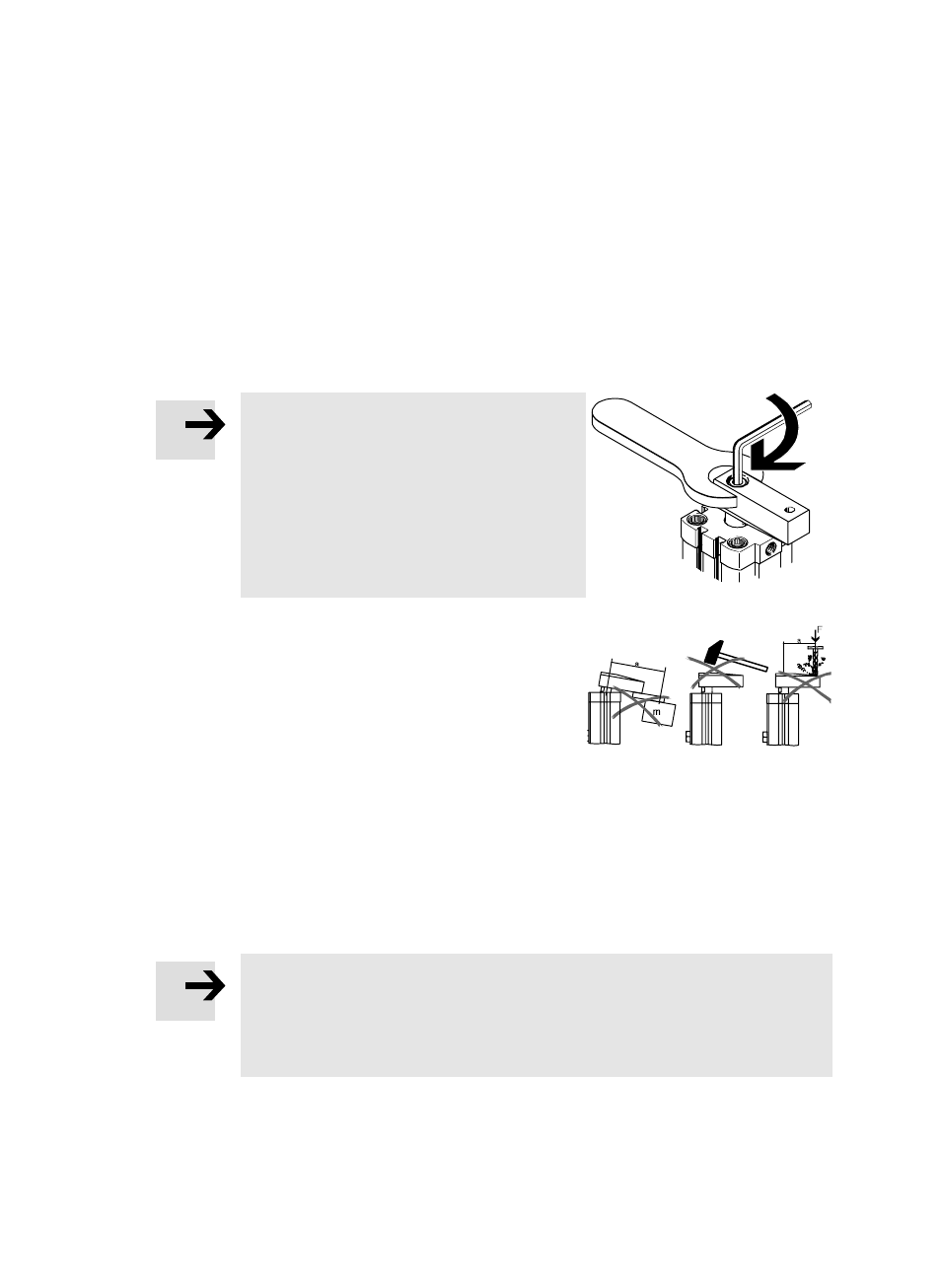

Fig. 5
Fig. 6
