An Example of Survey Planning in DelphNav Using Delph Nav
66 CHAPTER 1: Using DelphNav™ (Survey Control Panel) 2004.06.28

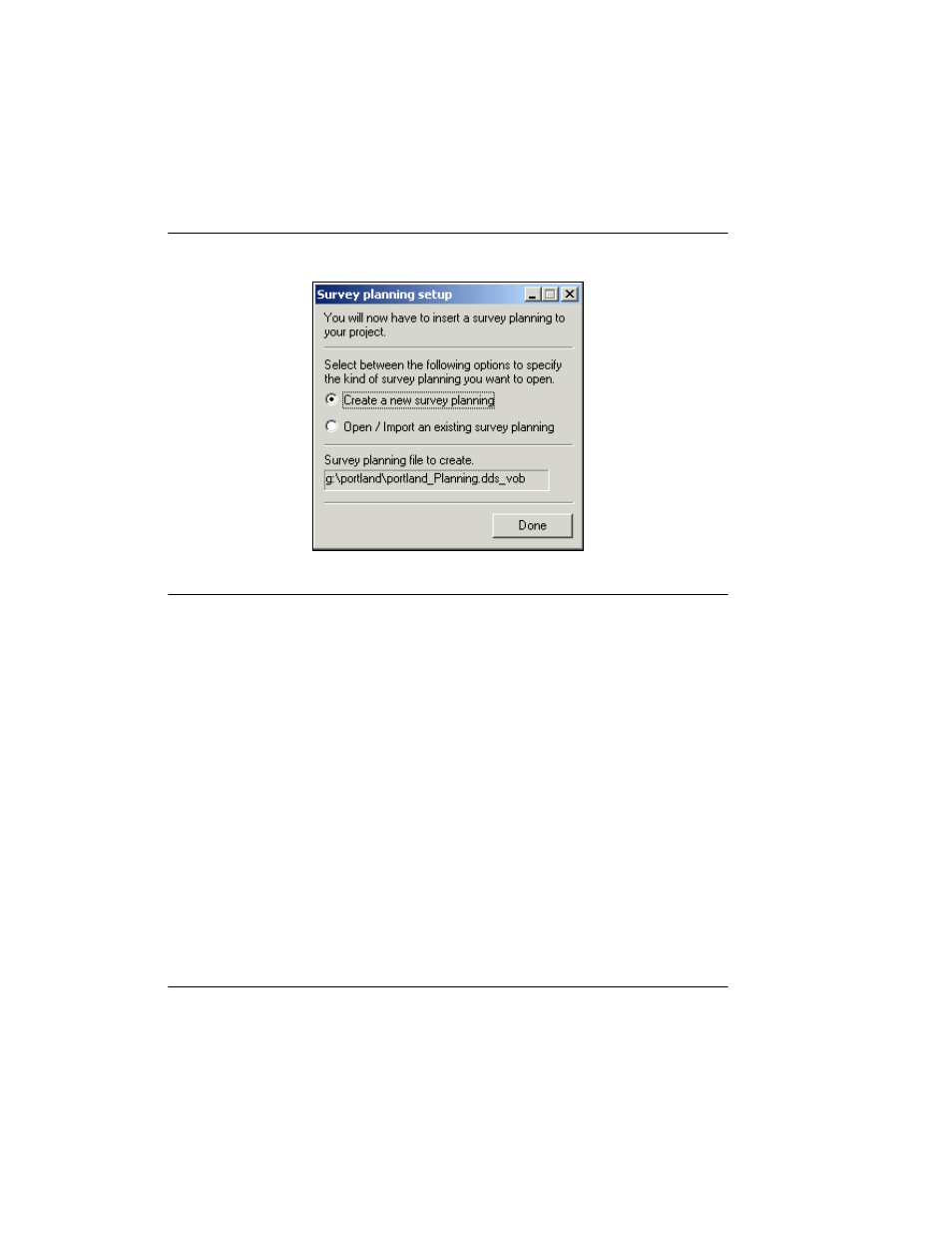

FIGURE 42. Survey planning dialog prompting for insertion
Note that by default you are opening a new survey planning file, and that the name of
the file selected for you in this case is called:
g:\portland\portland_Planning.dds_vob .
The survey planning file is created in the same folder where the project file
(portland.dmp
) is stored.
3. Click Done .
As mentioned in the preliminary information appearing in ‘Making or Using a Survey
Plan’ on page 14, if you are creating a new survey plan, DelphNav prompts you to
choose a projection for your project when you click
Done . If you are opening or
importing an existing survey plan, DelphNav prompts you to select a file when you
enable the
Open/Import an existing survey planning radio button.
4. From the next dialog click on Import objects from an ASCII file and select the TXT
file containing the line data.
