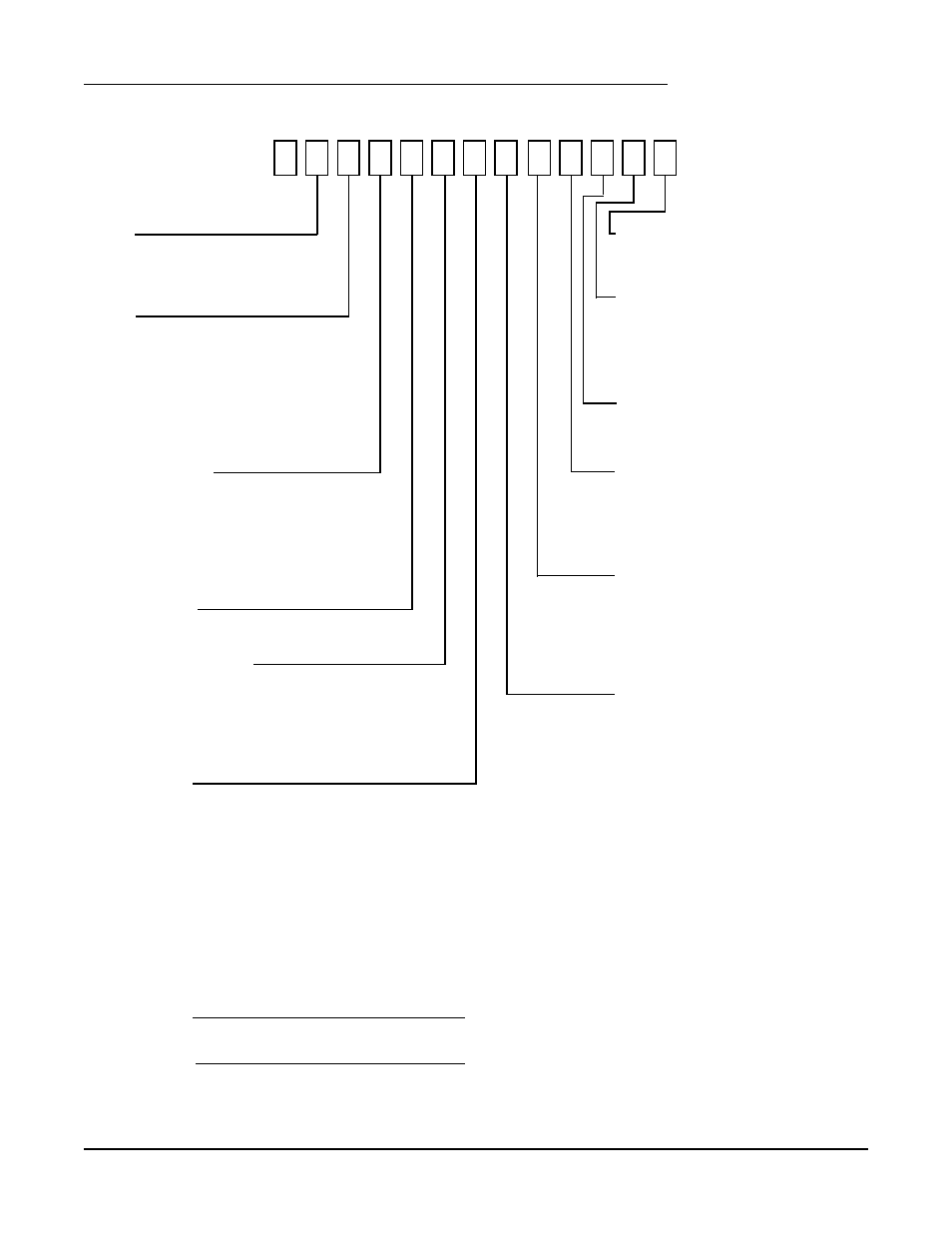

1.3 ORDER MATRIX/MODEL NUMBER
TYPE
1 Recorder Only
2 Controller
3 Profiler
PENS
1 One Trend Pen, One Color*
2 Two Trend Pens, Two Colors*
3 Three Trend Pens, Three Colors*
4 Four Trend Pens, Four Colors
5 One Trend Pen, Four Colors
6 Two Trend Pens, Four Colors
7 Three Trend Pens, Four Colors
UNIVERSAL INPUTS
1 One Input
2 Two Inputs
3 Three Inputs
4 Four Inputs
6 Six Inputs
8 Eight Inputs
DIGITAL INPUTS
0 None
RELAY OUTPUTS (SPDT)**
0 None
2 Two Relays
4 Four Relays
6 Six Relays
8 Eight Relays
SSR OUTPUTS**
0 None
2 Two SSRDs
4 Four SSRDs
6 Six SSRDs
8 Eight SSRDs
CASE TYPE & MOUNTING
1 NEMA3 Panel Mount
2 NEMA4 Panel Mount
ENCLOSURE OPTIONS
1 Glass Window
2 Glass Window & Door Lock
3 Plastic Window
4 Plastic Window & Door Lock
MEMORY CARD/COMMS
0 None
1 RS-485/232 Comms
MATH/TOTALIZER
0 None
1 Math
2 Totalizer
3 Math & Totalizer
TRANSMITTER POWER SUPPLY
0 None
1 One Trans. Power Supply
2 Two Trans. Power Supply
3 Three Trans. Power Supply
4 Four Trans. Power Supply
4-20mA OUTPUTS
0 None
1 One 4-20 mA Output Non-Isolated
2 Two 4-20 mA Outputs Non-Isolated
3 One 4-20 mA Output Isolated
4 Two 4-20 mA Outputs Isolated
5 Three 4-20 mA Outputs Isolated
6 Four 4-20 mA Outputs Isolated
9
* Pens/colors are added to the instrument in the following order: red, then green, then blue,
and then black.
** Total quantity of SPDT Relays and SSR Drivers must be less than or equal to eight.
