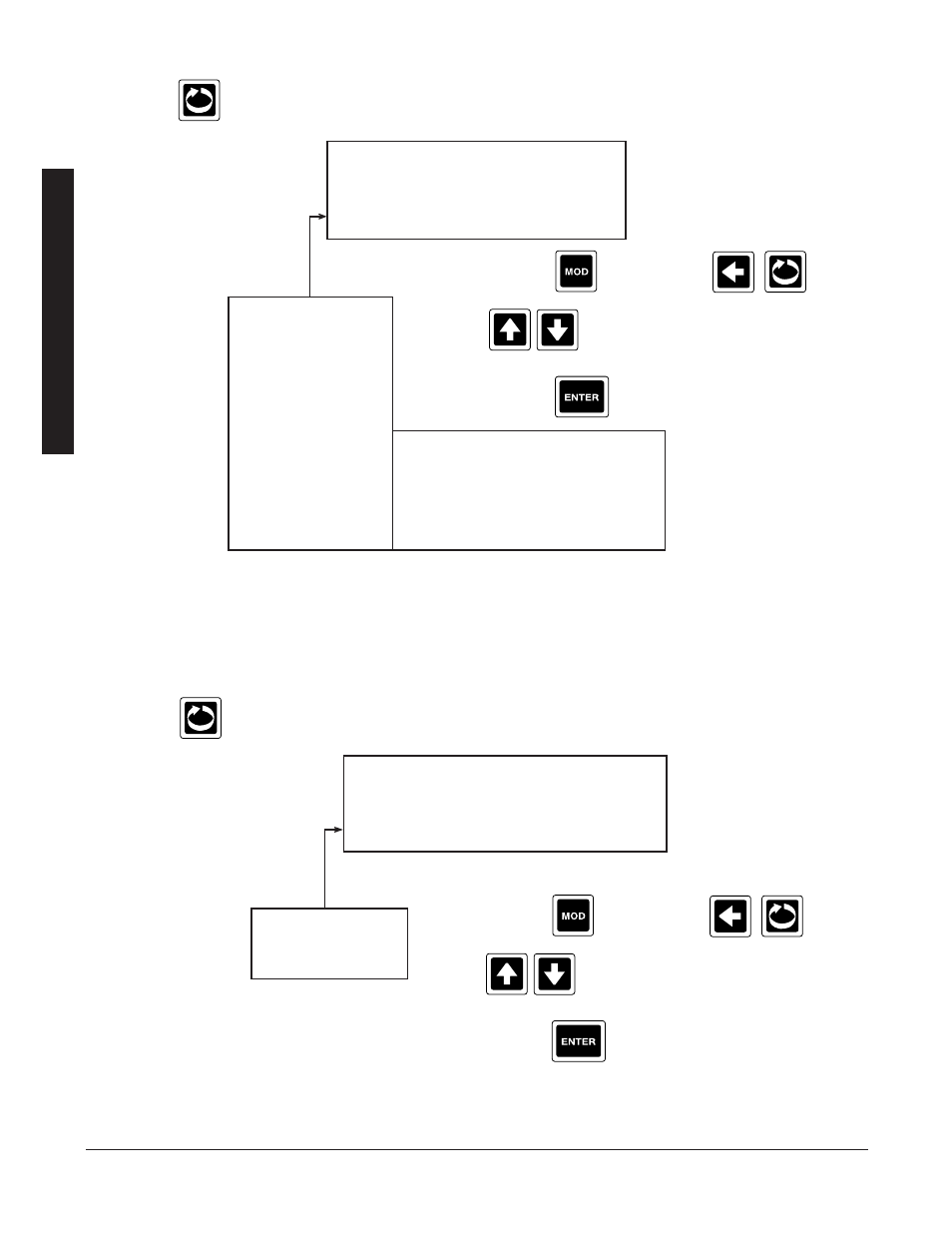

4. Press the to advance to the next parameter, INPUT VALUE.
If NONE USED was selected, no other prompts for Totalizer X will be seen. Refer back to step 1, page 4-
52.
5. Press the to advance to the next parameter, TIME BASE.
Press the to change, then ,
, as required to desired choice, then
press the .
Press the to change, then ,
, as required to desired choice, then
press the .
Tx TIME BASE
PER SEC
Selections
PER SEC PER MIN
PER HOUR PER DAY
PULSES
T
O
T
A
L
I
Z
E
R
S
Tx INPUT VALUE
NONE USED
Selections
NONE USED
IV1 IV2 IV3 IV4
IV5 IV6 IV7 IV8
PV1 PV2 PV3 PV4
DV1 DV2 DV3
DV4 DV5 DV6
DV7 DV8 DV9
DV10 DV11 DV12
CV1 CV2 CV3 CV4
CV5 CV6 CV7 CV8
CV9 CV10 CV11 CV12
TOTAL1 TOTAL2
TOTAL3 TOTAL4
SV1 SV2 SV3 SV4
Additional selections for use with controller option:
SP1 SP2 SP3 SP4
SP5 SP6 SP7 SP8
OUTPUT 11 OUTPUT12
OUTPUT 21 OUTPUT22
OUTPUT 31 OUTPUT32
OUTPUT 41 OUTPUT42
