Section 4
4-1
Section 4 - Configuration
Selections made in Configuration set up the recorder for operation. Not all sections are applicable for every
recorder. Before or during configuration of your recorder, it is recommended that the Software Reference/Record
Sheet (found at end of Section 3) be completely filled in.
4.1 ENTERING CONFIGURATION

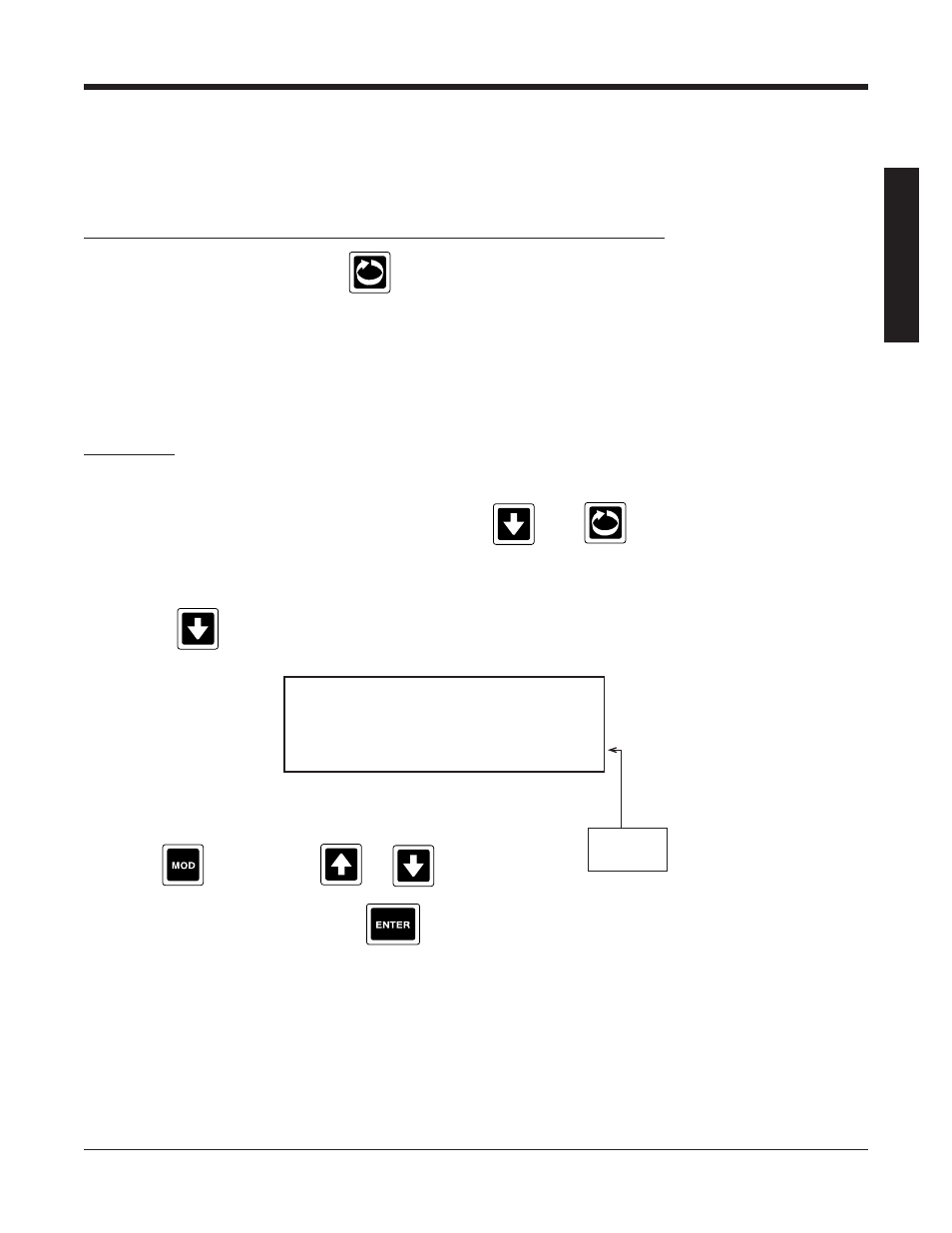

From the Normal Display, press the
until CONFIGURATION is seen in the lower display line. If PASS-
WORD appears in the lower display line, the correct “password” will need to be entered before access to CON-
FIGURATION is allowed. If CONFIGURATION is not displayed, then Configuration has been disabled. Refer to
Section 9, Enables and Passwords, for instructions to enable Configuration.
4.1.1 INPUTS
Input defines input types, ranges, units, scaling and display status for each of 1-8 inputs.
With CONFIGURATION in the lower display line, press the
then
until INPUTS appears in the lower
display line.
1. Press the
to display INPUT NUMBER.
Press the
to change, then
or
to desired input number, then press the
to store into memory.
I
N
P
U
T
S
INPUT NUMBER
1
Selections
1 - 8
