Operation
9499-040-93811 / 59537-1
Page 9 of 88
Pro-16
3. Operation
3.1 Front view

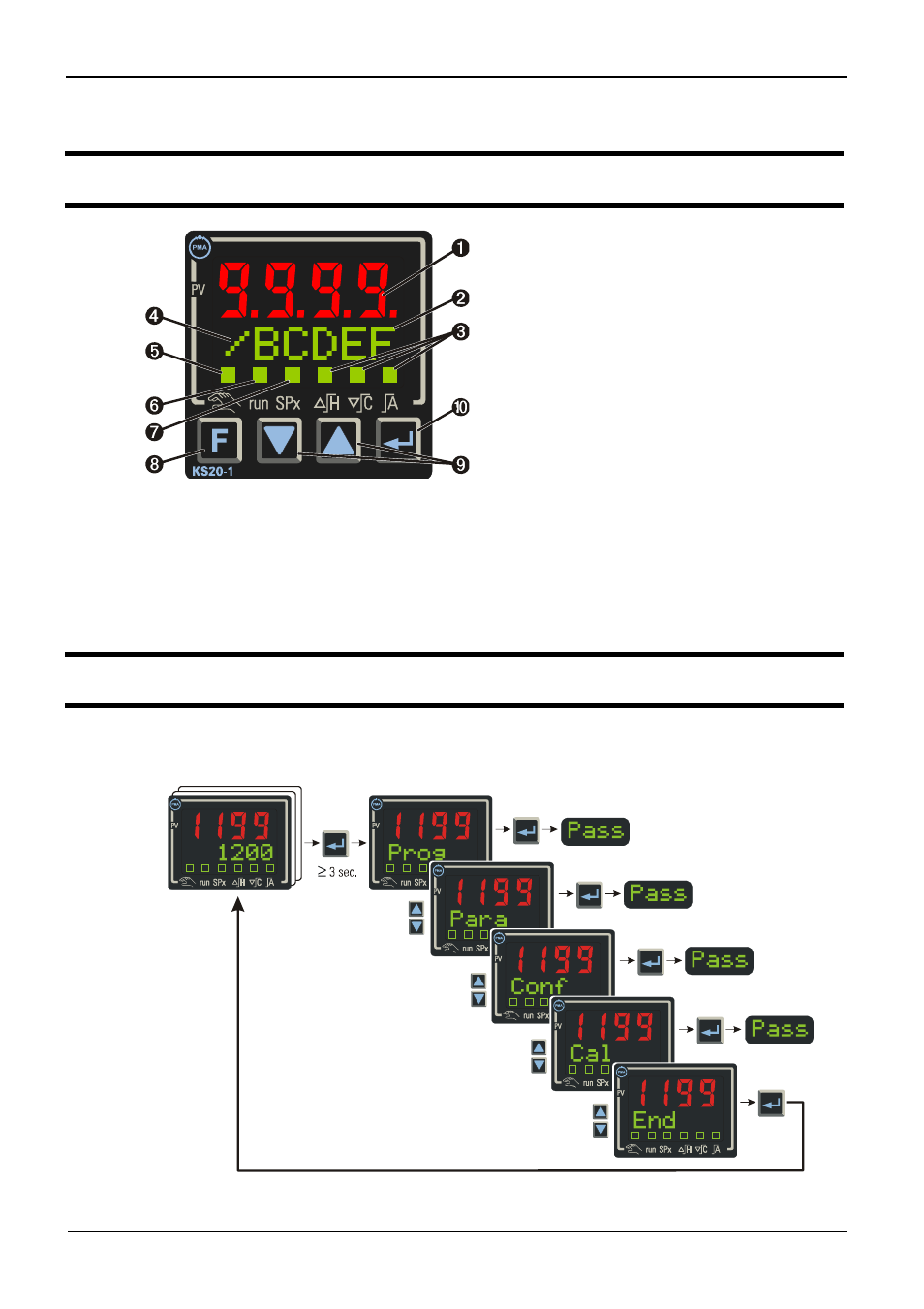

Fig. 5: Front view
1 Process value display
2 Set-point, controller output, parameter
3 Status of switching outputs
4 Gradient is active
5 Manual mode
6 Timer or programmer is running
7 Set-point SP.2 oder SP.e is effective
8 Function key
9 Changing the set-point or the controller
output value
0 Acknowledges alteration of a value or
shows the next parameter/value
In the upper display line, the process value is always displayed. At parameter,
configuration, calibration as well as extended operating level, the bottom display line
changes cyclically between parameter name and parameter value.
3.2 Operating structure
After supply voltage switch-on, the controller starts with the operating levels.
The controller status is as before power off.
Fig. 6: Complete operating structure (depending on configuration)
