4 programmer description – West Control Solutions Pro-16 User Manual
Page 68

Programmer
9499-040-93811 / 59537-1
Page 68 of 88
Pro-16

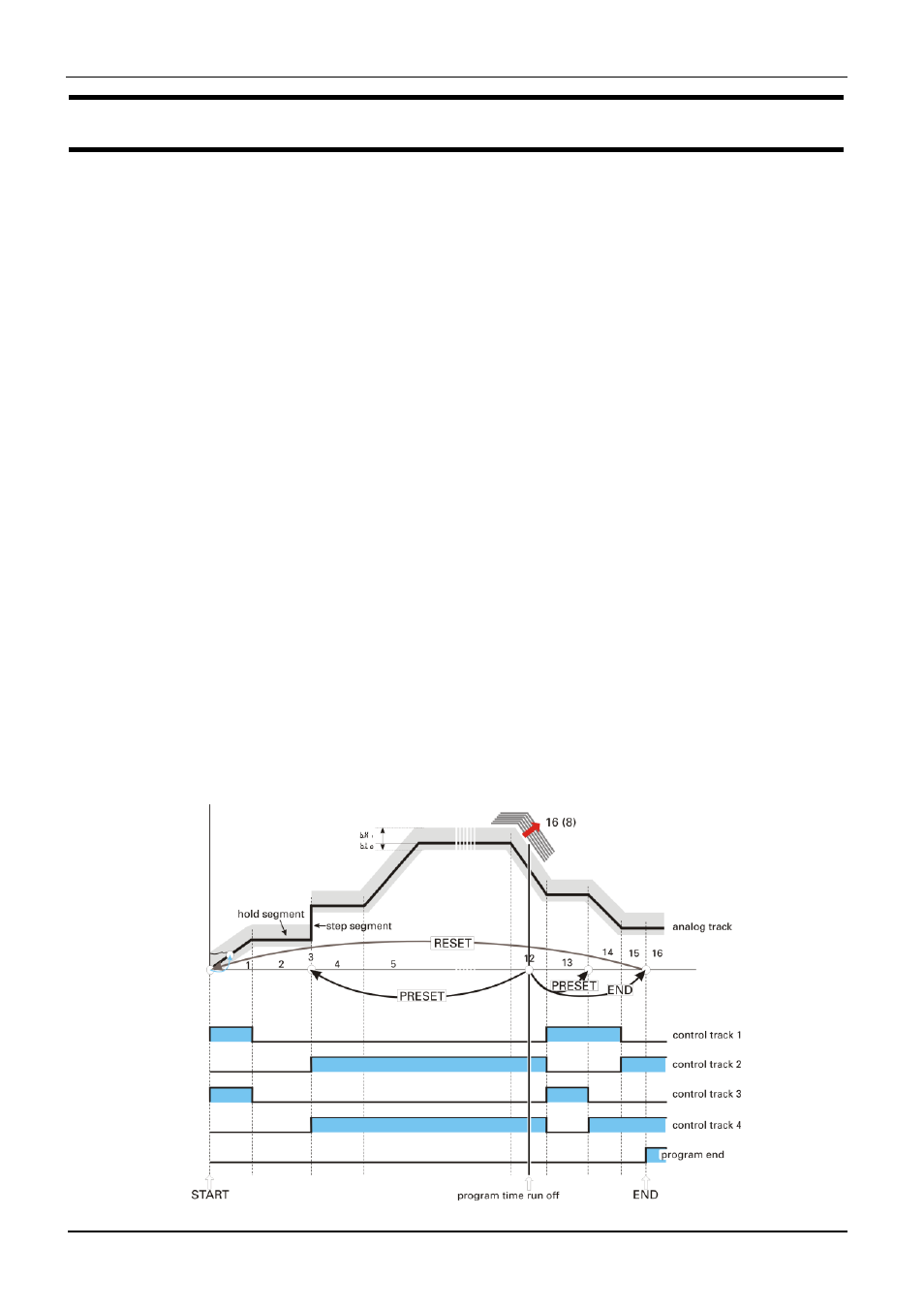

8.4 Programmer description
8.4.1
General
An overview of the most important features:
Programs:
16
Control outputs:
4
Segments:
16 per program
•
Segment types:
• ramp (set-point and time)
• ramp (set-point and gradient)
• hold segment (holding time)
• step segment (with alarm suppression)
• end segment
All segment types can be combined with ”Wait at the
end and call operator”
Time unit:
configurable in hours:minutes or
minutes:seconds
Maximum segment
duration:
9999 hours = 1 year 51 days
Maximum program
duration:
16 x 9999 hours = > 18 years
Gradient:
0,01°C/h ( /min) to 9999°C/h ( /min)
Program name:
8 characters, adjustable via BlueControl software
Bandwidth control: bandwidth high and low (
b.Lo,b.Hi
) limits definable for each
program
