9.4 Linearization
Linearization for input INP1
The "
Lin
" parameter is valid if the following condition is met:
S.tYP and
S.Lin
= 18 (Special linearization)
----
= 23 (KTY11-6)
----
= 30 (Current)
= 1: Special linearization
= 40 (Voltage)
= 1: Special linearization
Dependent of input type, the input signals are specified in μV,
[
, mA or Volt dependent of
input type.

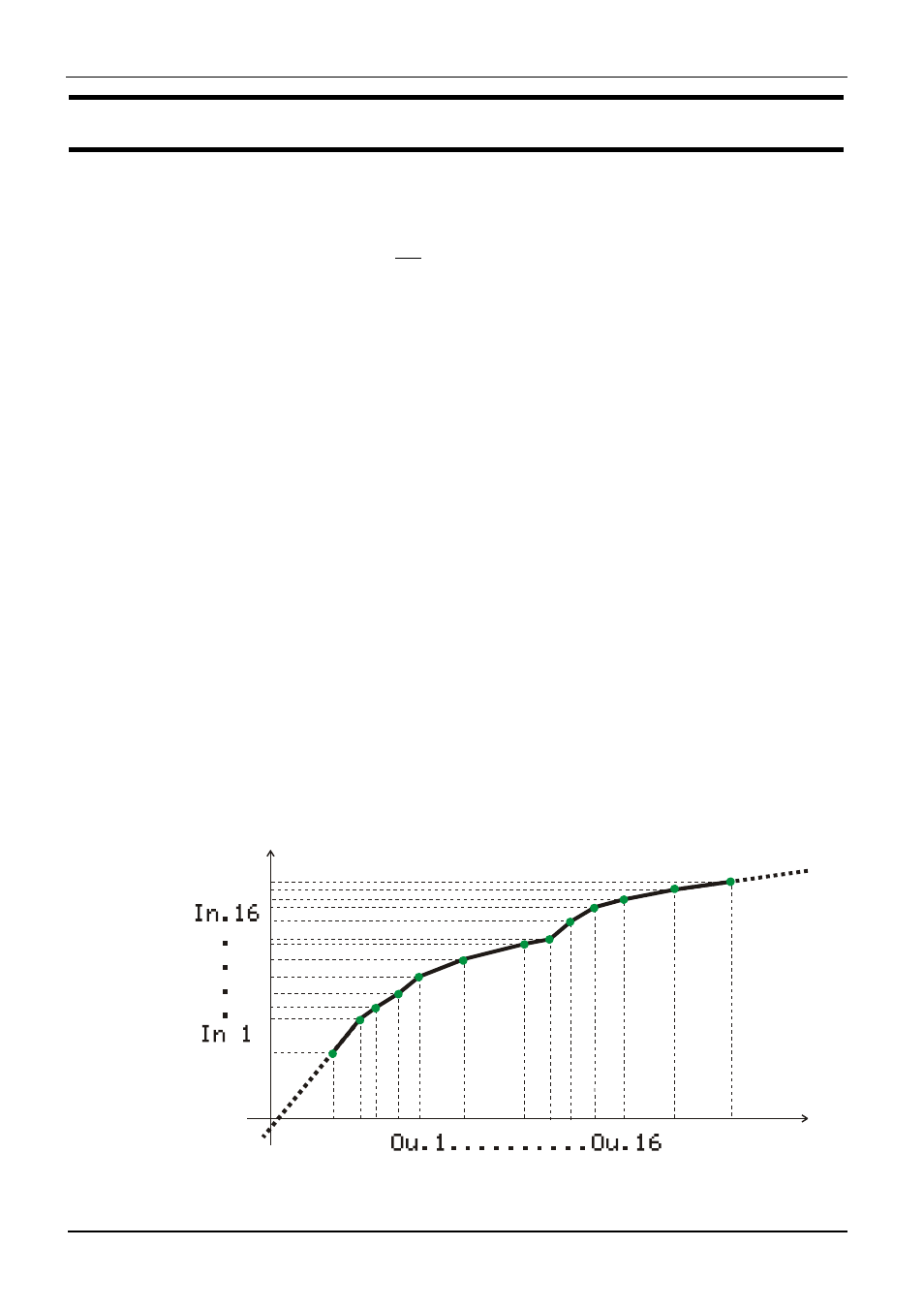

With up to 16 segment points, non-linear signals can be simulated or linearized. Every
segment point comprises an input (
In.1 … In.16) and an output (Ou.1 …
Ou.16). These segment points are interconnected automatically by means of straight
lines.
The straight line between the first two segments is extended downwards and the straight
line between the two largest segments is extended upwards.
I.e. a defined output value is also provided for each input value. When switching an
In.x
value to
OFF, all other ones are switched off. Condition for these configuration
parameters is an ascending order.
In.1
<
In.2
< ...<
In.16
und
Ou.1
<
Ou.2
...<
Ou.16
.
