Adjustment:

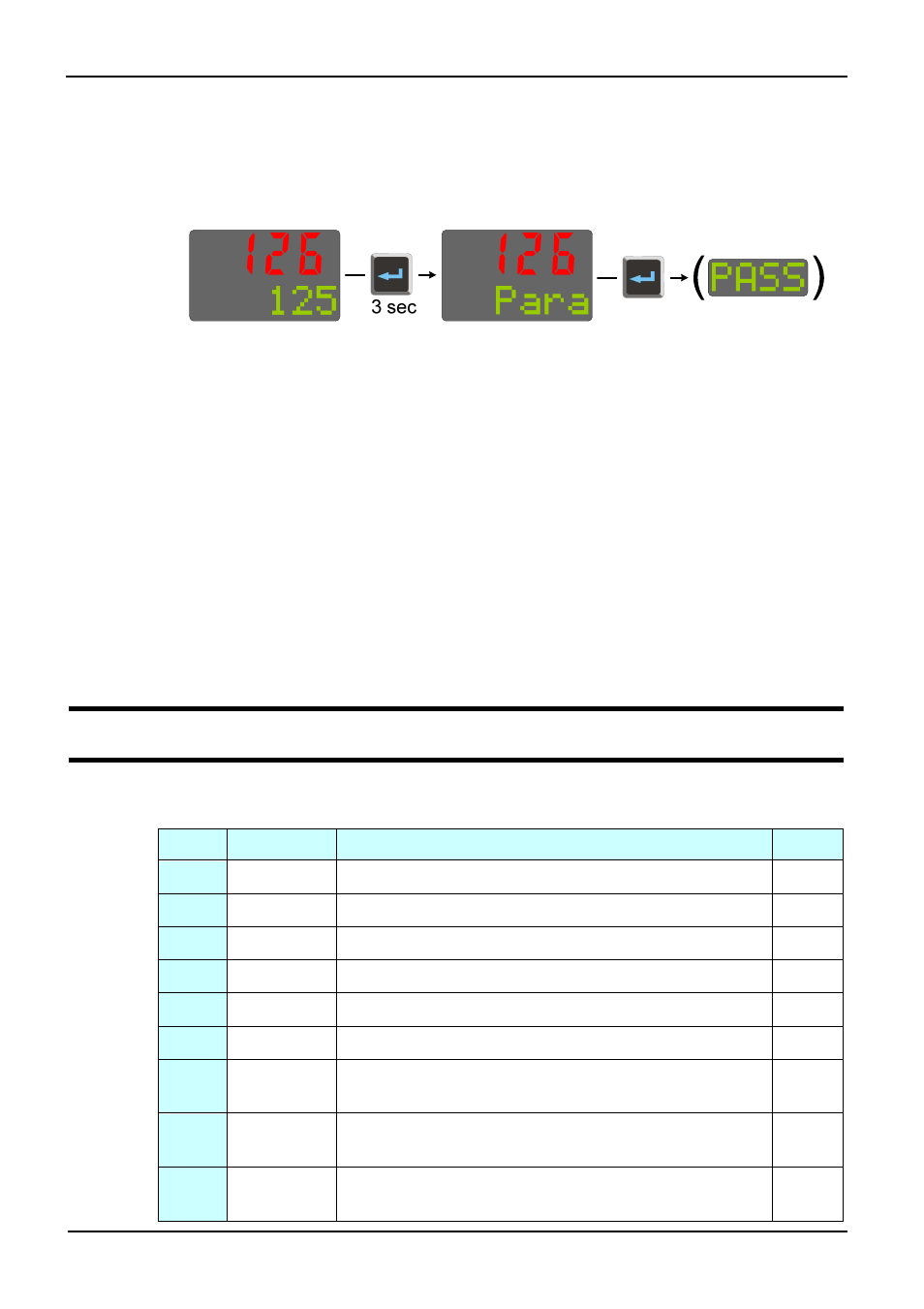

To access the parameter level, press the key Ù for 3 seconds and confirm using the
Ù -key subsequently. If the password function is activated, the prompt for the PASS is
displayed

The parameters can be adjusted using the ÌÈ - keys.

Press the Ù - key to change to the next parameter.

After the last parameter of a group, donE is displayed and followed by automatic
changing to the next group
g
Return to the beginning of a group, by pressing the Ù key for 3 sec.
g
Unless a key is pressed during 30 seconds, the controller returns to the process
value and setpoint display (Time Out = 30 sec. )
g
Resetting the configuration parameters to default
r chapter 86 (page 86)
5.2 Parameter
Cntr
Name Value range Description Default
Pb1 1...9999 1 Proportional band 1 (heating) in phys. dimensions (e.g. °C) 100
Pb2 1...9999 1 Proportional band 2 (cooling) in phys. dimensions (e.g. °C) 100
ti1 OFF/0,1...9999 Integral action time 1 (heating) [s] 180
ti2 OFF/0,1...9999 Integral action time 2 (cooling) [s] 180
td1 OFF/0,1...9999 Derivative action time 1 (heating) [s] 180
td2 OFF/0,1...9999 Derivative action time 2 (cooling) [s] 180
t1 0,4...9999 Minimal cycle time 1 (heating) [s]. The minimum impulse is
1/4 x t1
10
t2 0,4...9999 Minimal cycle time 2 (cooling) [s]. The minimum impulse is
1/4 x t2
10
SH 0...9999 Neutral zone or switching differential for on-off control
[phys. dimensions)
2
