Programmer
9499-040-93811 / 59537-1
Page 63 of 88
Pro-16

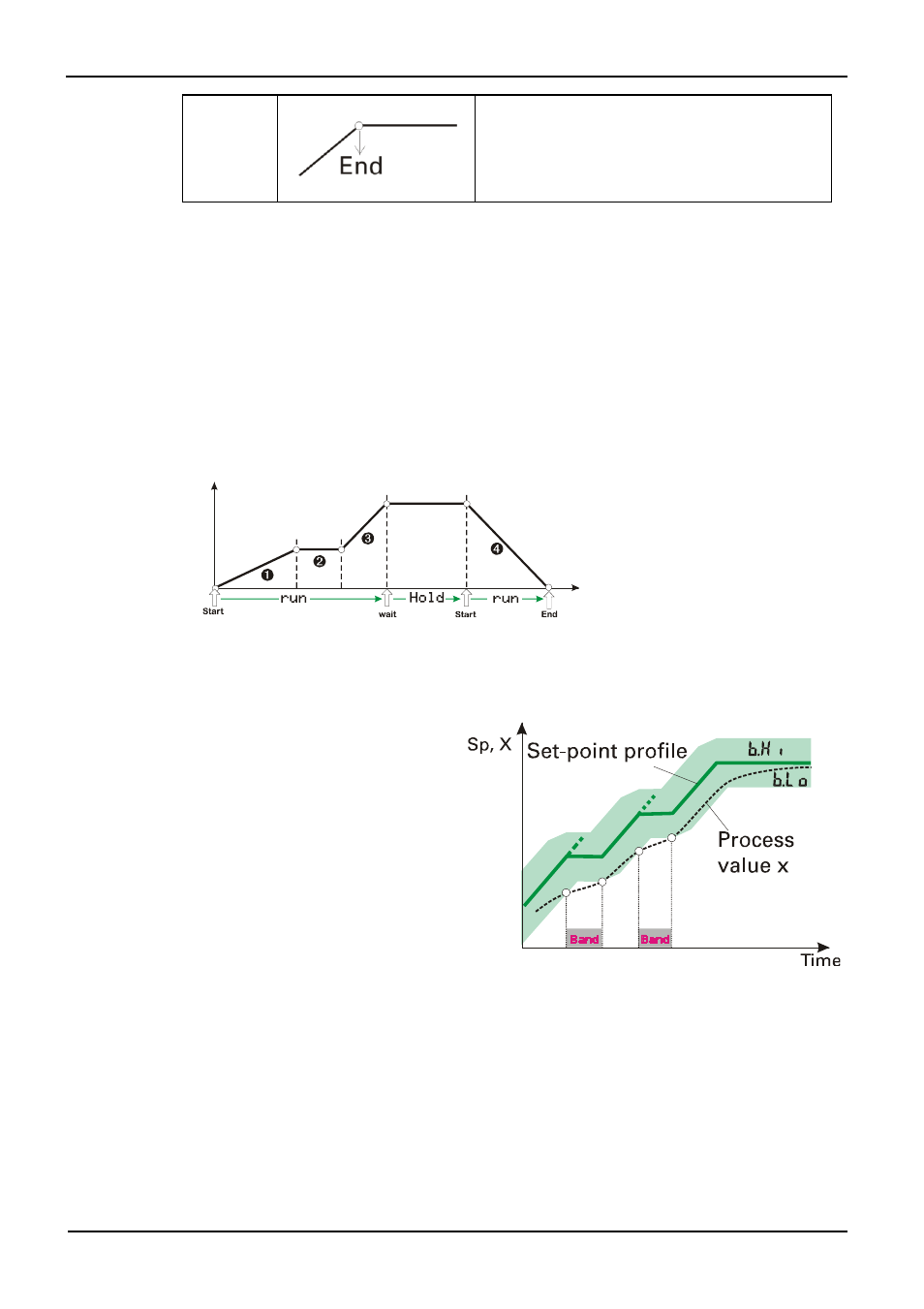

End
segment
The last segment in a program is the end
segment. When reaching the end segment,
output of the setpoint output last is continued.
Waiting and operator call
All segment types except end segment can be combined with ”Wait at the end and
operator call”.
If a segment with combination ”wait” was configured, the programmer goes to stop mode
at the segment end (run LED is off). Now, the programmer can be restarted by pressing the
start/stop key (>3s), via interface or digital input.
1 Segment type = time
2 Segment type = hold
3 Segment type = time and wait
4 Segment type = time
8.1.3
Bandwidth monitoring
Bandwidth monitoring is valid for
all program segments. An
individual bandwidth can be
determined for each program.
When leaving the bandwidth
(
b.Lo = low limit; b.Hi = high
limit), the programmer is stopped
(run LED flashes). The program
continues running when the
process value is within the
predefined bandwidth again.
g
With segment type Step and bandwidth monitoring activated, the control
deviation alarm is suppressed, until the process value is in the band again.
If band alarm signalling as a relay output is required, a control deviation alarm
with the same limits as the band limits must be configured.
