Configuration

level

9499-040-93811 / 59537-1

Page 48 of 88

Pro-16

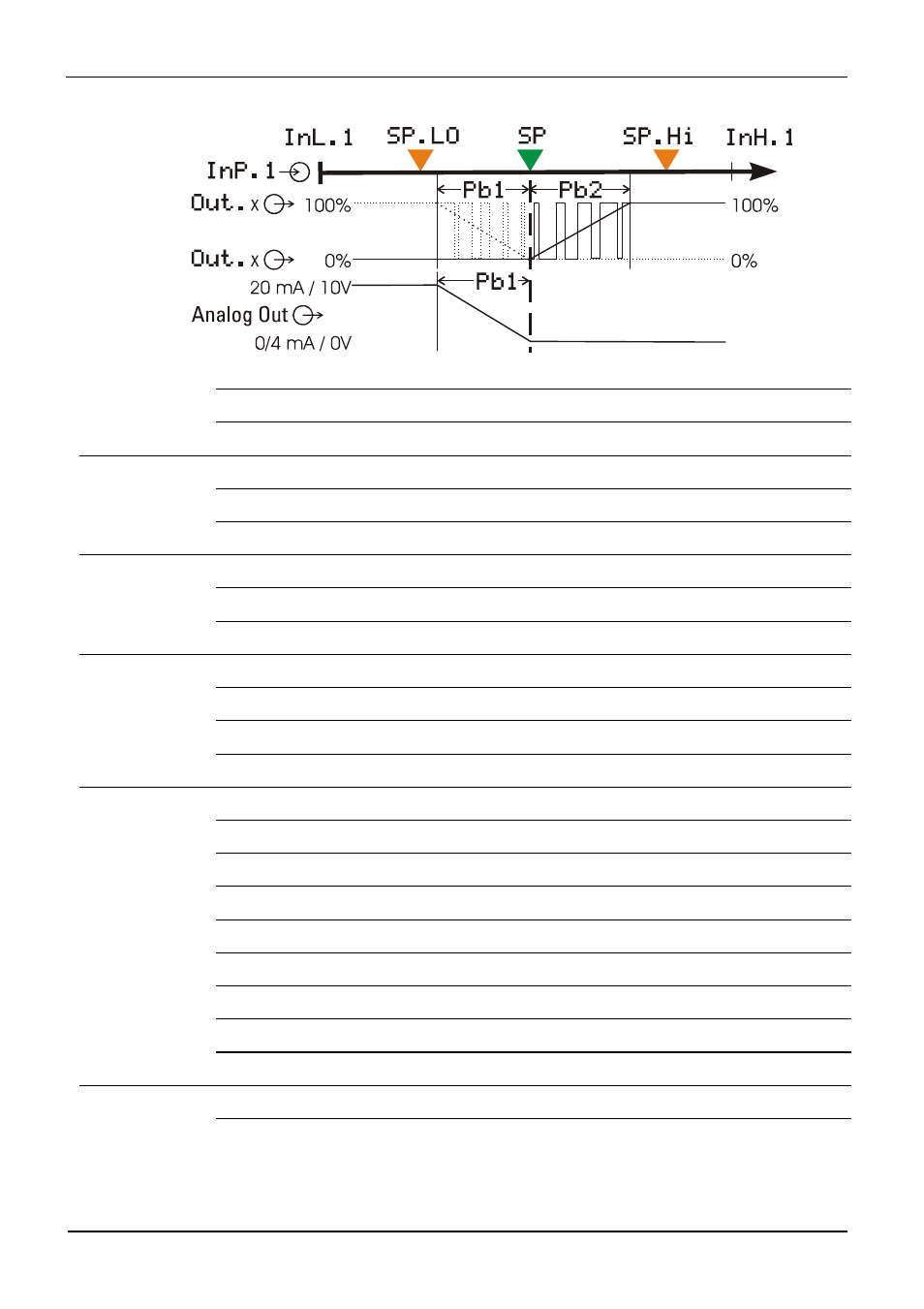

4.4.3

3-point and continuous controller

ConF/Cntr: SP.Fn

= 0

set-point / cascade controller

C.Fnc

= 3

3-point controller (2xPID)

C.Act

= 0

action inverse (e.g. heating applications)

ConF/Out.1: O.Act

= 0

action Out.1 direct

Y.1

= 1

control output Y1 active

Y.2

= 0

control output Y2 not active

ConF/Out.2: O.Act

= 0

action Out.2 direct

Y.1

= 0

control output Y1 not active

Y.2

= 1

control output Y2 active

Conf/Out.3: O.typ

= 1 / 2

0 ... 20 mA continuous. / 4 ... 20 mA

Out.0

= 0

scaling 0 %

Out.1

= 100

scaling 100 %

O.Src

= 1

controller output y1 (continuous)

PArA/Cntr: Pb1

= 1...9999

proportional band 1 (heating) in units of phys. quantity (e.g. °C)

Pb2

= 1...9999

proportional band 2 (cooling) in units of phys. quantity (e.g. °C)

ti1

= 0,1...9999

integral time 1 (heating) in sec.

ti2

= 0,1...9999

derivative time 2 (cooling) in sec.

td1

= 0,1...9999

integral time 1 (heating) in sec.

td2

= 0,1...9999

derivative time 2 (cooling) in sec.

t1

= 0,4...9999

min. cycle time 1 (heating)

t2

= 0,4...9999

min. cycle time 2 (cooling)

SH

= 0...9999

neutr. zone in units of phys.quantity

PArA/SEtP: SP.O

= -1999...9999 set-point limit low for Weff

SP.Hi

= -1999...9999 set-point limit high for Weff
