Electrical connection, Connection – West Control Solutions Pro-16 User Manual
Page 8
Electrical
connection
9499-040-93811 / 59537-1
Page 8 of 88
Pro-16
2. Electrical connection

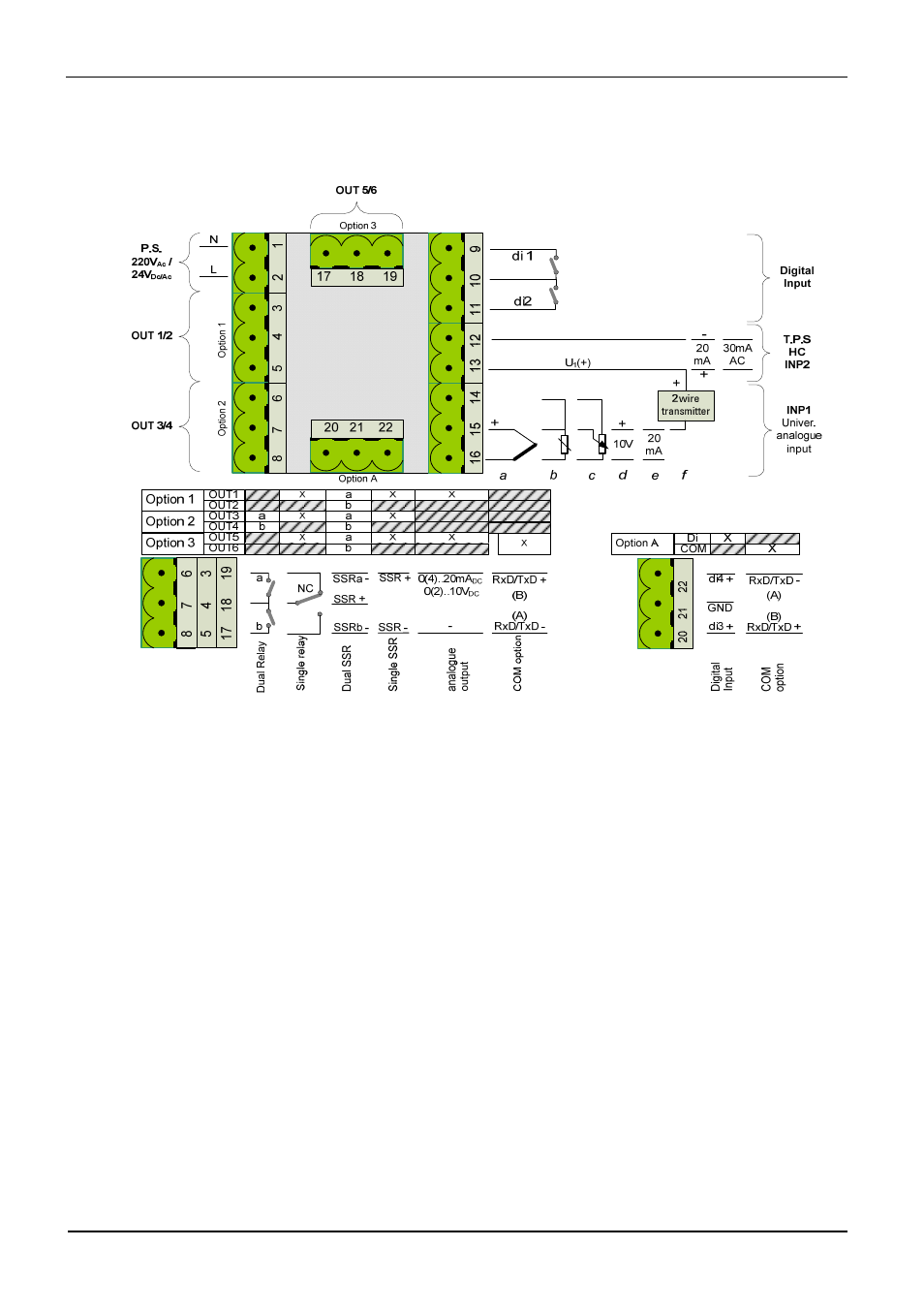

Fig. 4: Electrical connection
Connection of input INP1
Input for variable x1 (process value)
a thermocouple
b
resistance thermometer (Pt100/ Pt1000/ KTY/ ...)
c potentiometer
d voltage
(0/2...10V)
e current
(0/4...20mA)
f
Transmitter Power Supply
Connection of input INP2
current (0/4…20mA and 0…30mA AC).
Connection of inputs di1/di2/di3 and di4
Digital inputs for switching functions, e.g.
SP and SP.2/SP.e or programmer
Run/Stop/Reset.
