Operation
9499-040-93811 / 59537-1
Page 11 of 88
Pro-16
3.4 Operating level
The operating level comprises two views for setpoint and controller output value. The
operating level can be enhanced with two levels
Extended operating level
Function level (see chapter 3.6)
The content of the extended operating level and the function level is determined by means
of BlueControl (engineering tool). Parameters which are used frequently or the display of
which is important can be copied to the extended operating level.

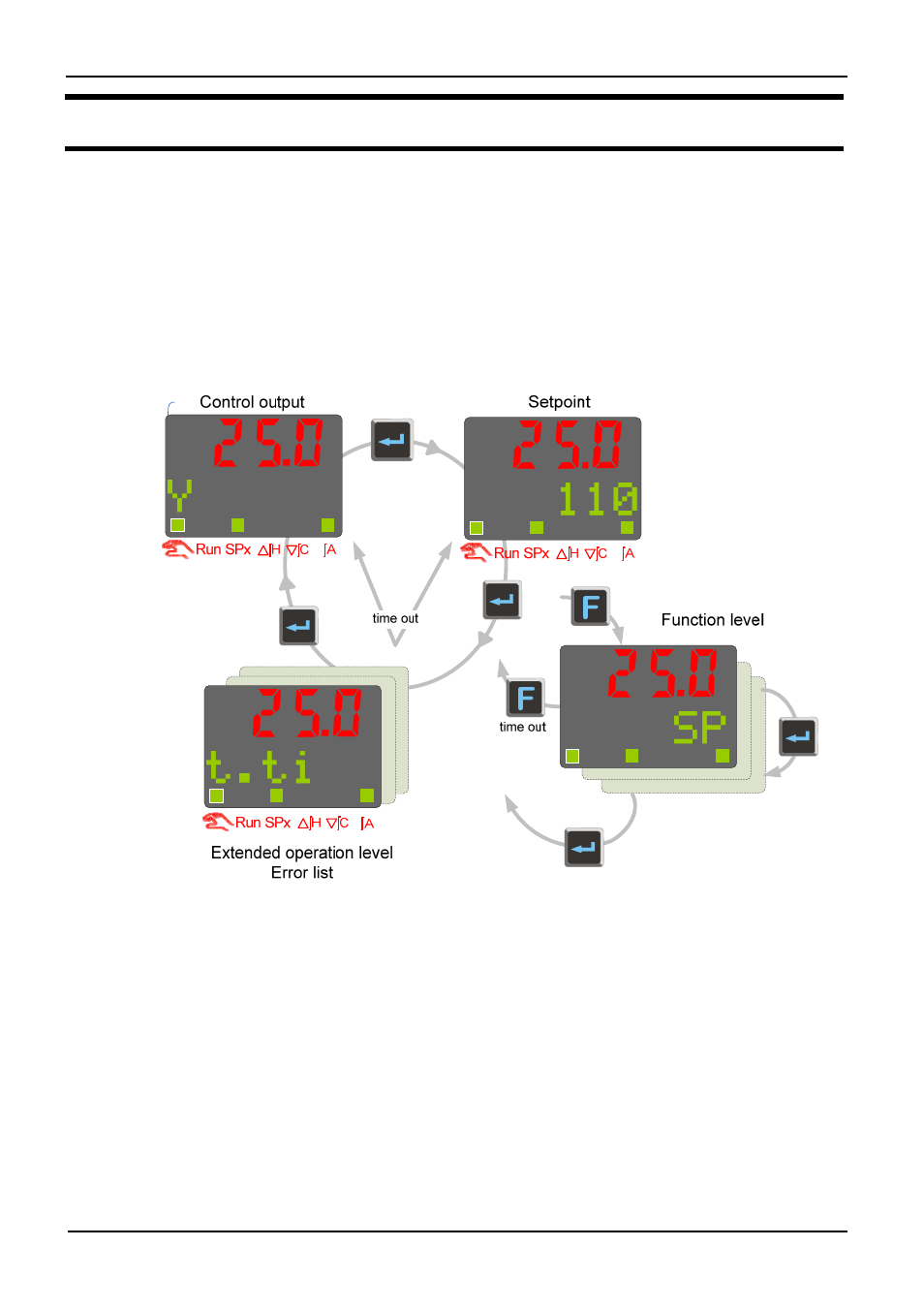

Fig. 7: Operating level and function level
