7. Calibration level

g

Measured value correction (

CAL) is visible only if ConF /

InP.1 / Corr = 1 or 2 is selected.

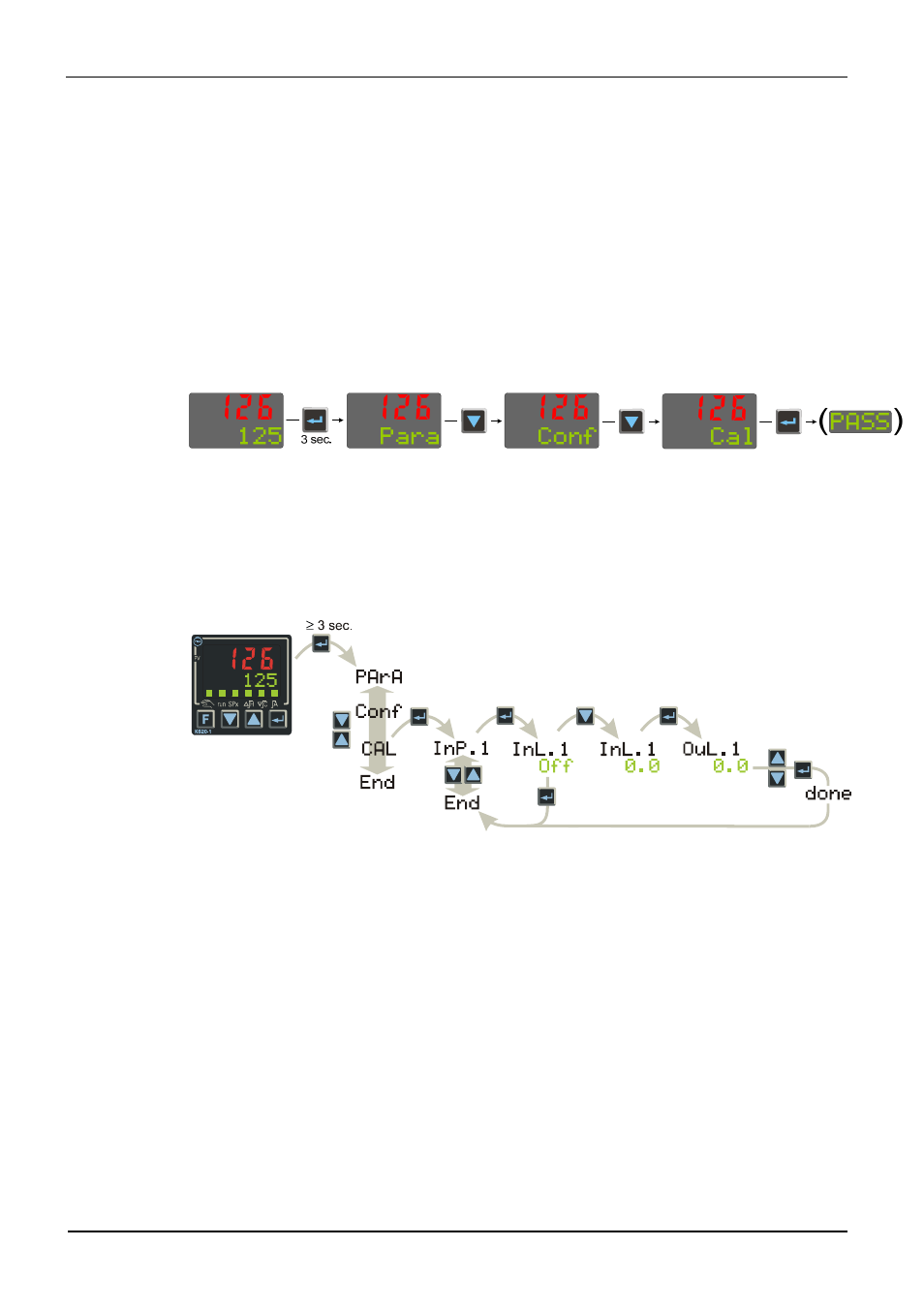

To access the calibration level, press the key

Ù

for 3 seconds and then the key

Ì

to select the CAL-Menu item. Press

Ù

to confirm.

If the password function is activated, a prompt for the

PASS is displayed.

In the calibration menu (

CAL), the measured value can be adapted. Two methods are

available :

Offset correction (

ConF/ InP.1 / Corr =1 ):

InL.1:

The input value of the scaling point is displayed.

0.0

The operator must wait, until the process is at rest. Subsequently, the

operator acknowledges the input value by pressing key

Ù

.


OuL.1:

The display value of the scaling point is displayed.

0.0

Before calibration,

OuL.1 is equal to InL.1.


The operator can correct the display value by pressing keys

ÌÈ

Subsequently, he

confirms the display value by pressing key

Щ

.
