Programmer

9499-040-93811 / 59537-1

Page 61 of 88

Pro-16

8. Programmer

8.1 Operation

Programmer operation (run/stop, preset and reset) is via

è

-Key-Menu, digital inputs or

interface (BlueControl, superordinate visualization, ...).

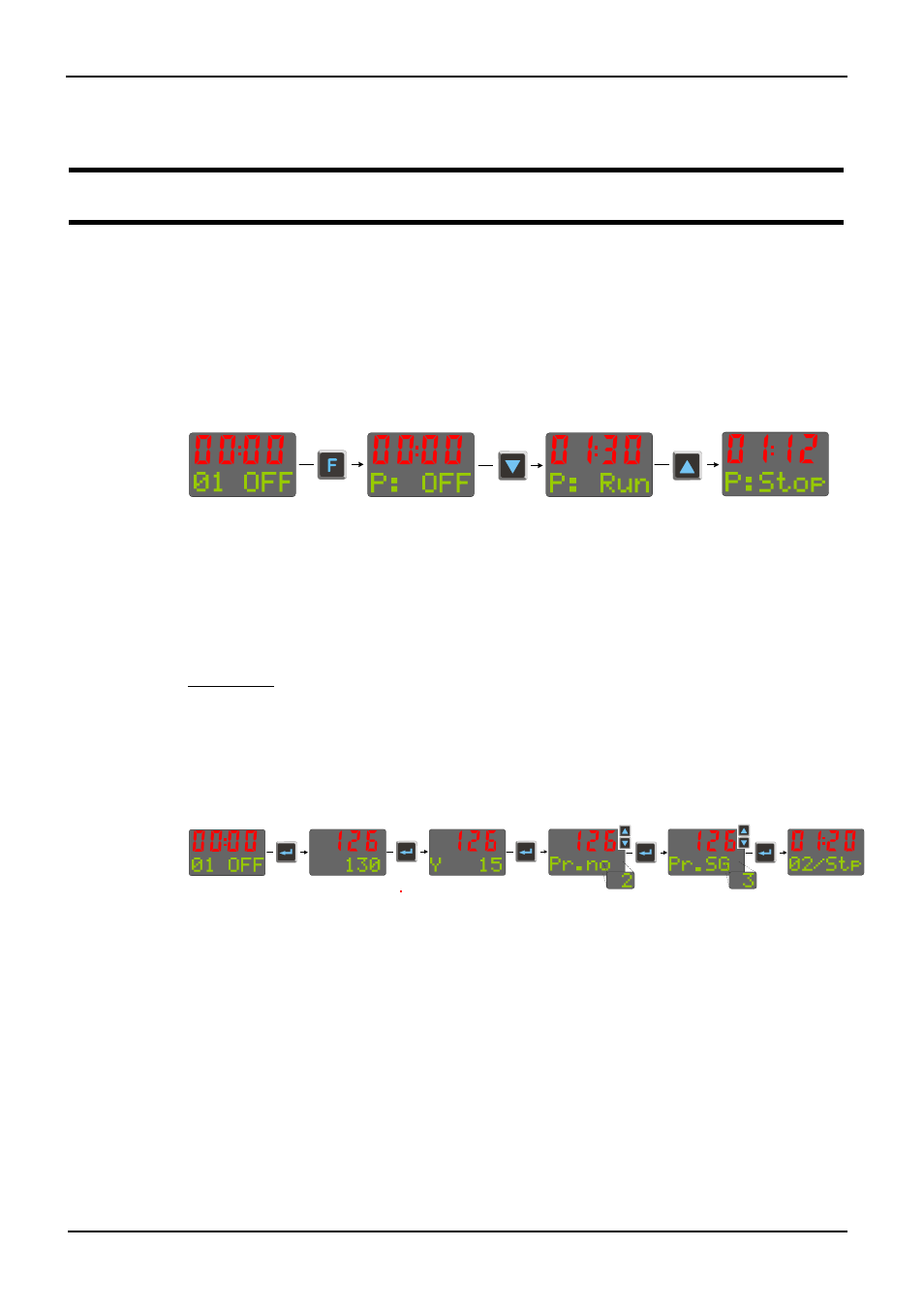

Operating via front keys

The function key

è opens the function menu of the programmer. By using the arrow

buttons select a function. In order to exit the screen, either press the

è

key, or it will

automatically exit after 30 seconds.

Operation via digital inputs

Functions start/stop and reset can be activated also via digital inputs. For this, parameters
P.run and P.oFF must be set for digital inputs at CONF level LOGi.

Program/segment selection

Prerequisite: Programmer is in the reset or stop condition and program / segment selection
(

Pr.no / Pr.SG) is set in the extended operating level.

How to select a defined program (

Pr.no) followed by a segment (Pr.SG) is shown

below. When starting the programmer now, program operation starts at the beginning of
the selected segment in the selected program.


Preset

The preset function is activated via segment selection.
To permit preset in a running program, switch the programmer to stop, select the target
segment as described in the above section and switch the programmer to run.
