Operation
9499-040-93811 / 59537-1 Page 14 of 88 Pro-16
3.6 Function level
Switching functions via è key.
The function level serves for the enhanced operation of the device. You can switch
functions such as manual / automatic, Sollwert/Sp.2/Sp.E, ... via the operation level on the
controller are performed. It's content is determined by configuration (
LOGI ):
Err
No reset of the error list
Off
Controller/Signaller and
Limit 1 are switched off
Ereset
Resetting thr error list
Auto
Automatic operation
SP
Internal setpoint active
Man
Manual operation
SP.E
External setpoint active
Bo.Off
Boost function not active
SP.2
2nd setpoint active
Bo.On
Boost function aktive
Y
Internal correcting variable
Para.1
First parameter set aktive
Y2
2. correcting variable
Para.2
Second parameter set aktive
Y.ext
External correcting variable
Loc
Local-operation adjustment via front-
panel possible
On
Controller/Signaller and
Limit 1 are active
rem
Remote-operation adjustment via
front-panel not possible
In the sequence above the list can be scrolled with the Ù -key. With the keys ÌÈ values
are adjusted, with Ù or latest 2 seconds after adjustment, the value is taken over.
Pressing key è returns to normal operation.

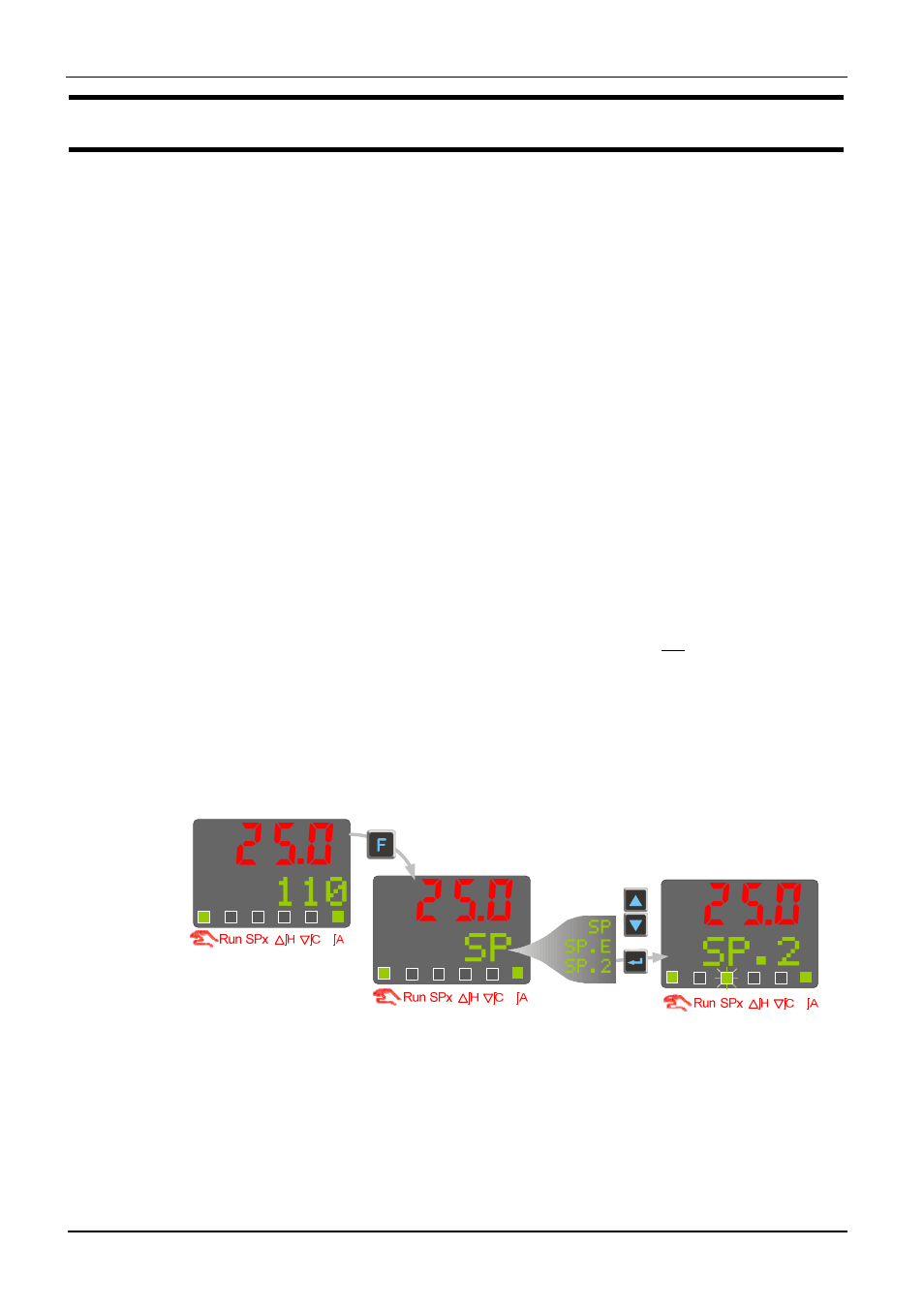

Example (switching from internal setpoint to SP.2)
