Configuration
level
9499-040-93811 / 59537-1
Page 27 of 88
Pro-16
Adjustment:

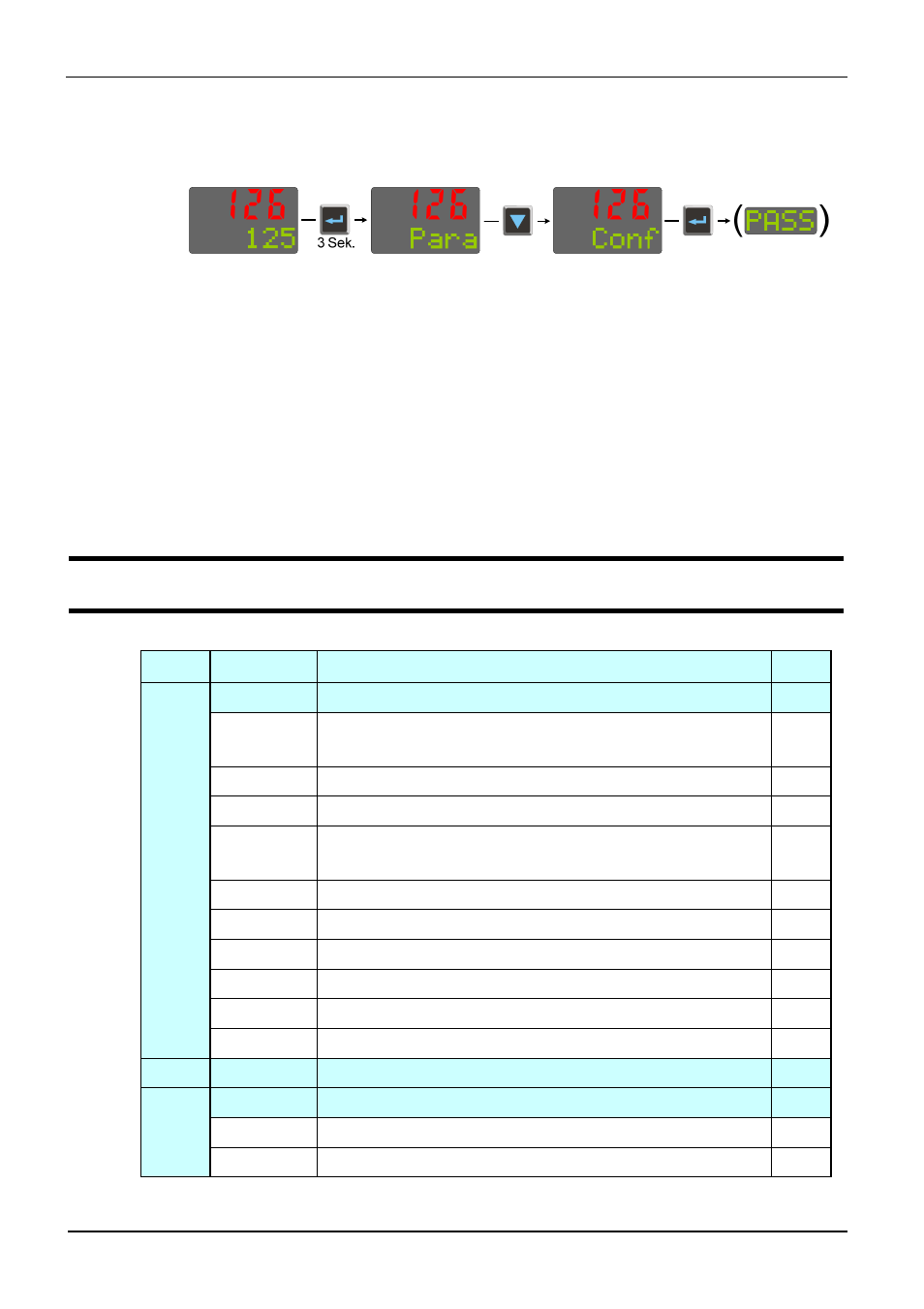

To access the configuration level, press the key
Ù
for 3 seconds and then the key
Ì
to select the ConF-Menu item. Press
Ù
to confirm.
If the password function is activated, a prompt for
PASS is displayed.
The configuration values can be adjusted using the
ÌÈ
keys. Press the
Ù
key to save the value. The next configuration value is shown.
After the last configuration value of a group,
donE is displayed, followed by
automatic changing to the next group
g
Return to the beginning of a group, by pressing the
Ù
key for 3 sec
g
Press menu item
quit to close/cancel configuration
4.2 Configurations
Cntr
Name
Value range Description
Default
SP.Fn
Basic configuration of setpoint processing
0
0
set-point controller can be switched over to external set-point
(->
LOGI/ SP.E
)
1 program
controller
2
timer, mode 1 (bandwidth-controlled, switched off at the end)
3
timer, mode 2 (bandwidth-controlled, set-point remains active
at the end)
4
timer, mode 3 (switched off at the end)
5
timer, mode 4 (set-point remains active at the end)
6
timer, mode 5 (switch-on delay)
7
timer, mode 6 (set-point switch-over)
10
controller with start-up circuit (see page 71)
11
Fixpoint /
SP.E/ SP.2
controller with start-up circuit (see page 71)
b.ti
0…9999 Timer tolerance band
5
C.Fnc
Control behaviour (algorithm)
1
0
on/off controller or signaller with one output
1
PID controller (2-point and continuous)
