3.
Start by mounting the chassis that goes in the lowest position in the rack. With two or more people
lifting the chassis, slip the wide portion of each keyhole slot over the corresponding screw in the
rack.

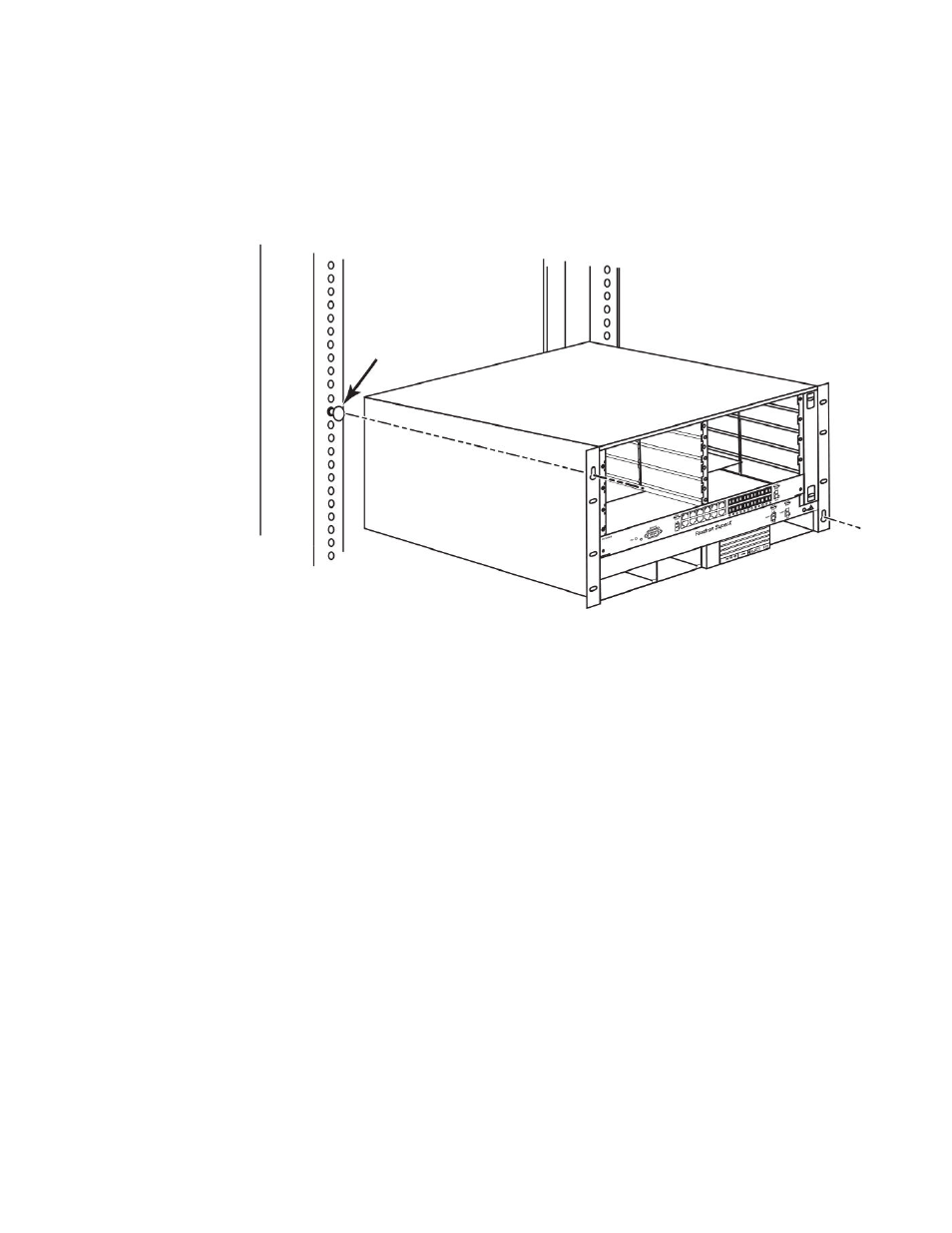

FIGURE 22 Mounting a chassis in a rack - front mount
4.
Slide the chassis down so that the screw heads are in the narrow portion of the keyhole slots.
5.
Install the remaining two mounting screws through the opposite corners of the brackets into the
rack.
6.
Tighten all screws to secure the chassis in place.
7.
Repeat Step 2 through Step 6 to mount each subsequent chassis in the same rack.
Installing mounting brackets on the FSX 1600 chassis
The FSX 1600 chassis does not ship with mounting brackets installed. You will need to install the
brackets, using a #2 Phillips or flathead screwdriver. Mount the brackets as shown in the figure below.
Installing mounting brackets on the FSX 1600 chassis
58
Brocade FastIron SX Series Chassis Hardware Installation Guide
53-1003092-01
