Input connector and plug
Input connector for AC power supply TABLE 38
Power Supply AC Input Connector Properties
SX-ACPWR-SYS and SX-ACPWR-POE Standard IEC type (IEC320)
C20 type: UL/CSA 20A/250V, VDE 16A/250V
Orientation: Ground pin down
SX-ACPWR2500-POE 6-20 Connector
SX-DCPWR-SYS and SX-DCPWR-POE 2-position terminal block
The power supply is connected to Earth Ground through the power
supply chassis.
The figure below shows the power plug and connector for the SX-ACPWR-SYS and SX-ACPWR-POE
power supplies. The power cord is 2.5 meters in length.

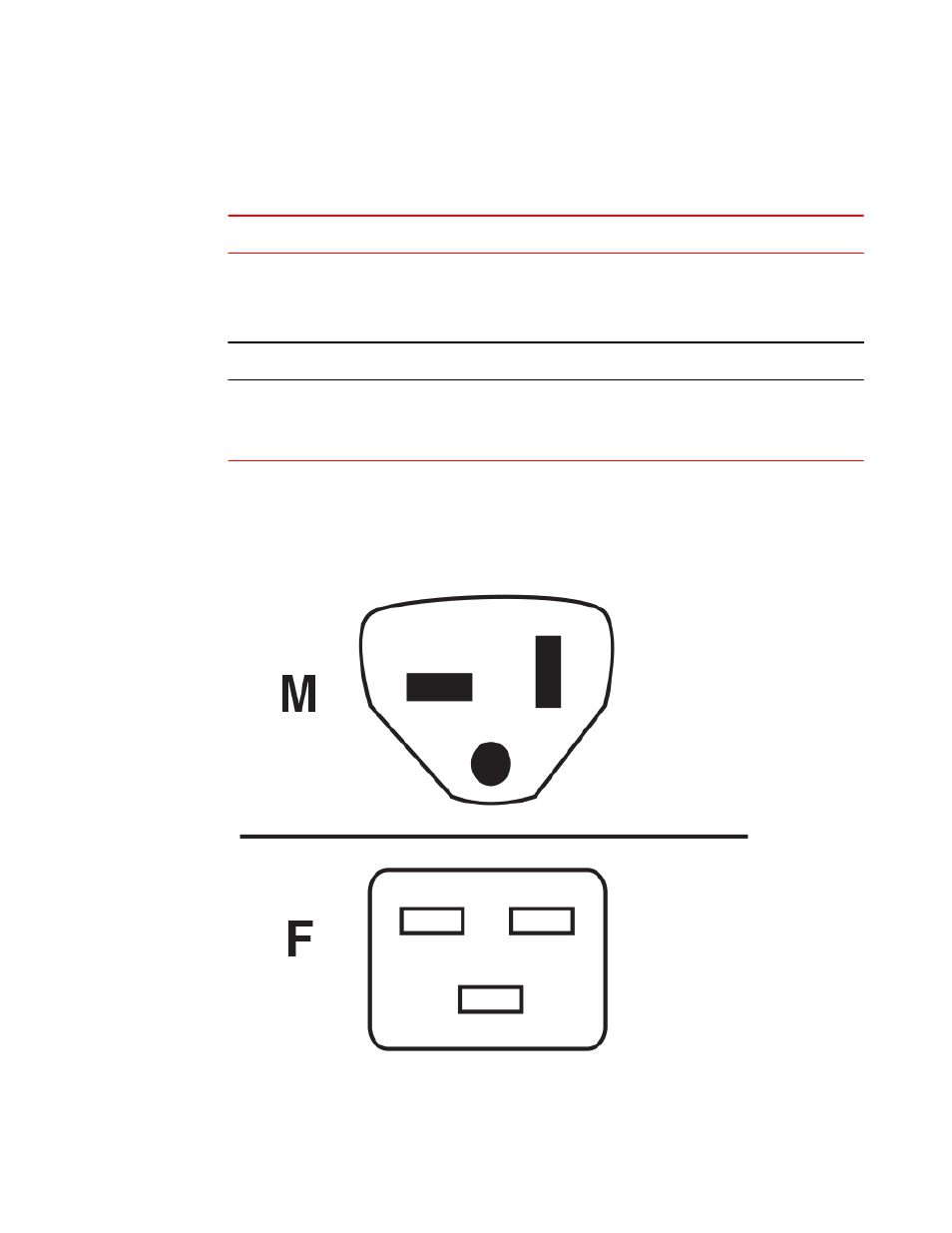

FIGURE 59 AC power cable plug and input connector for SX-ACPWR-SYS and SX-ACPWR-POE
power supplies
Input connector and plug
