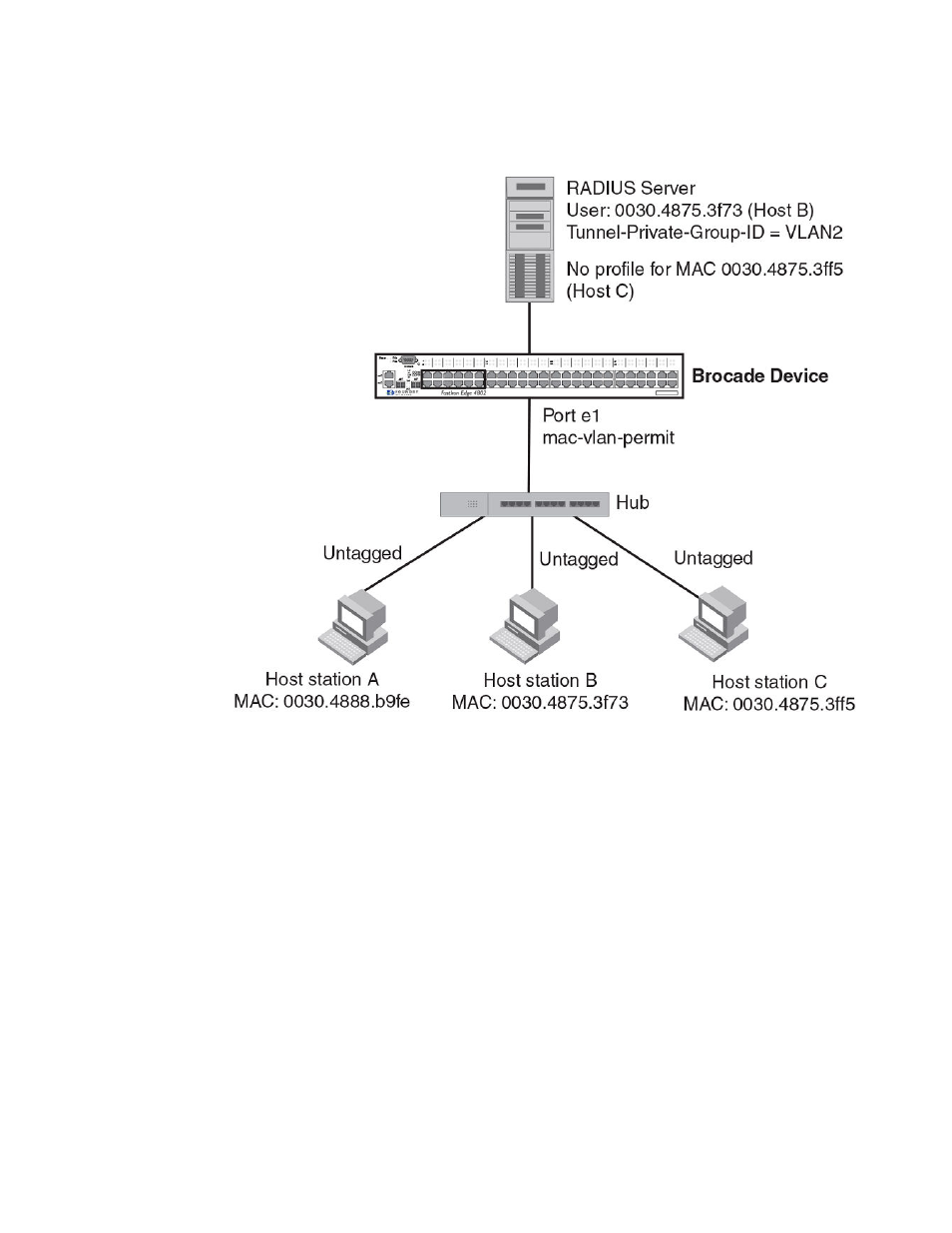

FIGURE 9 Sample MAC-based VLAN configuration
Host A MAC address is statically mapped to VLAN 1 with priority 1 and is not subjected to RADIUS
authentication. When Host B MAC address is authenticated, the Access-Accept message from the
RADIUS server specifies that Host B MAC address be placed into VLAN 2. Since Host C MAC
address is not present in the RADIUS server, Host C will be rejected by the server and its MAC
address will be placed into a restricted VLAN.
Below is the configuration for this example.
module 1 fcx-48-port-management-module
module 2 fcx-xfp-1-cx4-1-port-10g-module
vlan 1 by port
untagged ethe 0/1/10
mac-vlan-permit ethe 0/1/1 to 0/1/2
no spanning-tree
vlan 2 by port
untagged ethe 0/1/30
mac-vlan-permit ethe 0/1/1 to 0/1/2
no spanning-tree
vlan 666 name mac_restricted by port
untagged ethe 0/1/20
mac-vlan-permit ethe 0/1/1 to 0/1/2
no spanning-tree
vlan 4000 name DEFAULT-VLAN by port
no spanning-tree
vlan 4004 by port
mac-vlan-permit ethe 0/1/1
default-vlan-id 4000
ip address 10.44.3.8 255.255.255.0
ip default-gateway 10.44.3.1
