4.2 Piping for System 2
Piping in System 2 is illustrated in Figure 4.9. In System 2, calibration is automated;
however, the piping is basically the same as that of System 1. Refer to Section 4.1.
Adjust secondary pressure of both the air set and the zero gas regulator so that these two
pressures are approximately the same. The flow rate of zero and span gases (normally
instrument air) are set by a individual needle valve. After installation and wiring, check
the calibration contact output (see Sec. 7.9.2), and adjust zero gas regulator and calibra-
tion gas needle valve so that zero gas flow is within the permitted range. Next check
span gas calibration contact output and adjust air set so that span gas flow is within the
permitted range.
~ 100 to 240 V AC Auto Calibration unit
Reference gas
Calibration gas (Zero)
Contact input
Analog output, contact output
Digital output (HART)
Air Set
Instrument air
Calibration gas
unit case
Pressure regulator
Zero gas cylinder
ZR202S Integrated type Explosionproof
Zirconia Oxygen Analyzer
F03.EPS
Span gas
Non-hazardous Area Hazardous Area
Note:
The installation temperature limits range for integrated type analyzer is -20 to 55
؇ C.
*2

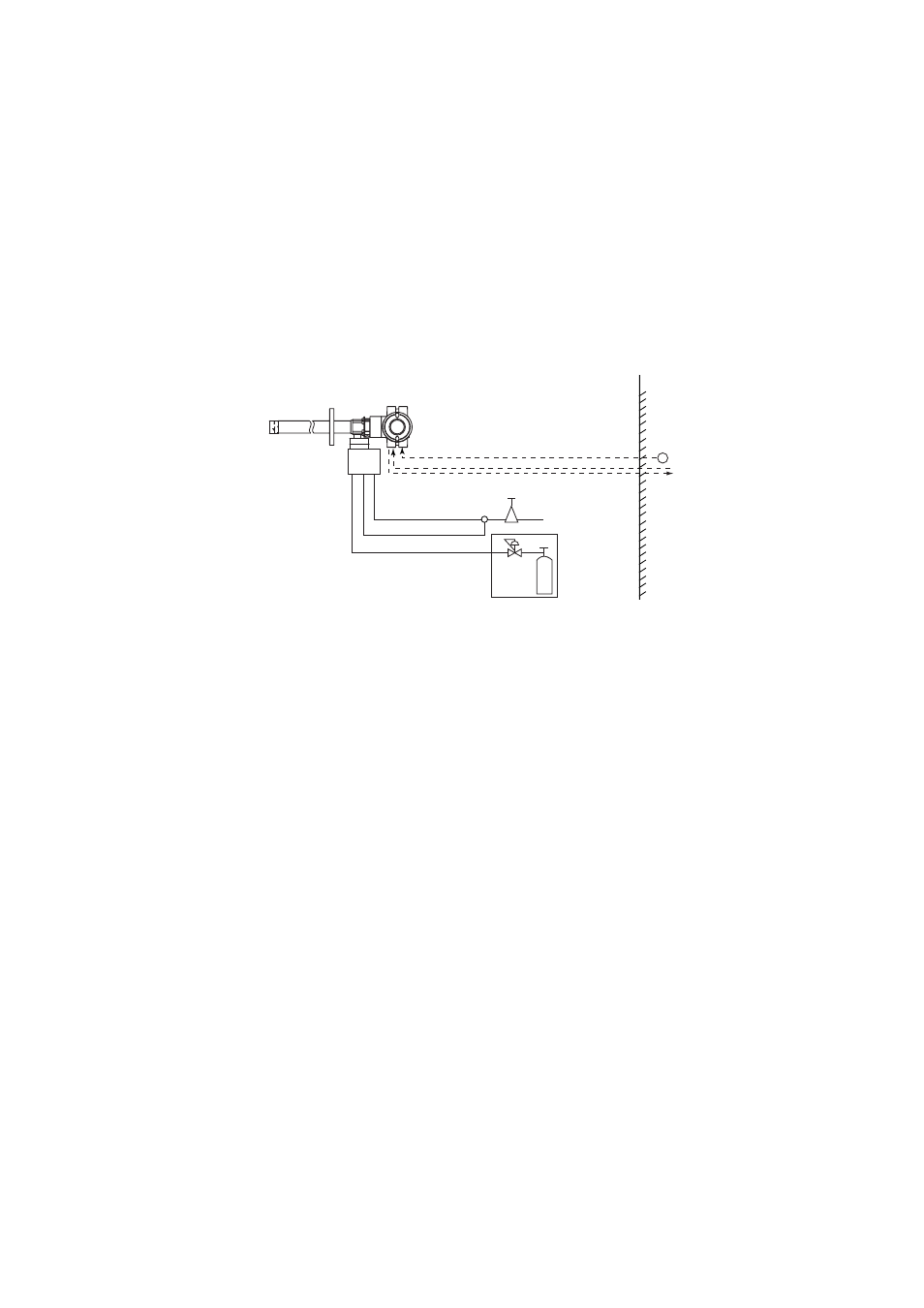

Figure 4.9 Piping for System 2
