IM 11M13A01-04E 2-21
2. Specifications
2.4.5 Model ZR202A Heater Assembly
ZR202A
-040
-070
-100
-150
-200
T2.12E.EPS
Model Suffix code Option code Description
Heater Assembly for ZR202S
Length
(
ء 1)
0.4 m
0.7 m
1 m
1.5 m
2 m
Jig for change -A
-N
-A Always -A
( ء 1) Suffix code of length should be selected as same as ZR202S installed.
* The heater is made of ceramic, do not drop or subject it to pressure stress.
with Jig
None

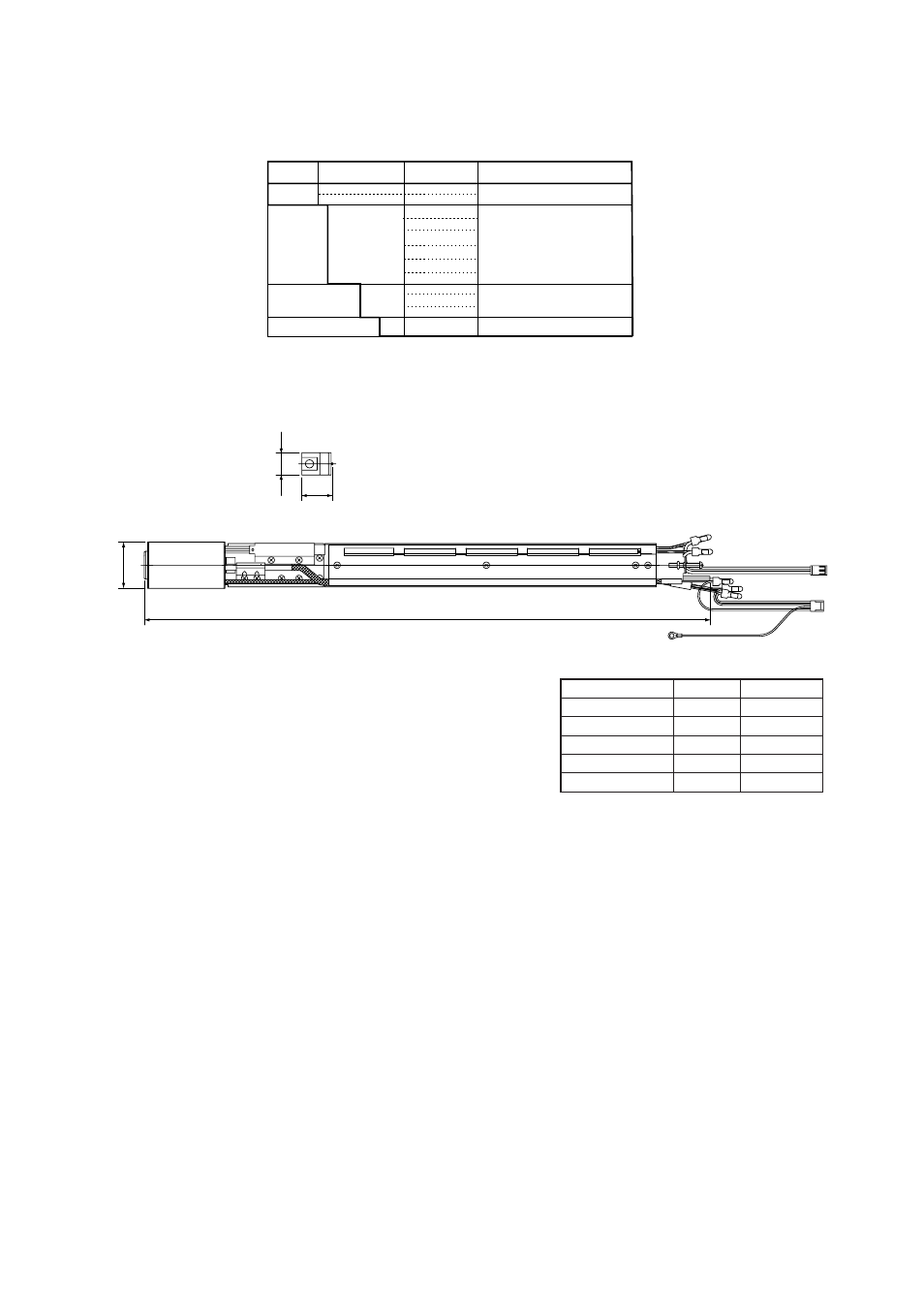

᭹ External Dimensions
K9470BX
ZR202A-040
ZR202A-070
ZR202A-100
ZR202A-150
ZR202A-200
552
852
1152
1652
2152
Approx. 0.8
Approx. 1.2
Approx. 1.6
Approx. 2.2
Approx. 2.8
Jig for change
L
±
12
(K9470BX)
Ø
21.7
30
Unit : mm
Ø 45
L length
L Weight (kg) Model & Code
F2.16.EPS
