2.1.3 ZO21R-L Probe Protector
This probe protector is required for the general-use detector when it is used for oxygen
concentration measurements in powdered coal boilers or in fluidized furnaces to prevent
abrasion due to dust particles when gas flow exceeds 10 m/s.
When using a ZR202S general-use integrated type detector in the horizontal position, be
sure to select a probe protector ZO21R-L-
ᮀᮀᮀ-ᮀ*B to support the probe.
Insertion Length: 1.05 m.
Flange: JIS 5K 65A FF equivalent. ANSI Class 150 4 FF (without serration) . However,
flange thickness is different.
Material: SUS316 (JIS), SUS304 (JIS) (Flange)
Weight: 1.05m; Approx. 6/10 kg (JIS/ANSI).
Installation: Bolts, nuts, and washers are provided for detector, probe adapter and
process-side flange.

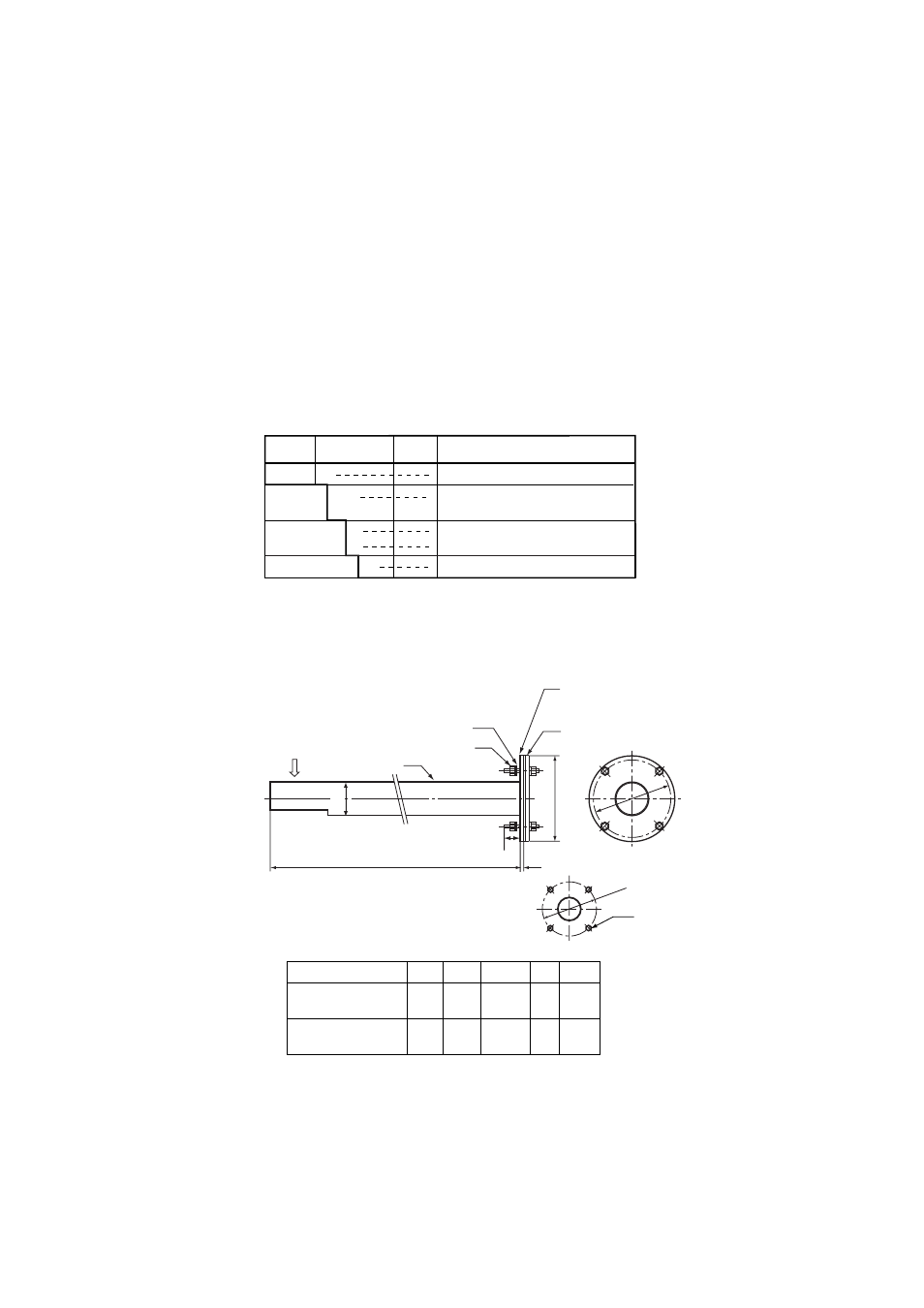

T2.2E.EPS
ZO21R
JIS 5K 65A FF SUS304
ANSI Class 150 4 FF SUS304
-L Probe Protector (0 to 700 ؇C)
-100 1.05 m (3.5 ft) Insertion
length
Flange ( *1)
*1 Thickness of flange depends on dimensions of flange.
Model Suffix code
Option
code
Description
-J
-A
Style code *B Style B
Flange<1>
JIS 5K 65 FF
SUS304
155
228.6
130
190.5
5
12
A B C t
ANSI Class
150 4 FF SUS304
40
50
D
F2.3E.EPS
D
Flange <1>
(with bolts, nuts,
gasket and washer)
gasket (t1.5)
SUS316
Dimensions of
holes on opposing surface
␾〈
Gas flow
Washer (M12)
Mounting nut (M12)
l (Insertion length)
l=1050,1550,2050
␾ B
C
␾ B
4 - л15
8 -
л19
Unit Ϻ mm
t
␾
60.5
