IM 11M13A01-04E 11-5
11. Inspection and Maintenance

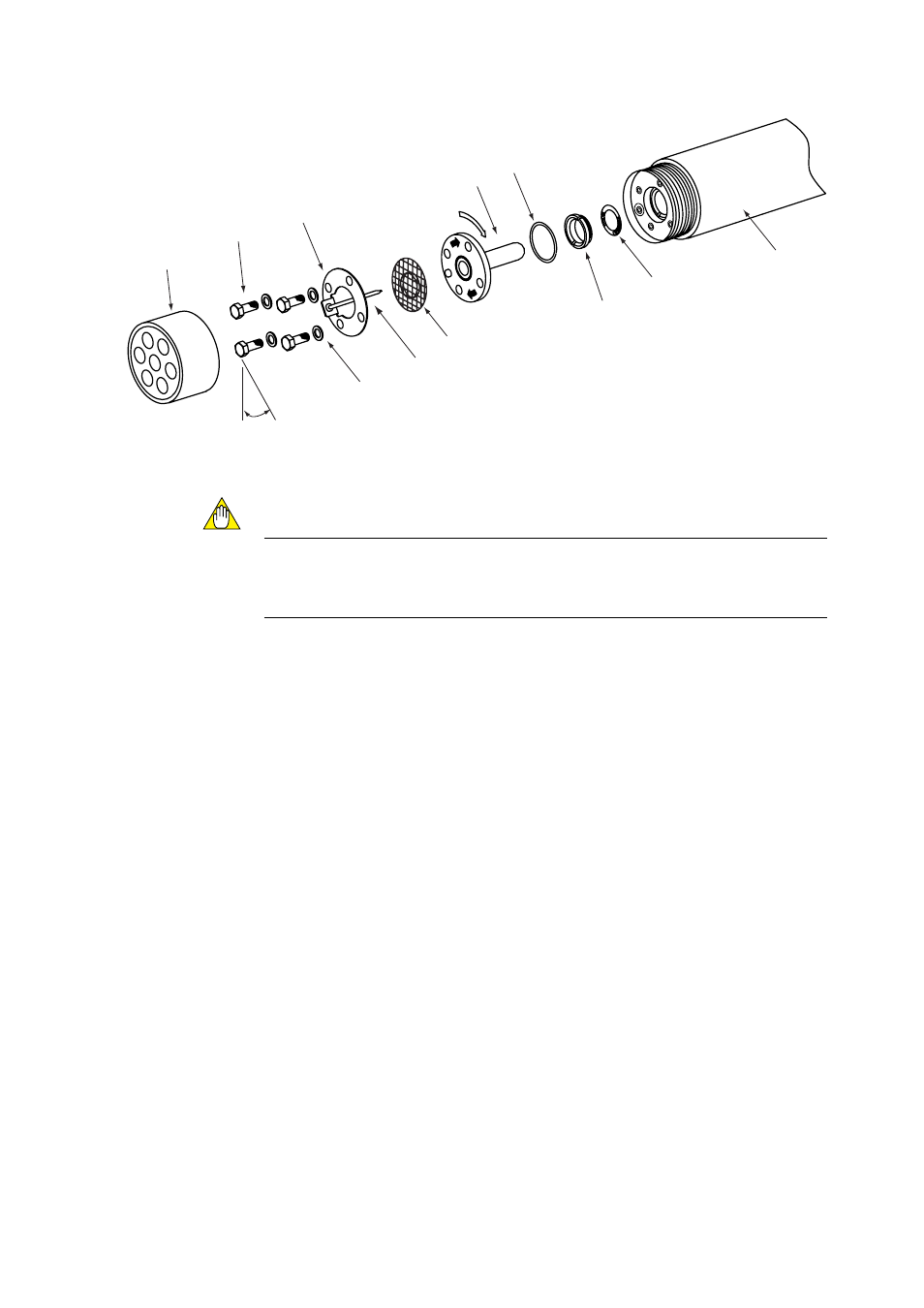

F11.3E.EPS
Flame arrestor
assembly
Bolts (four)
Washers
(four)
Sensor
U-shaped pipe
Filter
Metal O-ring
Contact
Probe
1/8 turn – tighten bolts 1/8 turn
(approximately 45
Њ ) each
U-shaped pipe
support
Screw
Figure 11.3 Exploded View of Sensor Assembly
CAUTION
Optional Inconel bolts have a high coefficient of expansion. If excess torque is applied
while the bolts are being tightened, abnormal strain or bolt breakage may result. So,
tighten the bolts following the instructions given above.
11.1.3 Replacement of the Heater Unit
This section describes the replacement procedure for the heater unit.
The sensor or ceramic heater-furnace core internal structure is subject to fracturing, so
do NOT subject it to strong vibrations or shock. Additionally, the heater unit reaches
high temperatures and is subjected to high voltages.
So, maintenance services should be performed after the power is off and the heater unit
temperature has returned to normal room temperature.
For details, refer to IM11M12A01-21E " Heater Assembly ".
