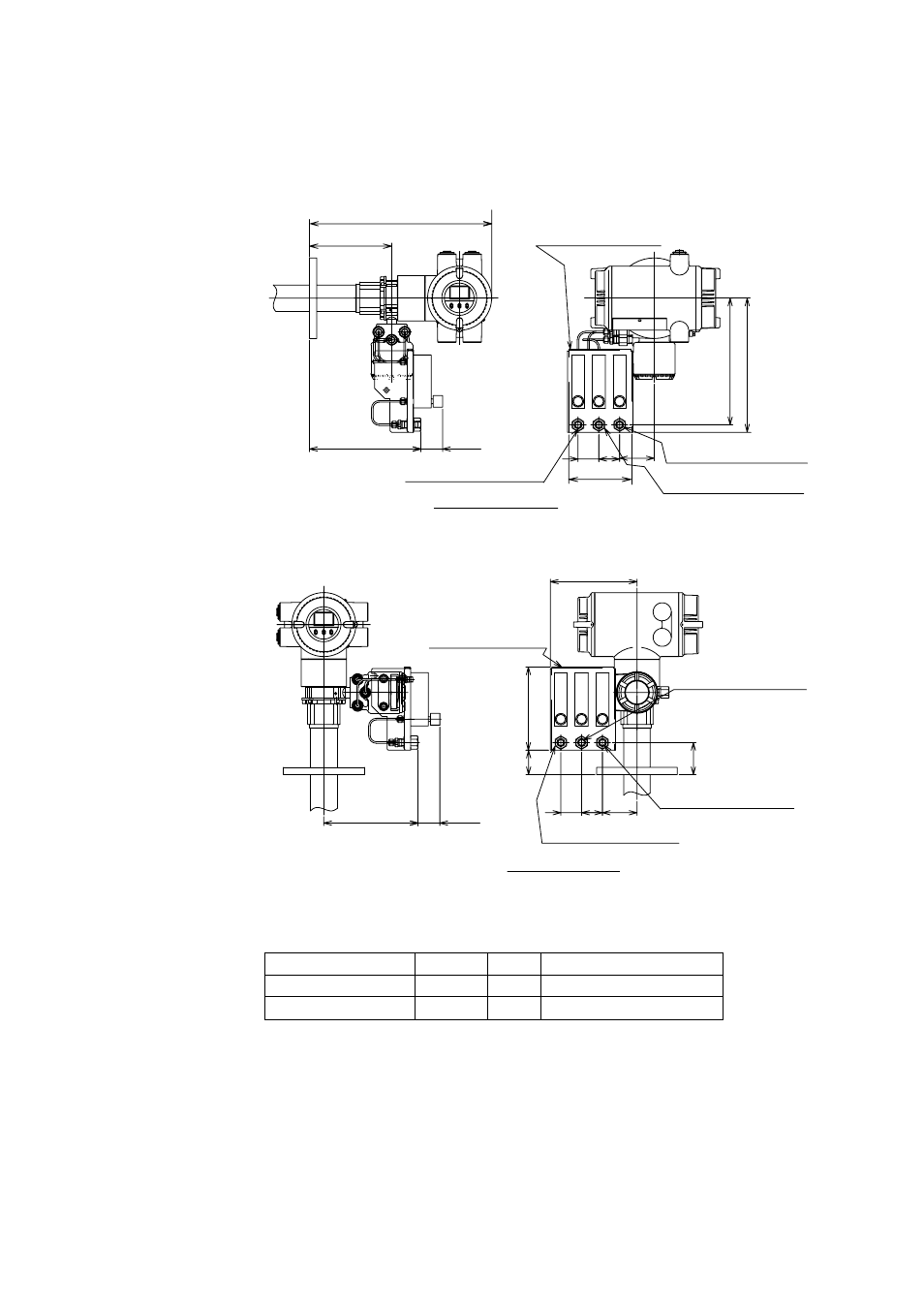

• External Dimensions
(1) For HorizontalMounting (-A)
180 MAX 44
40
60
66.5 40
166.5
45
160
AUTO CALIBRATION UNIT
Rc 1/4 or 1/4 NPT(Female)
Span gas inlet
Rc1/4 or 1/4NPT(Female)
Reference gas inlet
Rc1/4 or 1/4NPT(Female)
Zero gas inlet
VERTICAL INSTALL
Basic spec. code-A : Horizontal mounting
Span gas inlet
Unit : mm
MAX 44 214
40
244
66.5 40
Rc 1/4 or 1/4 NPT(Female)
Rc 1/4 or 1/4 NPT(Female)
Reference gas inlet
Rc 1/4 or 1/4 NPT(Female)
Zero gas inlet
AUTO CALIBRATION UNIT
HORIZONTAL INSTALL
Display Terminal box
Basic spec. code-B : Vertical mounting
166.5
156
±
3
F3-15-1
348
±
3
258
• Standard Accessories
Qty Description
T02-01.EPS
Fuse
Allen wrench
1
1
3.15A
For lock screw
Parts. No.
A1113EF
L9827AB
Item
