3.2.3. Remote switches

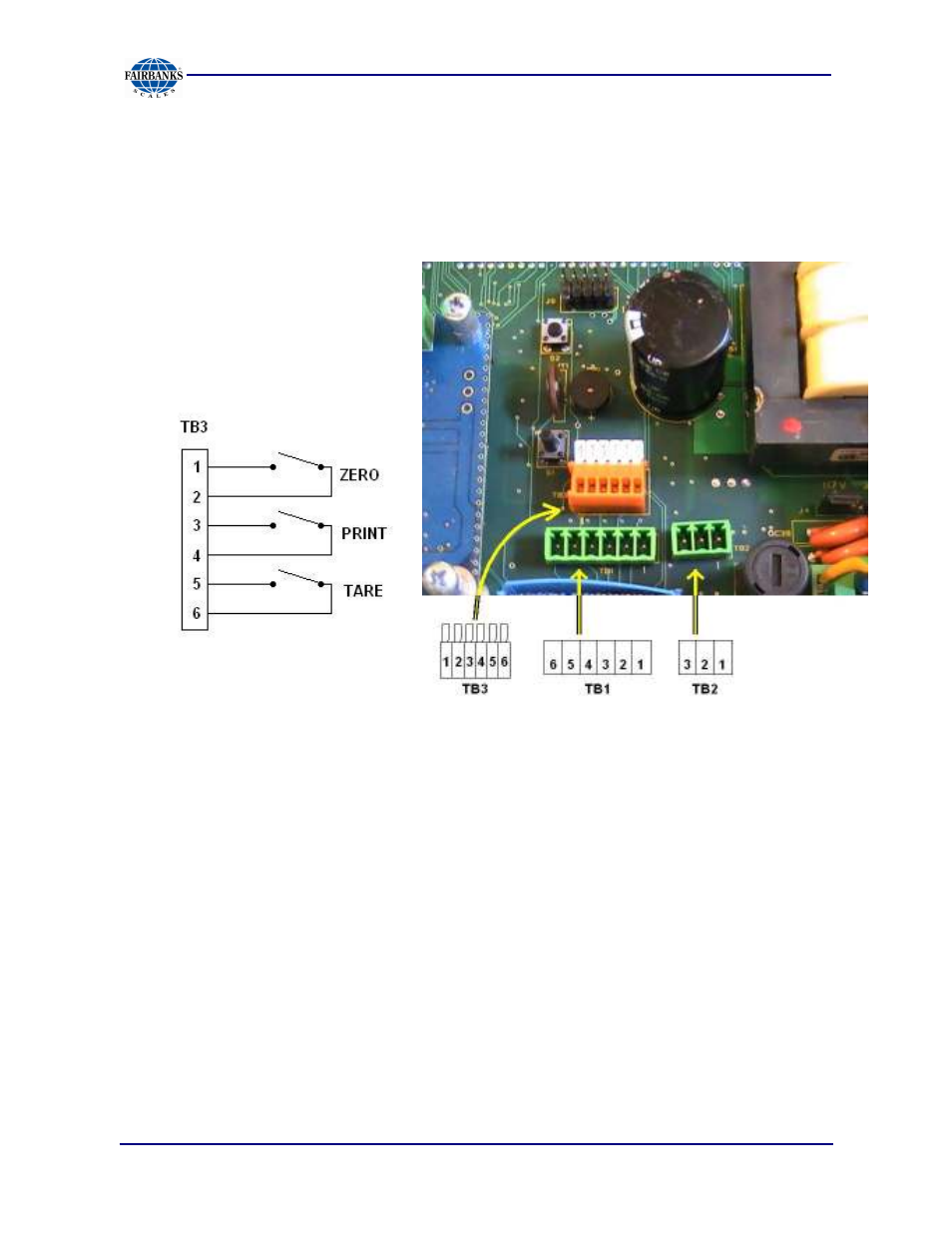

The NexWeigh has three available remote switch inputs. A dry contact normally open
switch can be mounted and operated remotely using the connections on
TB3
.
3.2.4. Powering Up the Instrument
The Instrument performs a warm-up cycle.
•
The Instrument initiates a test, displaying numbers to
8
8
8
8
, and lights up all LED’s.
•
The Program number and Revision Information displays.
•
The Instrument then displays the current weight on the scale
