MAP Technology
64 PN 89-00002-00-084 Rev. B
‹
To enter the path and dimensions for the graphic that you select
as a splash screen:
1. On the Tools menu, click Options, and then click the Splash
Screen tab. See Figure 43.

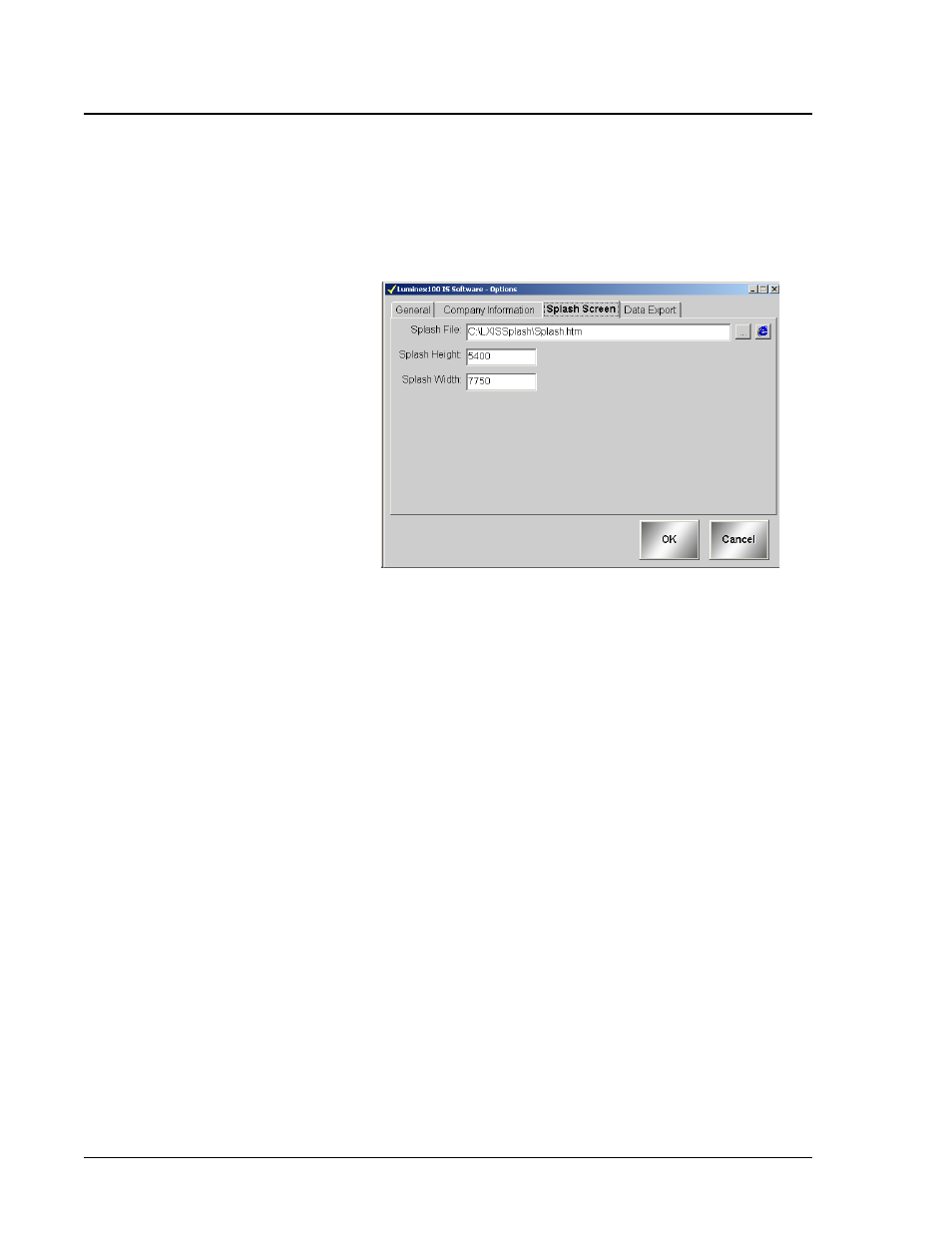

Figure 43. Options Dialog Box—Splash Screen Tab
2. Enter the location of the graphic to use for the splash screen. Use
the browse button to locate the graphic within the PC. Click
Internet Explorer on the Splash Screen tab to view the graphic
through the Internet viewer.
3. Enter the dimension for the graphic’s height and width in twips.
1440 twips = one logical inch
15 twips is typically one pixel
If you enter a low value in this box the screen may be too small
to view.
4. Click OK to save the information in the database.
