Standards and controls – Luminex 100 IS Developer Workbench Guide Version 2.3 User Manual

Page 19

background image

x

MAP

Technology

Create New Product

PN 89-00002-00-084 Rev. B

13

Standards and Controls

‹

To create a product that consists of standards and controls:

1. Click Create Product on the toolbar. The Create New Product

dialog box opens. See Figure 3. Any currently defined products
will be listed at the top of the dialog bo

x

.

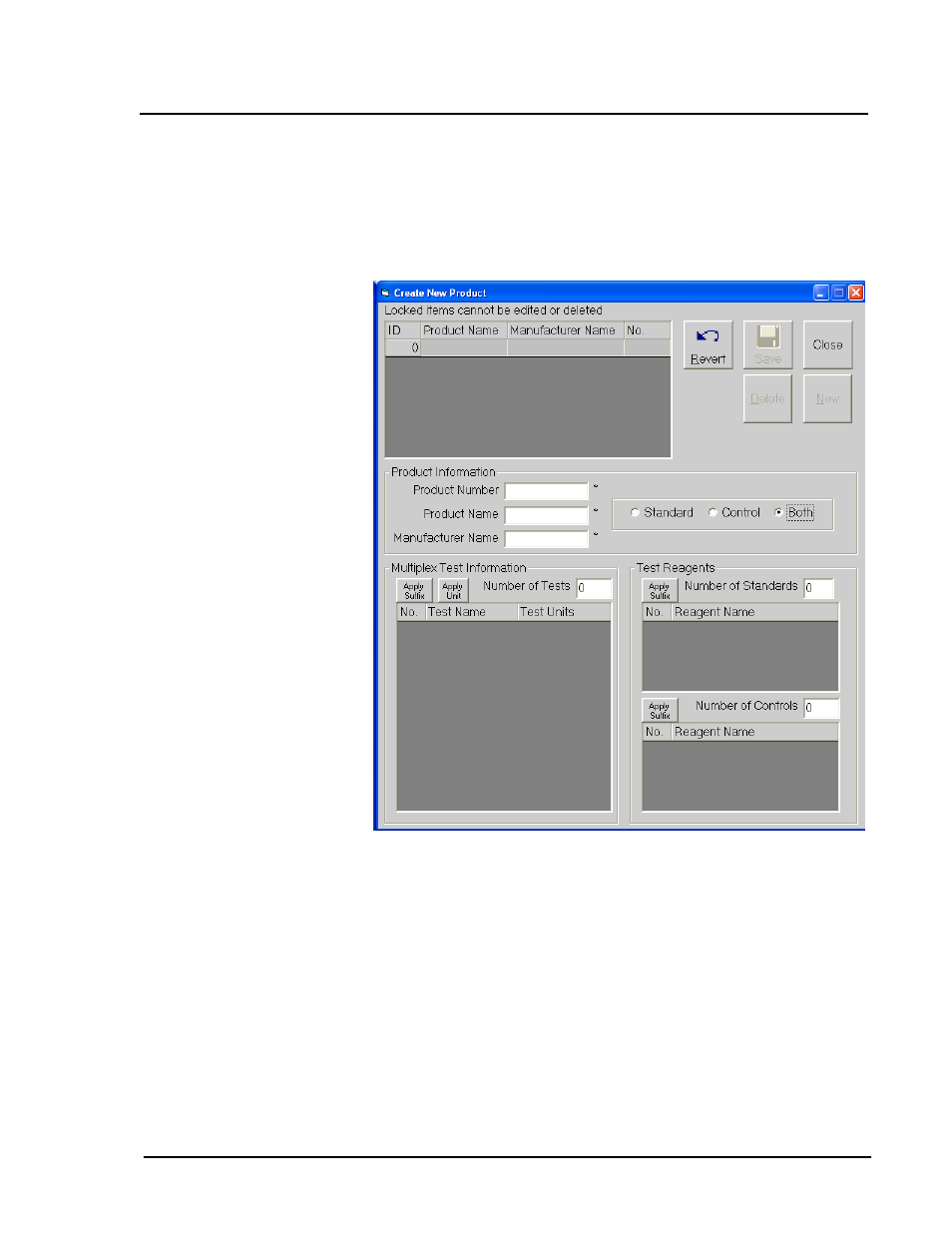

Figure 3. Create New Product Dialog Box—Standards and Controls

2. Click New to enter a new product into the system. The first time

you create a product the New button is grayed out.

3. Select Both.

4. Enter the Product Number, Product Name, and Manufacturer

Name for one of the product.

5. Enter the Number of Tests for this product and press Enter on

the keyboard. Each test represents an analyte (the bead ID for
