Template Maintenance
PN 89-00002-00-084 Rev. B
41
.

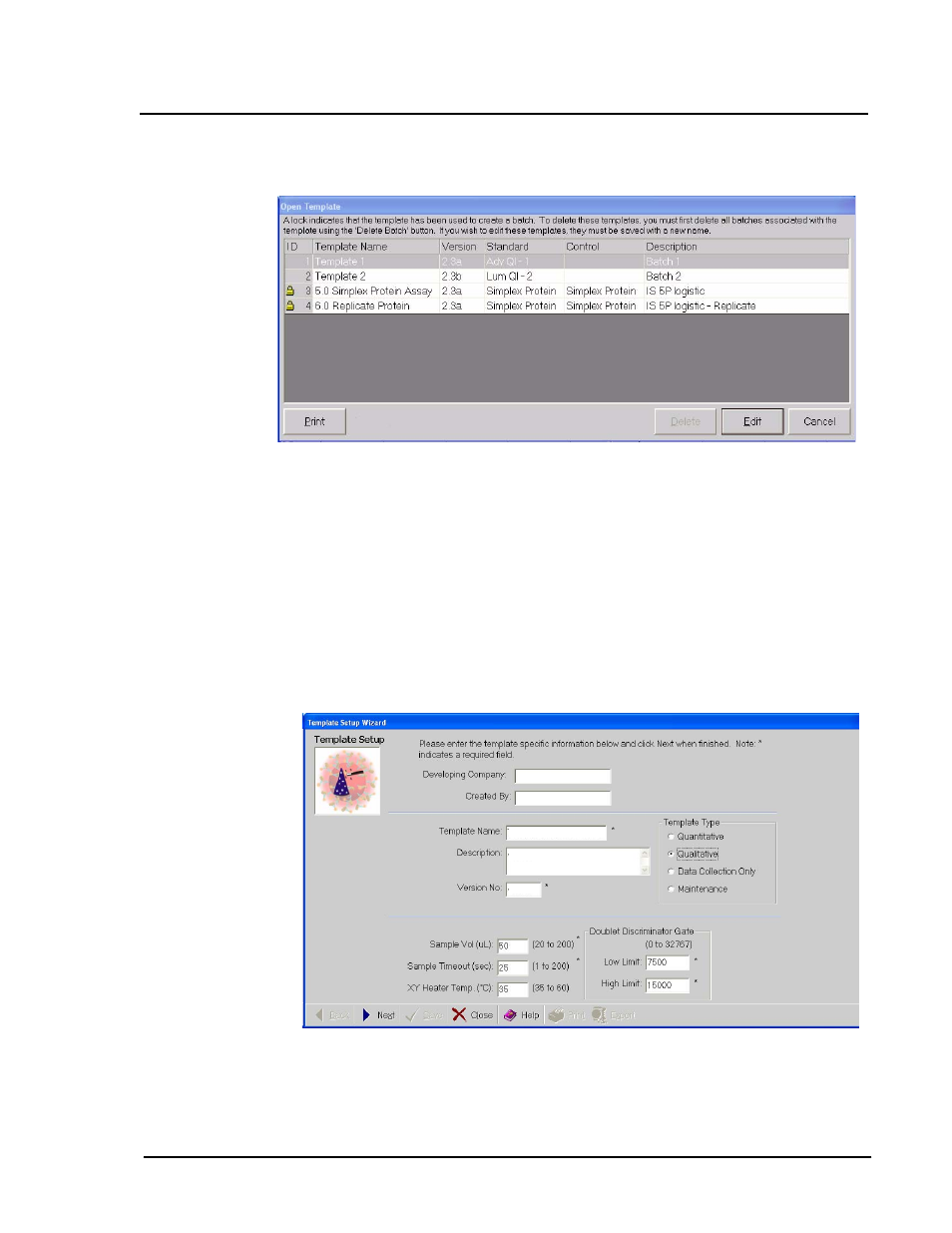

Figure 31. Open Template Dialog Box—Select Template To Print
You can print a template during the creating or editing process once
you save it in the Template Setup wizard.
To print a template during creation or editing:
1. At the Acq. Detail tab, click Edit Template. The Open Template
dialog box opens. See Figure 31.
2. Select the desired template and click Edit. The Template Setup
wizard opens, displaying the current values for the selected
template. See Figure 32.
Figure 32. Template Setup Wizard—Select Template Information
3. Edit the desired data. Click Next. The next Template Setup
Wizard opens. See Figure 33. The Print button is grayed out until
the edits are saved.
Cybergenlabs
Pete B.
Protein Map
Protein, A, B, C
1.23
