Luminex 100 IS Developer Workbench Guide Version 2.3 User Manual
Page 38

Luminex
100 IS Developer Workbench Guide Version 2.3
x
MAP
Technology
32
PN 89-00002-00-084 Rev. B

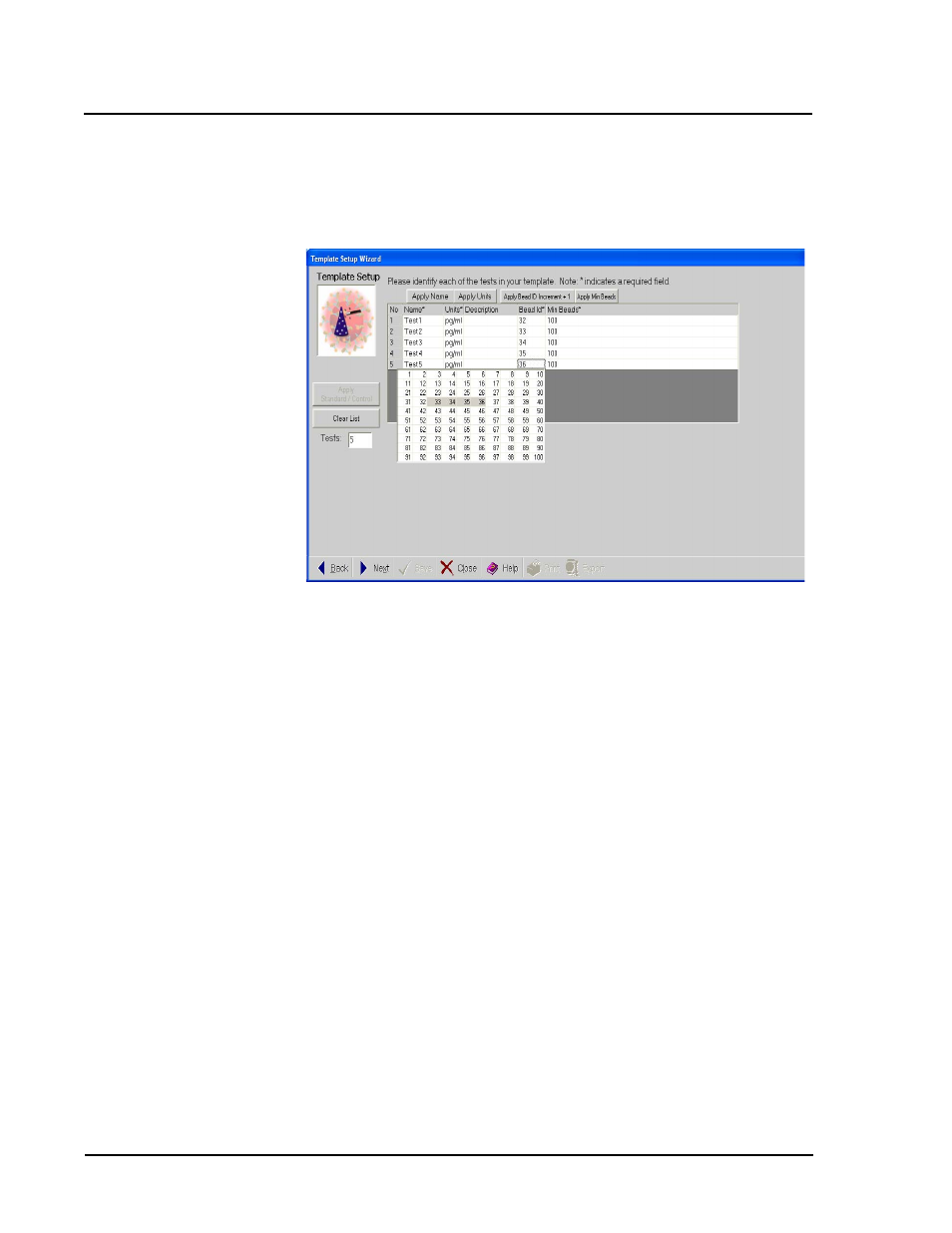

You can also select the first bead ID and click Apply Bead ID
Increment +1 to auto-fill the remaining entries with sequential
bead IDs. See Figure 21.
Figure 21. Select Bead IDs
12. In the Min Beads column, enter the number of beads to collect
for each test. Click Apply Min Beads to apply the same
minimum bead requirement on the first line to all other tests.
13. Click Next to proceed to the Select Template Commands wizard.
See Figure 22.
14. In the Available Commands list, click the desired commands
then click the single right arrow (>) to add them to the Template
Commands list. Type a value in the Repeat box to add multiple
instances of a command. Click the left arrow (<) to remove the
command.
These commands become part of the template and are always
performed in the order specified for any batch that uses this
template. Each well command is automatically assigned to the
next available well. Laboratory personnel running the batch can
not change these commands. Remember that if you have more
than one command that involves the reservoir, those commands
must use the same solution.
For a complete list of command descriptions, see Table 3 on
page 20.
