MAP Technology
Create New Product
PN 89-00002-00-084 Rev. B 11
the button repeats the process. For example, Protein 1 becomes
Protein 11, Protein 2 becomes Protein 12 and so on.
Apply Unit Button—select to apply the same unit value entered
on the first line to all other tests. For example, if mg/mL is
entered for the first Test Unit, then select Apply Unit to make all
tests mg/mL.
7. Enter the Number of Standards for this product and press
Enter on the keyboard.
8. Enter the Reagent Name for each standard in this product. Each
standard reagent must test for every analyte (bead set) used in the
assay.
9. After you are satisfied with your entries, click Save.
10. Click Close.
Controls ‹
To create a product that consists of controls only:
1. Click Create New Product on the toolbar. The Create New
Product dialog box opens. See Figure 2. Any currently defined
products will be listed at the top of the dialog box.

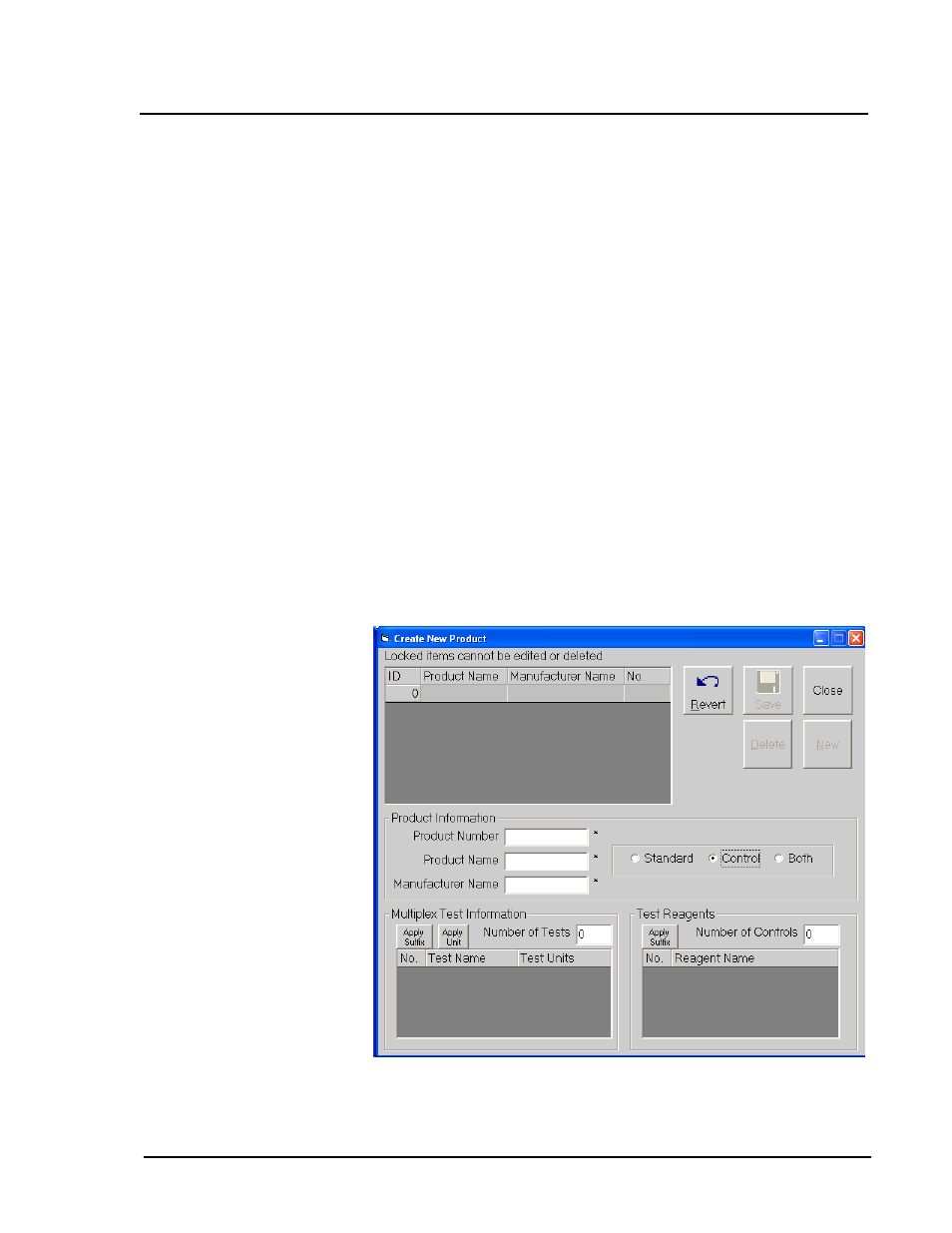

Figure 2. Create New Product Dialog Box—Controls
