93

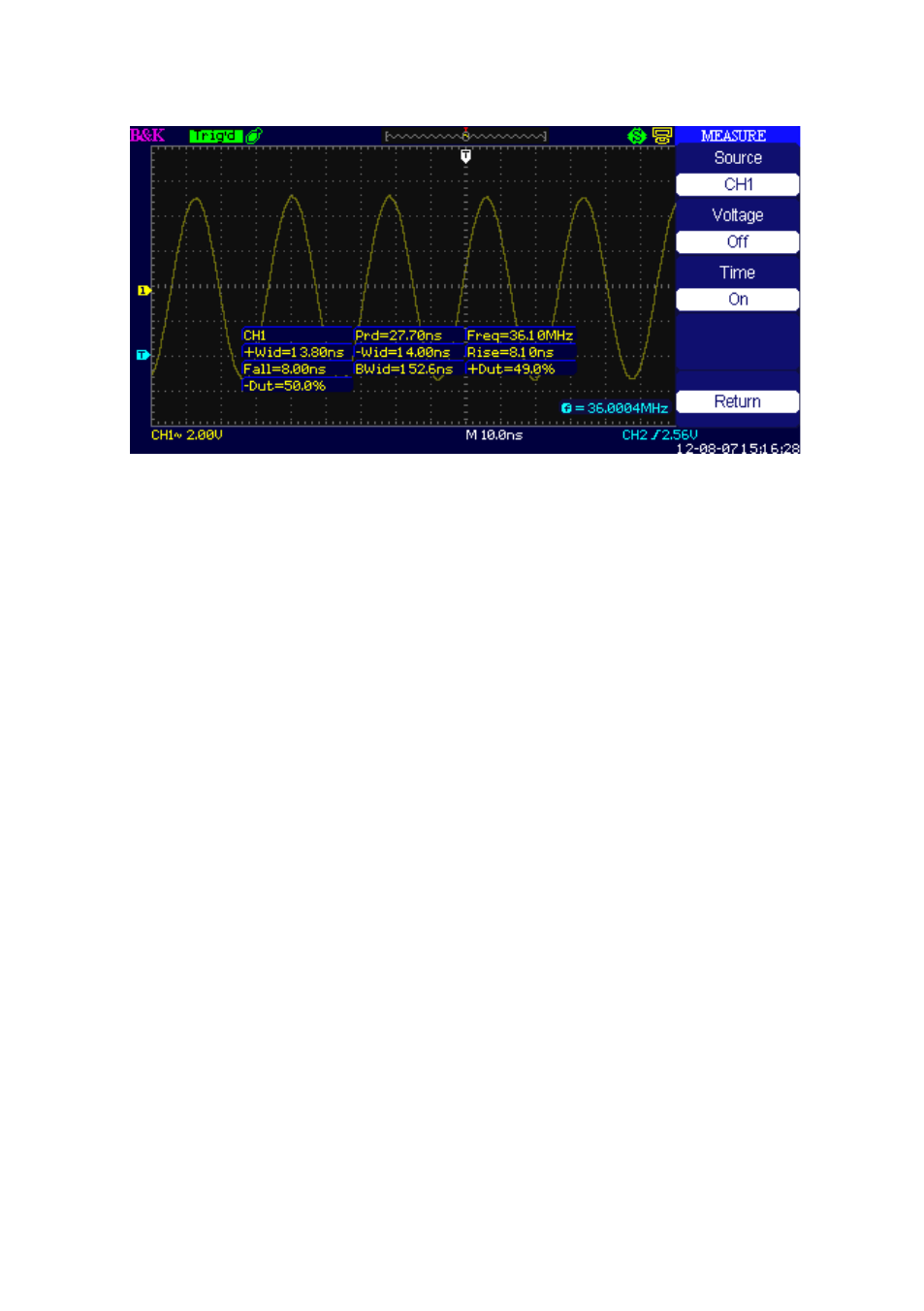

Figure 52 - Measuring Time Parameters
Storage System
Shown below, the “SAVE/RECALL” button enters the “Storage System
Function Menu”.
The scope can save and recall up to 20 instrument settings and 20
waveforms to its internal memory. There is a USB host port on the front
and rear panel of the oscilloscope where you can save setup data, waveform
data, waveform interface image, and CSV file to a USB flash drive. Setup
data and waveform data that are saved to a USB flash drive can be recalled
on the oscilloscope. For picture data and CSV file, a computer must be used
to view them.
• Using SAVE/RECALL Screen
The SAVE/RECALL screen is divided into functions based on
Directories or Files. Directories show option buttons for New
Folder, Del Folder, and Load.
While File shows option buttons for New Folder, Delete File, and
Load.
