Save Waveforms to USB Flash Drive
Table 46 - Save Waveforms to USB Flash Drive Function Menu
Option Setup Description
Type Waveforms Menu for the Storage/Recall
waveforms.
Save to File Select save location to USB flash
drive.
Save Select to save to USB.

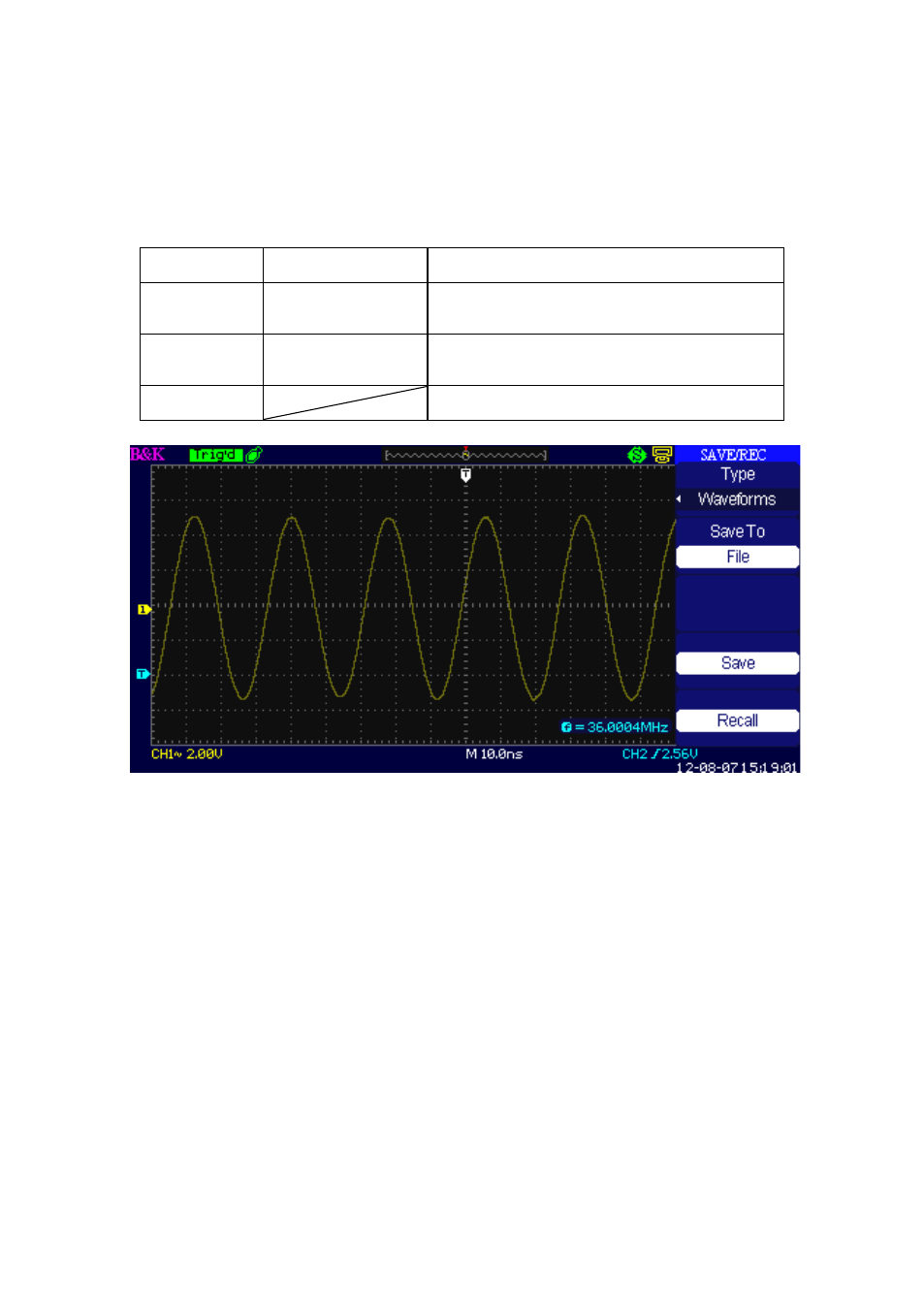

Figure 61 - Save Waveforms Screen
To save waveforms to a USB flash drive, follow the steps below:
1. Input a sine signal to channel 1, press the “AUTO” button.
2. Press the “SAVE/RECALL” button to enter the
“SAVE/RECALL” display menu.
3. Press the “Type” option button to select “Waveforms”.
4. Insert a USB flash drive to the front or rear USB host port of the
oscilloscope and wait until the oscilloscope has initialized USB
flash drive (about five seconds).
5. Press the “Save to” option button to select “File”.
6. Press the “Save” option button then you’ll go into the Save/Recall
interface.
7. Create a file then press the “Confirm” button (about five seconds,
