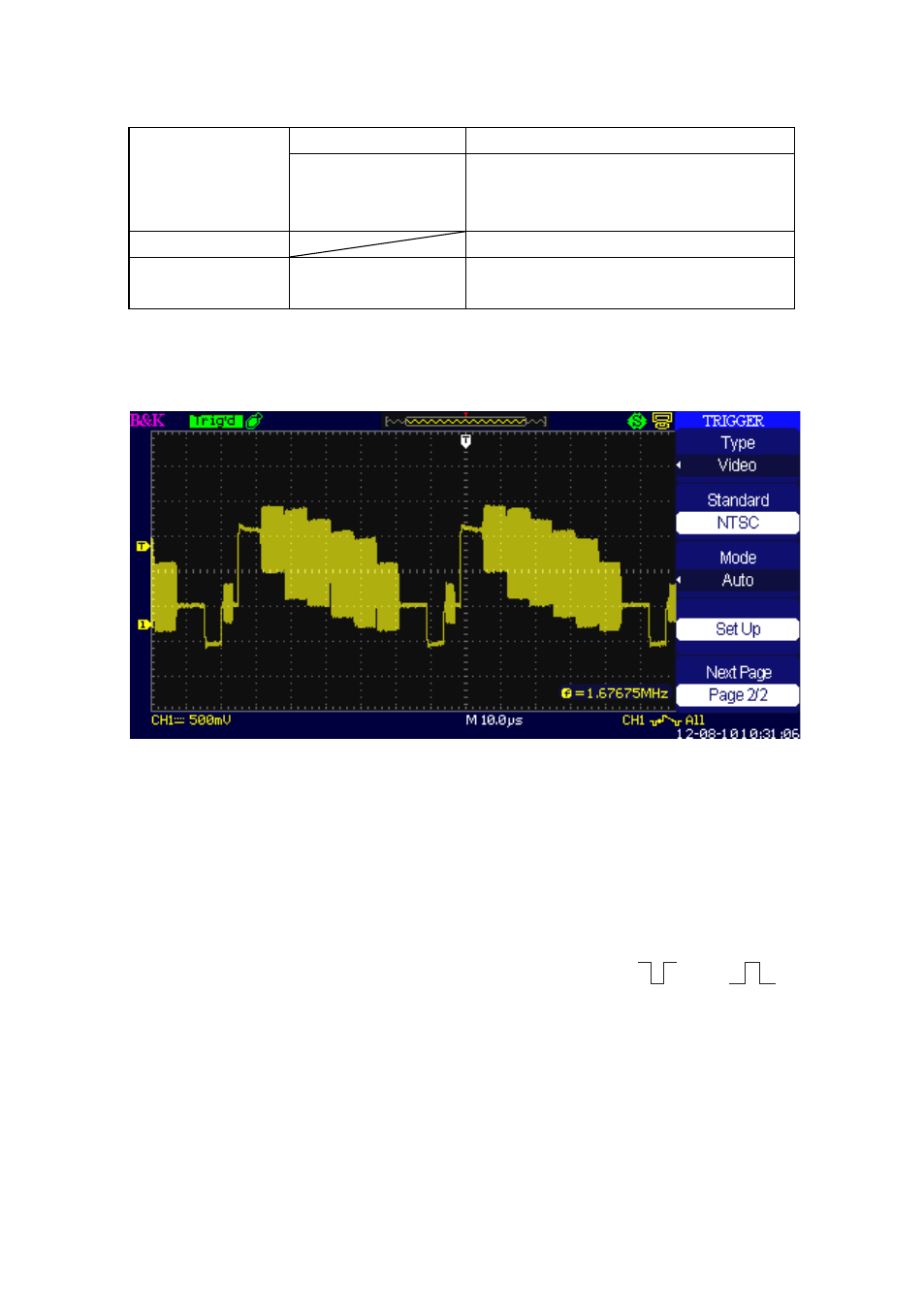

Figure 33 - Video Trigger Menu 2
Operating Instructions:
Set up Type
1. Press the “TRIG MENU” button to display “Trigger” menu.
2. Press the “Type” option button to select “Video”.
Set up Polarity
1. Press the “Polarity” option button to select “ ” or “ ”.
Set up Synchronization
1. Press the “Sync” option button to select “All Lines”, “Line
Num”, “Odd Field”, and “Even Field”.
2. If you select “Line Num”, you can turn the “Universal” knob
to set the appointed line number.
Set up Standard
1. Press the “next Page Page2/2” option button.
first trigger.
Single When you want the oscilloscope
to acquire a single waveform,
press the “SINGLE” button.
Set up Enter the “Trigger setup menu”.
Next Page
Page 2/2 Return to the first page of “Video
Trigger menu”.
