101

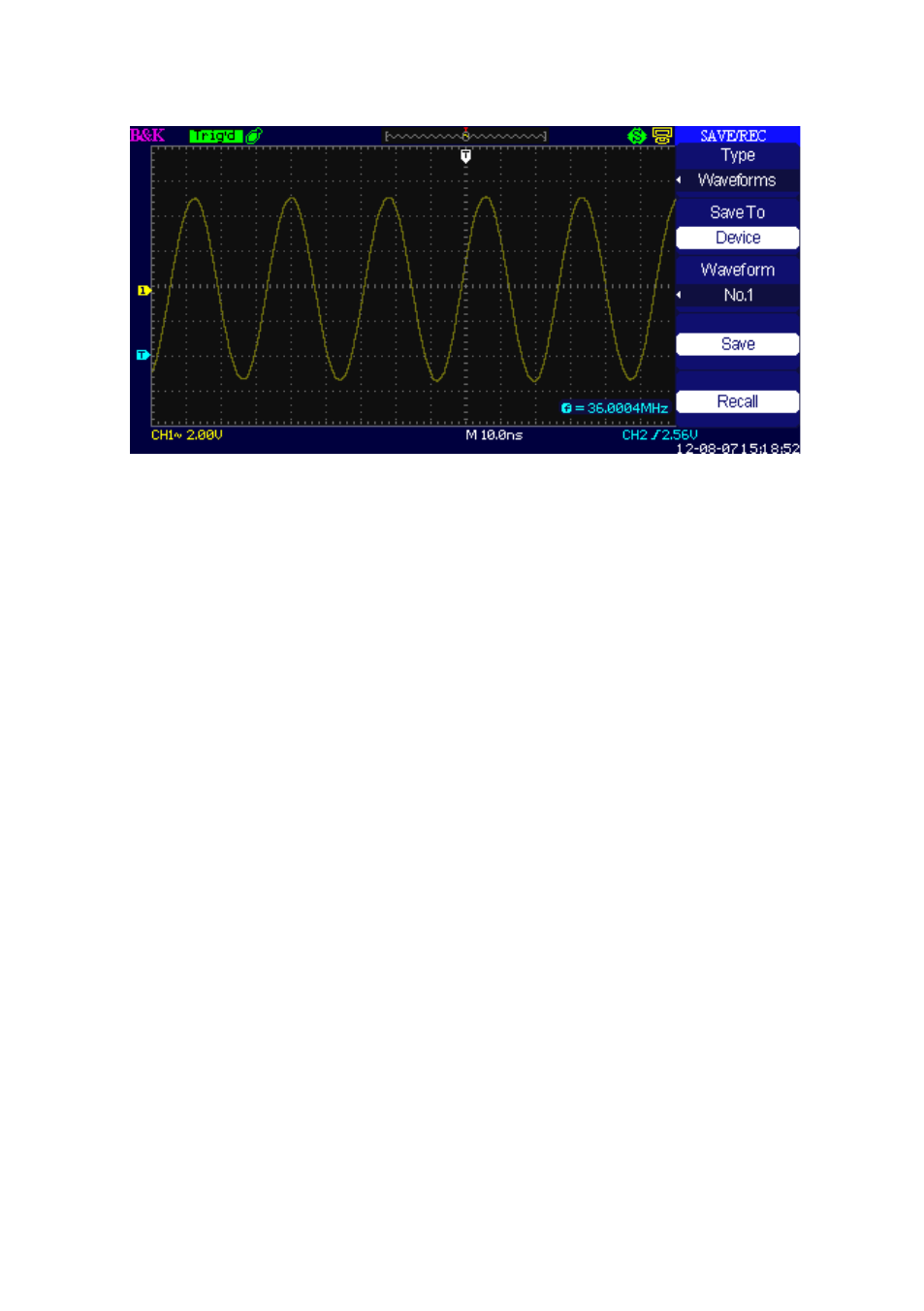

Figure 60 - Save Waveform Menu Screen
To save waveforms in internal memory, follow the steps below:
1. Input a sine signal to channel 1 and press the “Auto” button.
2. Press the “SAVE/RECALL” button to enter “SAVE/RECALL”
display menu.
3. Press the “Type” option button to select “Waveforms”.
4. Press the “Save to” option button to select “Device”.
5. Press the “Waveform” option button or turn the “Universal” knob
to select “No.1”.
6. Turn the “Volts/div” knob or “Time/div” knob to adjust the
waveform that you want.
7. Press the “Save” option button.
To recall waveforms, follow the steps below:
1. Press the “SAVE/RECALL” button to enter “SAVE/RECALL”
display menu.
2. Press the “Type” option button to select “Waveforms”.
3. Press the “Save to” option button to select “Device”.
4. Press the “Waveform” option button or turn the “Universal” knob
to select “No.1”.
5. Press the “Recall” option button.
