5. Press the “Type” option button to select “Vpp”.
The corresponding icon and measure value will display on the third option
area.
Measuring Ring Frequency
To measure the ring frequency at the rising edge of a signal, follow these
steps:
1. Press the “CURSORS” button to see the “Cursor Menu”.
2. Press the “Mode” button to select “Manual”.
3. Press the “Type” option button and select “Time”.
4. Press the “Source” option button and select“CH1”.
5. Press the “CurA” button and turn the universal knob to place
the cursor A on one peak of the ring.
6. Press the “Cur B” button and turn the universal knob to place
the cursor B on the nearest peak of the ring.
You can see the delta time and frequency (the measured ring frequency) on
the top left of the screen.

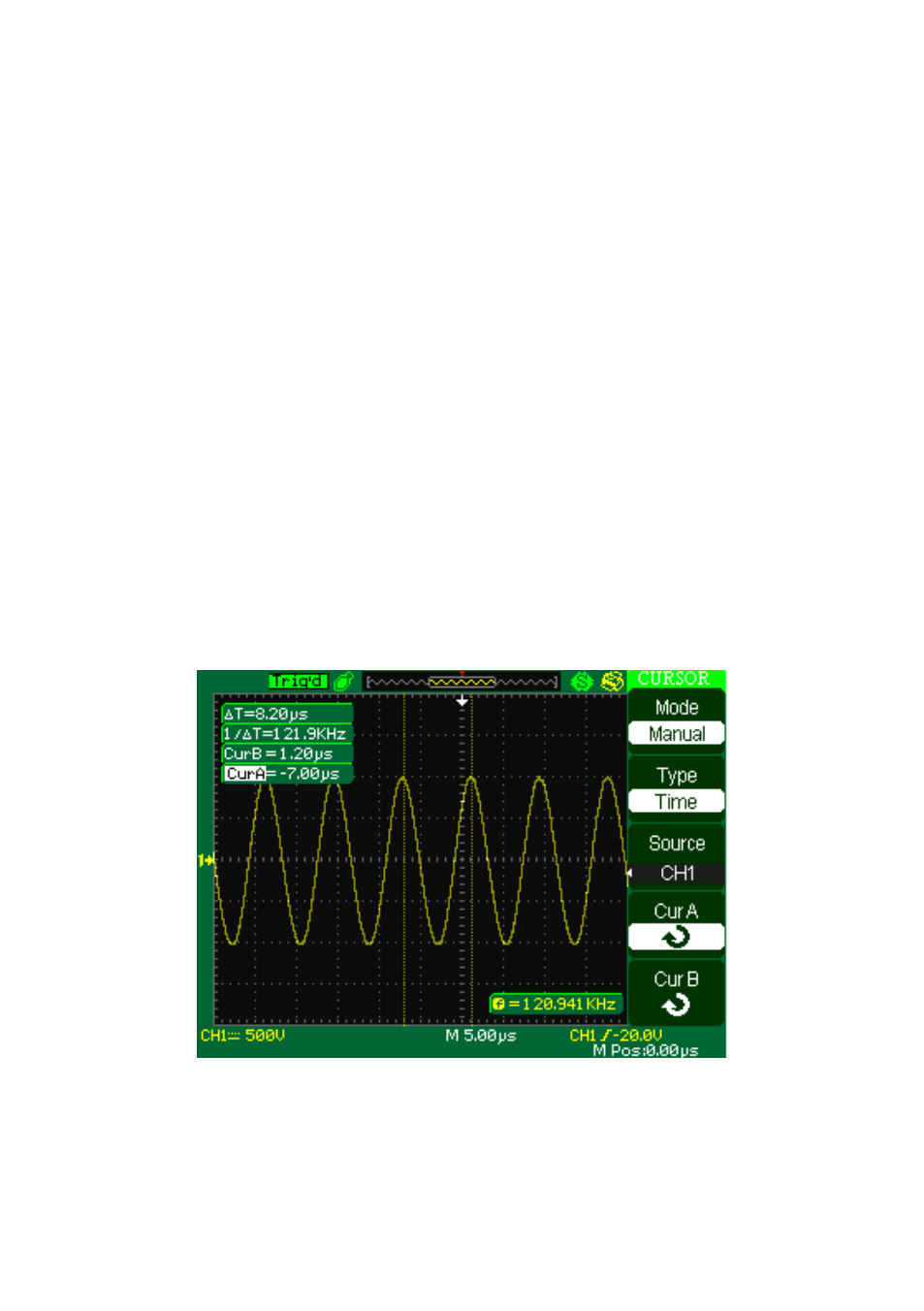

Figure 83 - Cursor Menu Screen 1
