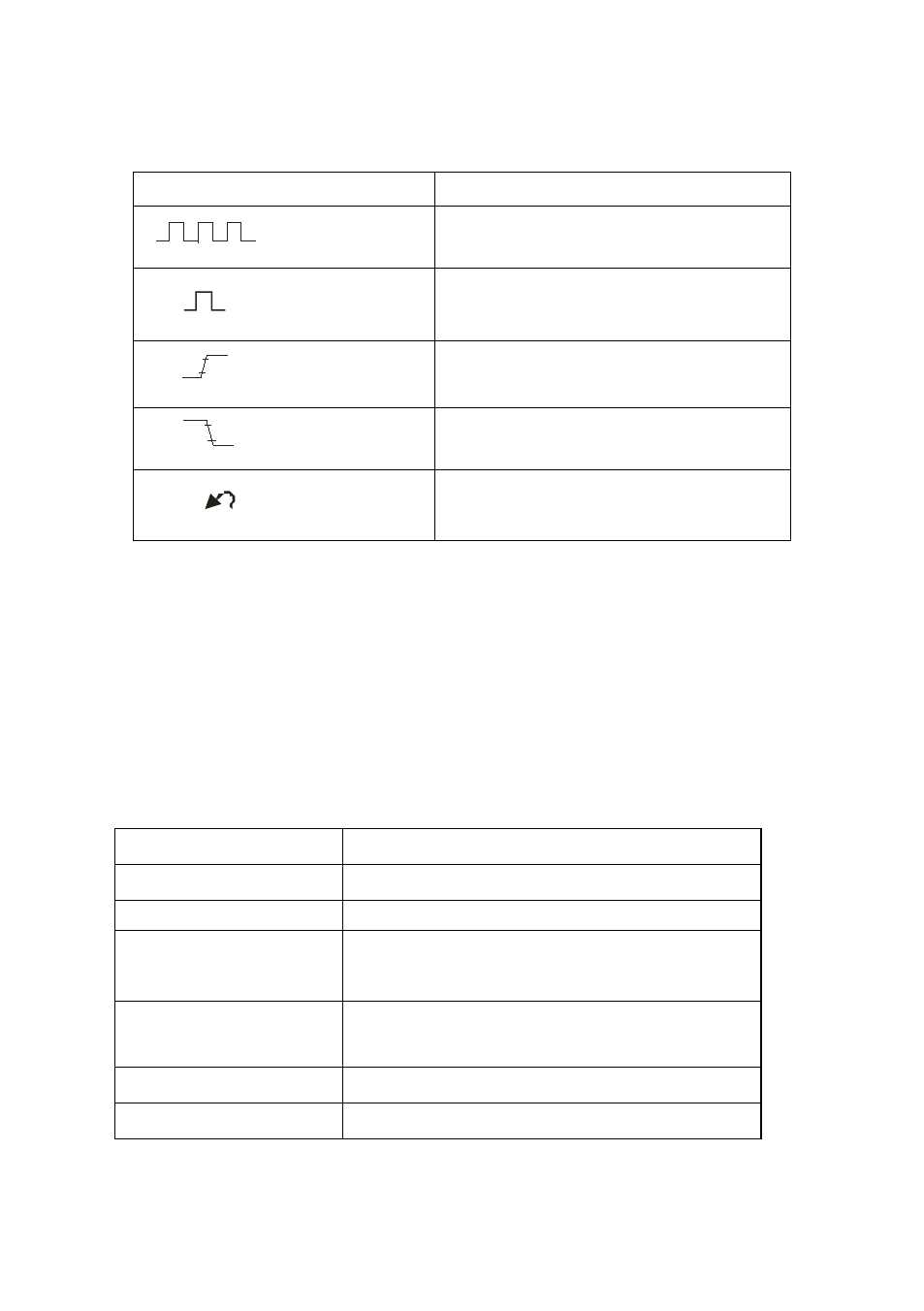

Table 1 - Autoset Menu
Option
Description
(Multi-cycle sine)
Auto set the screen and display
multi-cycle signal.
(Single-cycle sine)
Set the screen and auto display single
cycle signal.
(Rising edge)
Auto set and show the rising time.
(Falling edge)
Auto set and show the falling time.
(Undo Setup)
Causes the oscilloscope to recall the
previous setup.
Auto set determines the trigger source based on the following conditions:
•
If multiple channels have signals, the channel with the lowest
frequency signal.
•
No signals found, the lowest-numbered channel displayed when
Auto set was invoked
•
No signals found and no channels displayed, oscilloscope displays
and uses channel 1.
Table 2 - Autoset Function Menu Items
Function
Setting
Acquire Mode
Adjusted to Sampling
Display Format
Y-T
Display Type
Set to Dots for a video signal, set to Vectors
for an FFT spectrum; otherwise, unchanged
Vertical Coupling
Adjusted to DC or AC according to the
input signal
Bandwidth Limit
Off(full)
V/div
Adjusted
