88

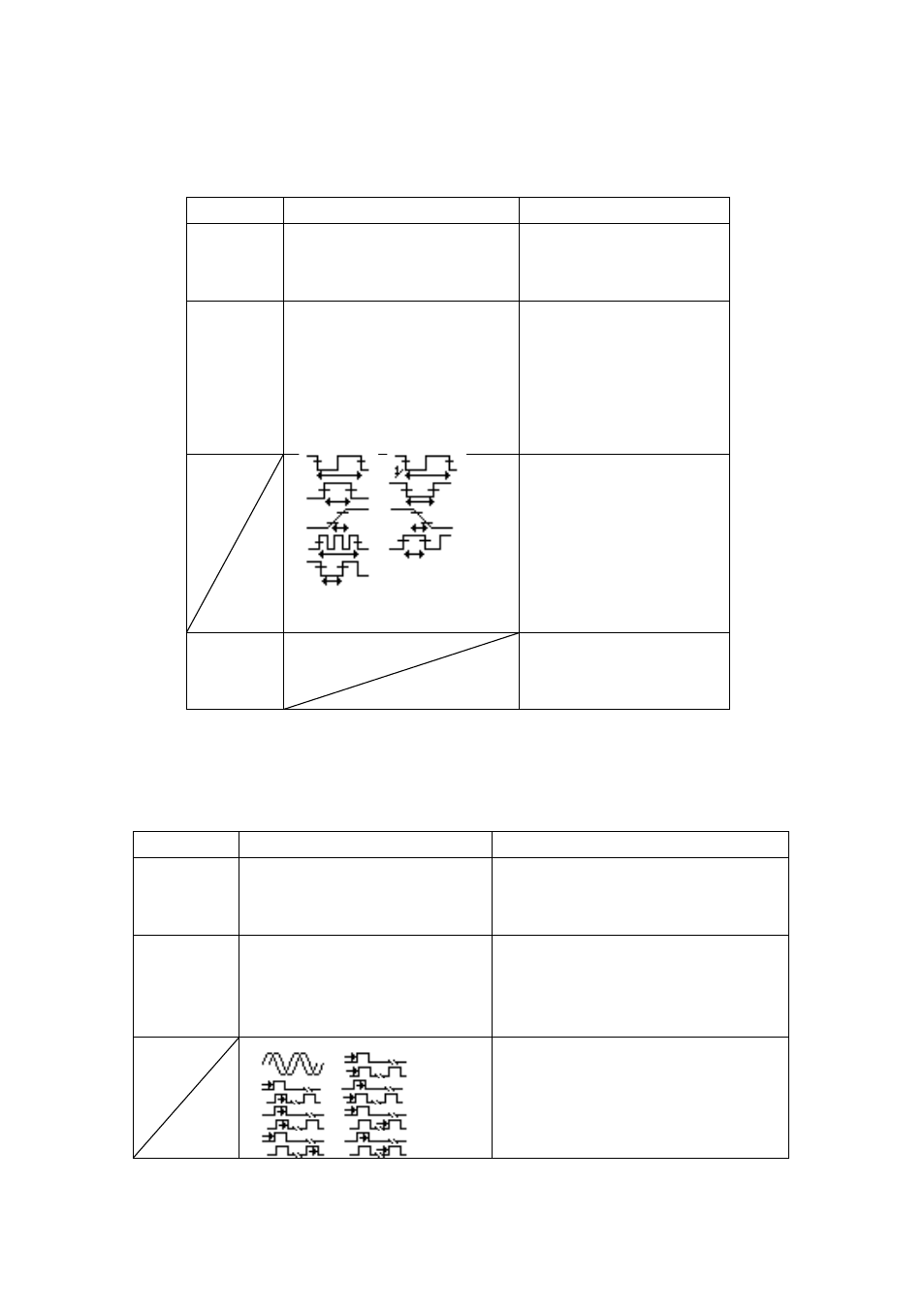

Table 38 - Auto Measurement Function 3 - Time Measurement Menu
Option Setting Description
Source CH1, CH2, *CH3,
*CH4
Select input signal
source for Time
measurement.
Type Freq, Period, +Width, -
Width, Rise Time, Fall
Time, BWidth, +Duty,
-Duty
Press the “Type”
button or turn the
“Universal” knob to
select Time
measurement
parameter.
Display the
corresponding icon
and measurement
value of your
selected time
measurement
parameter.
Return Return to the first
page of auto
measurement menu.
Table 39 - Auto Measurement Function 4 - Delay Measurement Menu
Option Setting Description
Source CHX - CHY Select any two input signal
source for Delay
measurement.
Type Phase, FRR, FRF, FFR,
FFF, LRR, LRF, LFR,
LFF
Press the “Type” button or
turn the “Universal” knob to
select Delay measurement
parameter.
Display the corresponding
icon and measure value of
your selected Delay
measurement parameter.
