34
• Press CH1”→ Volts/Div”→ Fine”. This setting changes the
vertical control to small steps between the coarse settings. It will
be helpful when you need to adjust the waveform vertical size in
smaller steps.
4. Setting Probe Attenuation
In order to set the attenuation coefficient, you need to specify it in the
channel operation Menu. If the attenuation coefficient is 10:1, the
input coefficient should be set to 10X, so that the Volts/div
information and measurement testing is correct.
Take CH1 for example, when you use the 100:1 probe:
• Press“CH1”→“Probe” →“100X”

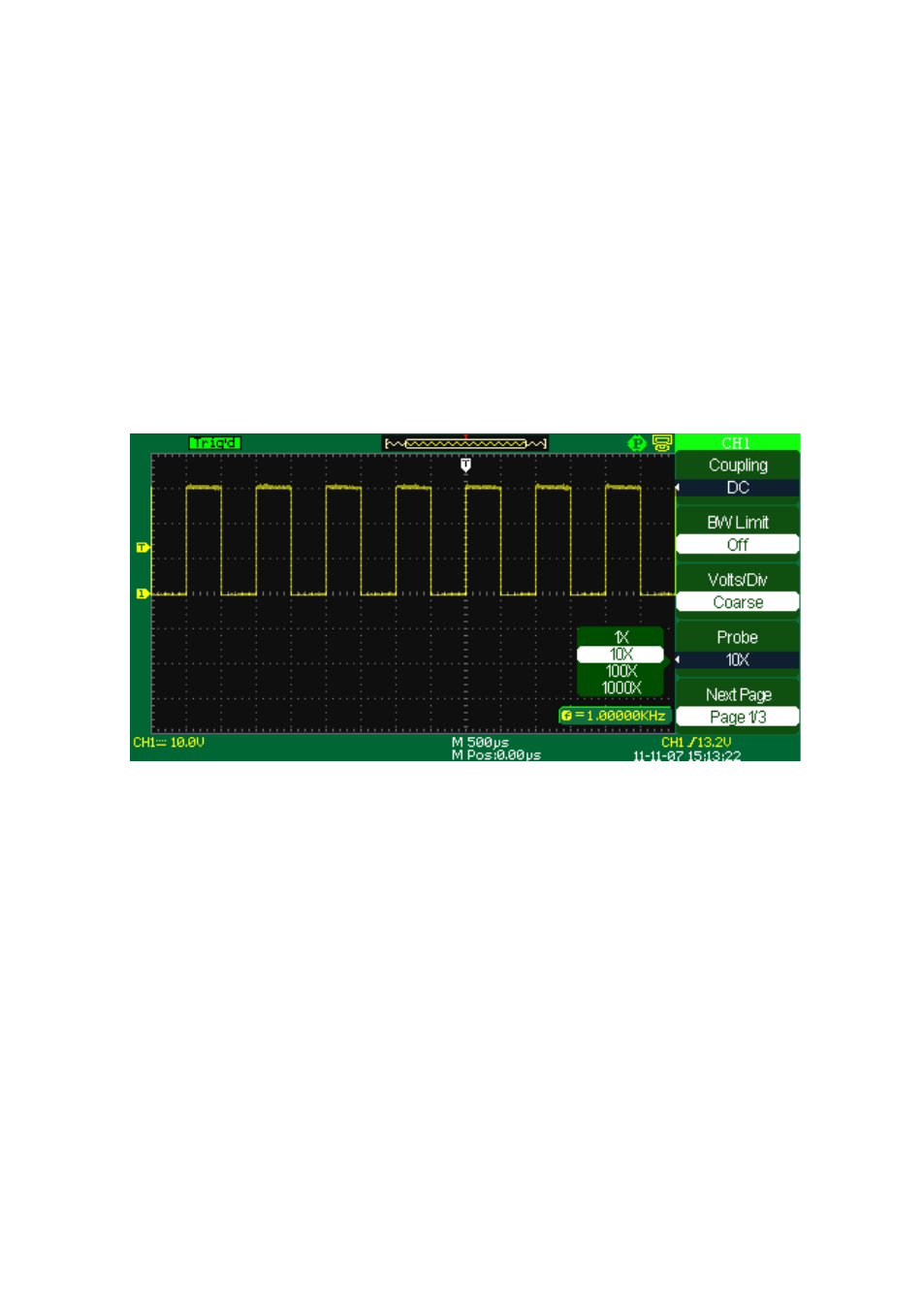

Figure 19 - Setting Probe Attenuation
5. Inverting waveforms
Take CH1 for example:
• Press“CH1”→”Next Page page 1/2” →“Invert”→“On”:
