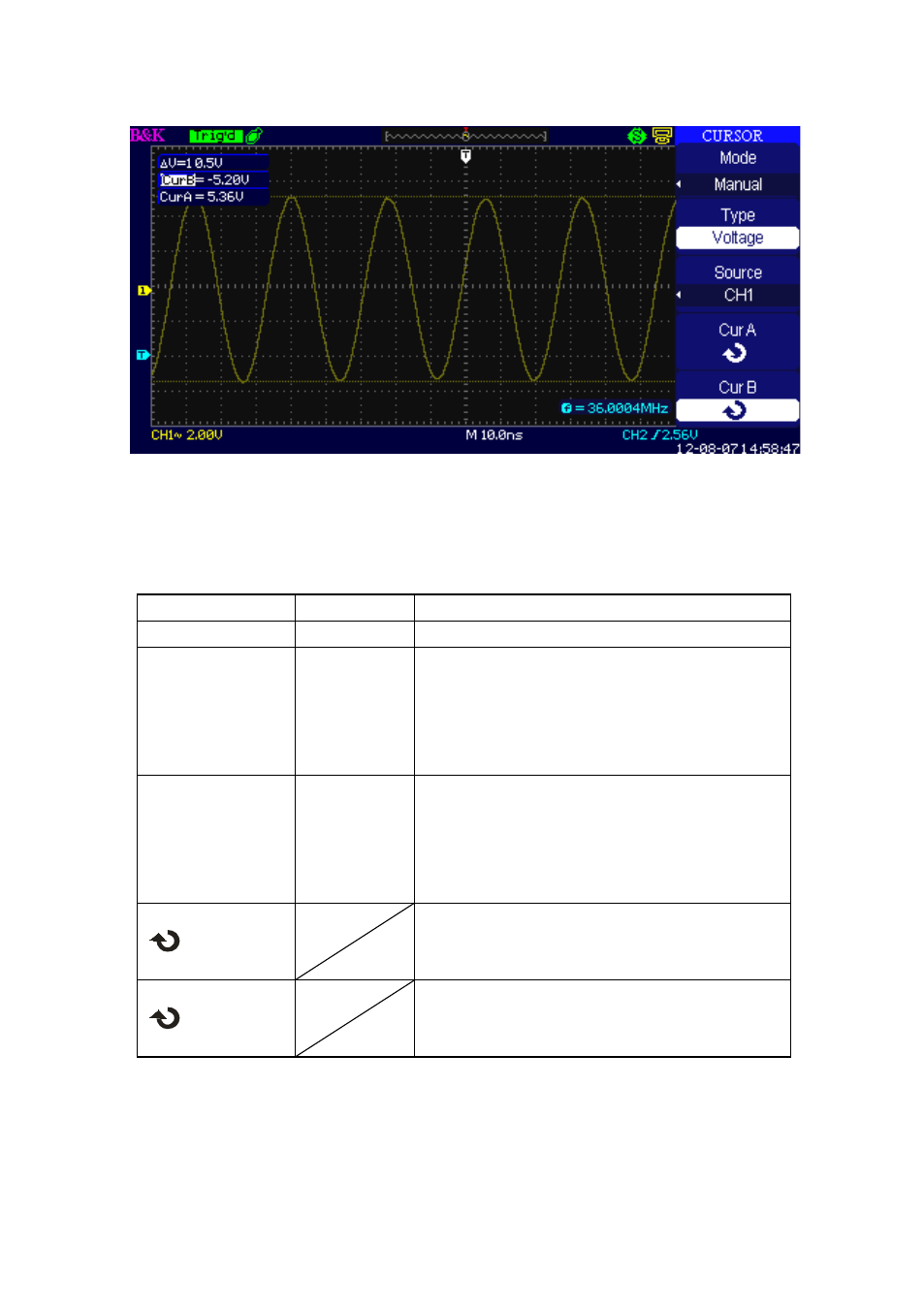

Figure 48 - Cursor Menu

Track Mode

Table 34- Track Mode Function Menu

Option

Setting

Description

Cursor Mode

Track

In this mode, set track cursor measure.

Cursor A

CH1

CH2

*CH3

*CH4

NONE

Set the input signal channel that the

Cursor A will measure.

Cursor B

CH1

CH2

*CH3

*CH4

NONE

Set the input signal channel that the

Cursor B will measure.

Cur A

Select this option, turn the “Universal”

knob to adjust horizontal coordinate of

Cursor A.

Cur B

Select this option, turn the “Universal”

knob to adjust horizontal coordinate of

Cursor B.

*Available for 4CH models only.

In this mode, the screen displays two cross cursors. The cross cursor sets

the position on the waveform automatically. You could adjust the cursor’s
