Table 17 - Pulse Trigger Function Menu 2
Option Setting Description
Type Pulse Select the pulse to trigger the pulse
matching the trigger condition.
Mode Auto
Normal
single
Select the type of triggering. Normal
mode is best for most Pulse Width
trigger applications.
Set up Enter the “Trigger setup menu”.
Next Page Page 2/2 Press this button to return to the first
page.

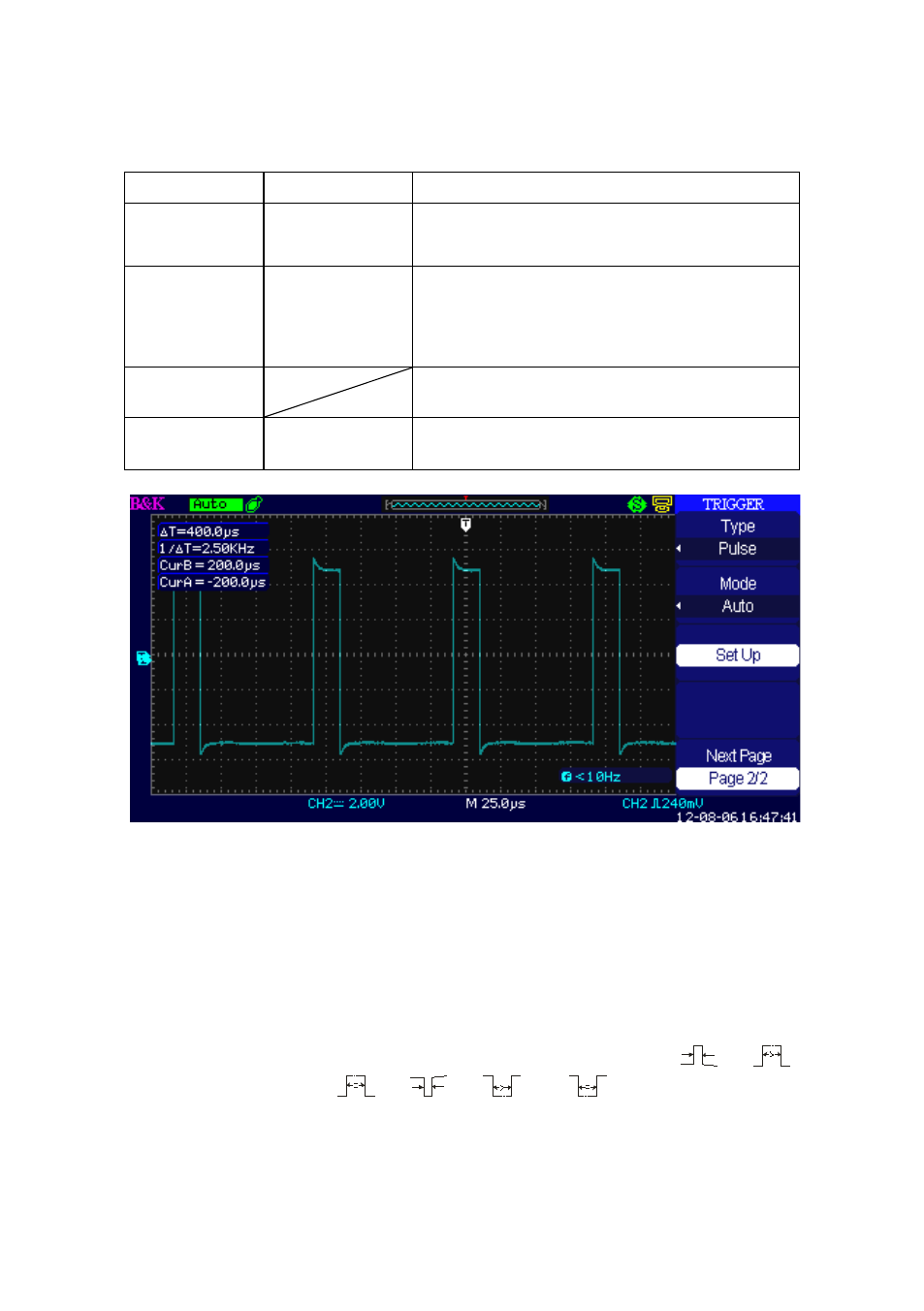

Figure 31 - Pulse Trigger Menu 2
Operating Instructions:
1. Set up Type
- Press the “TRIG MENU” button to display “Trigger
menu”.
- Press the “Type” option button to select “Pulse”.
2. Set up condition
Press the “When” option button to select “ ”, “
”, “ ”, “ ”, “ ”or “ ”.
3. Set up pulse width
Turn the “Universal” knob to set up width.
