88

746-257-B5-001, Rev. A1 (11/2013)

The CPE Transponder IP can be assigned its IP, Subnet Mask and Gateway Addresses via a DHCP

server.

13.0 Dual IP Mode (Addendum), continued

13.3 Configuring Dual IP Mode

To switch the IDH4 Series transponder from Single to Dual IP mode the atiMgmtSnmpSnmpCPEAccess

parameter of the Alpha MIB will need to be enabled. The Dual IP enable setting can be set through

the DOCSIS Configuration file, the IDH4 Setup File (idhdoc04.cfg), the Provisioning Mode via the

Communications Web page or remotely using SNMP by setting the following Alpha MIB:

MIB Parameter

Object ID

Description

Value

atiMgmtSnmpSnmpCPEAccess 1.3.6.1.4.1.926.1.3.1.3.6.0 Enables/Disables the

CPE Interface

1=Disabled (Single IP)

2=Enabled (Dual IP)

Table 13-2, Enabling Dual IP mode

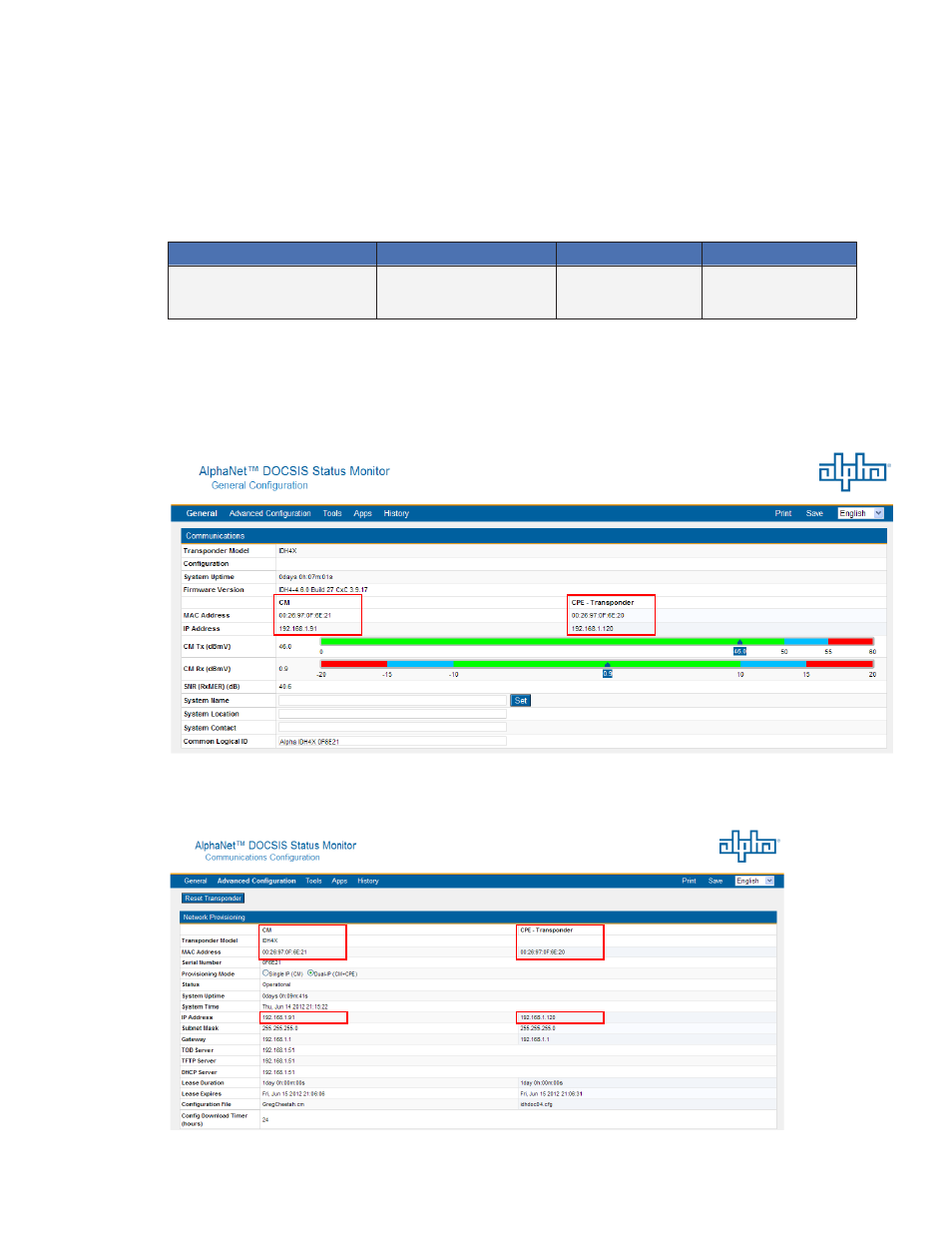

Fig. 13-5, Dual IP Configuration Settings on the Communications Page of IDH4 Web Server

Fig. 13-6, Dual IP Parameters on the General Page of IDH4 Web Server
