4.0 Web Interface, continued
4.16 RF Constellation Page
Select the
Tools menu to access the Constellation page. Click the Constellation menu item to view the
Constellation display for the DOCSIS channel. The page will automatically refresh until the updates
remaining counter reaches 0. Clicking the Run button restarts the automatic refresh, and clicking the
Stop
button stops it.

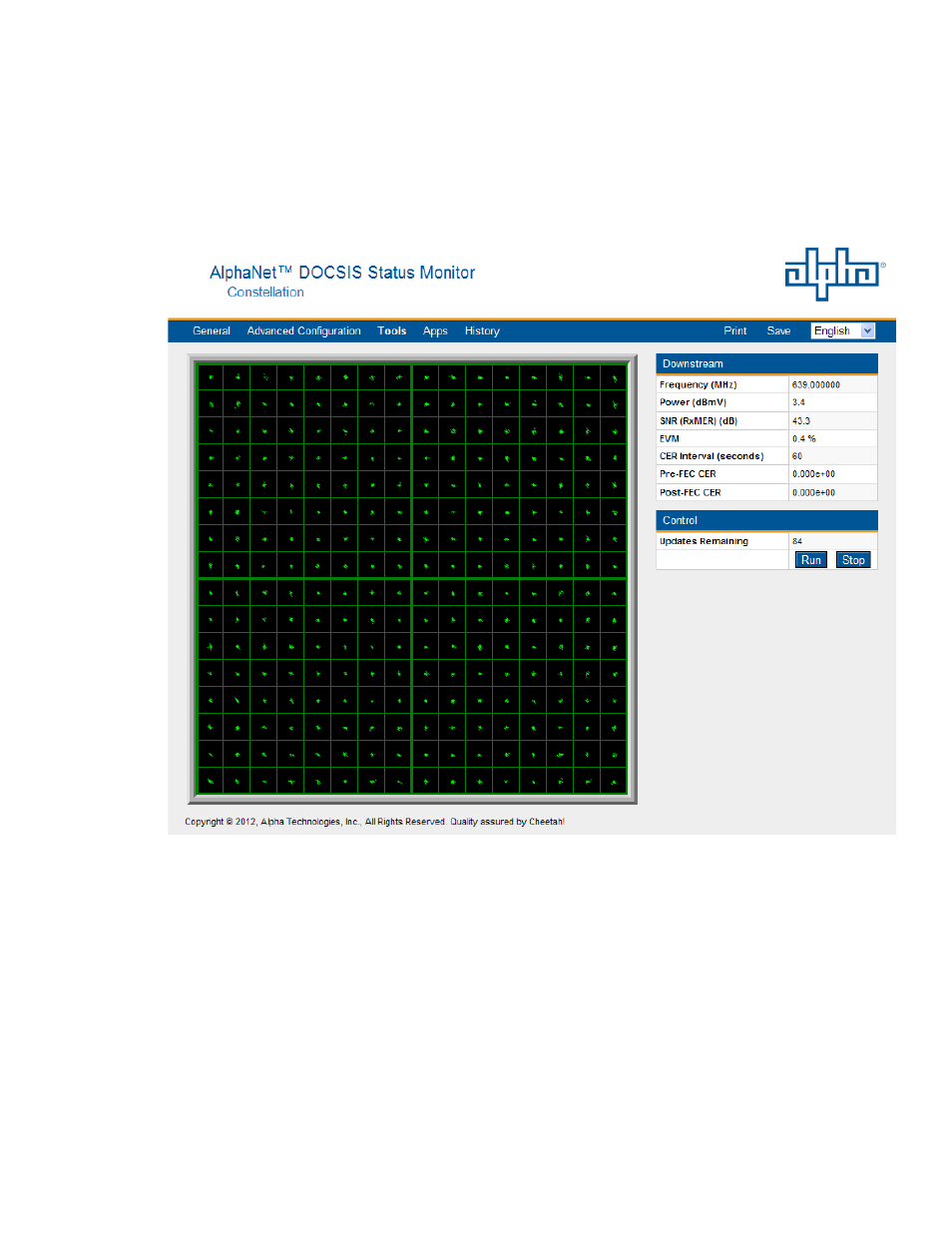

Fig. 4-25, RF Constellation Page
