29

746-257-B5-001, Rev. A1 (11/2013)

4.9

Viewing and Configuring Power Supply Settings via the Web Page

Connected power supply parameters may be viewed by clicking on the Advanced Configuration heading,

and selecting Power Supplies from the drop down list. The power supply parameters with a box or a drop

down menu around the value can be edited for specific configurations. Power supply Self Tests may

be remotely started by clicking on the

Start Test button. When prompted, refer to Section 4.3.1, Web

Interface Security Levels for the applicable User Name and Password.

4.0 Web Interface, continued

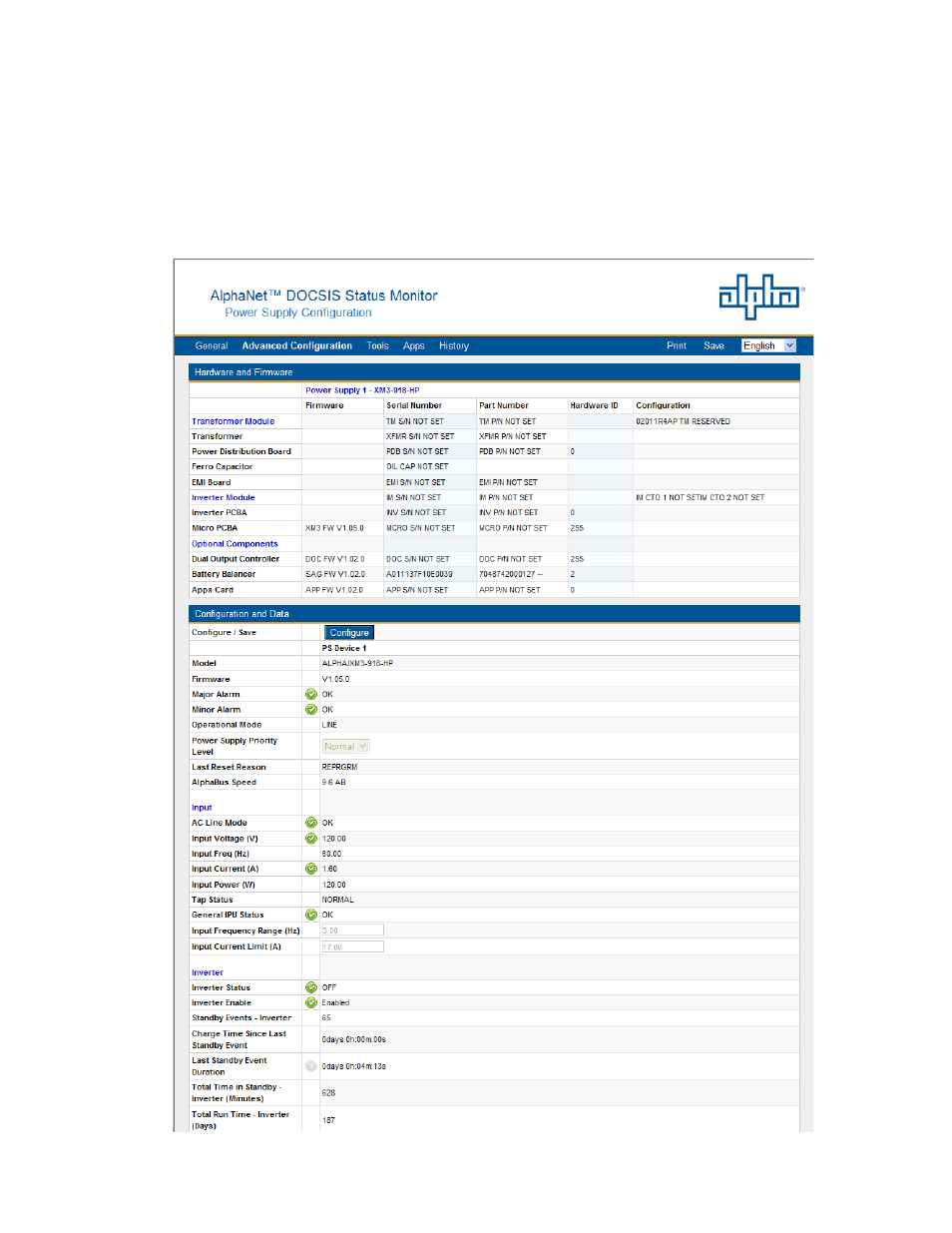

Fig. 4-15, Advanced Power Supply Settings Screen

(data values shown for illustration purposes only)
